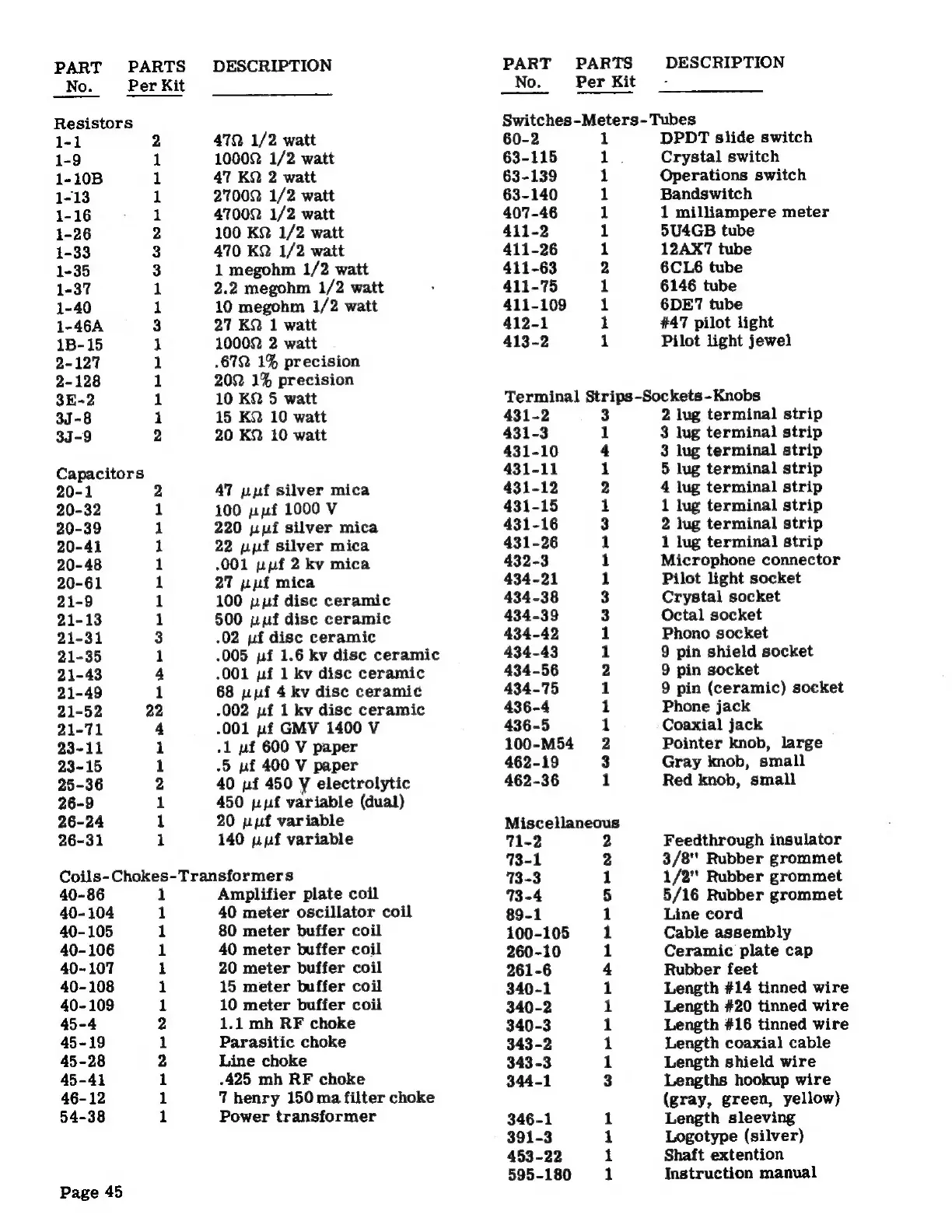

PART PARTS
No. Per Kit
Resistors
1-1
1-9
1-10B
1-13
1-16
1-26
1-33
1-35
1-37
1-40
1-46A
1B-15
2-127
2-128
3E-2
3J-8
33-9
Capacitors
20-1
20-32
20-39
20-41
20-48
20-61
21-9
21-13
21-31
21-35
21-43
21-49
21-52
21-71
23-11
23-15
25-36
26-9
26-24
26-31
ee ee et oe)
a el el ol
DESCRIPTION
470 1/2 watt
10002 1/2 watt
47 KQ 2 wait
27002 1/2 watt
47002 1/2 watt
100 K& 1/2 watt
470 KQ 1/2 watt
1 megohm 1/2 watt
2.2 megohm 1/2 watt
10 megohm 1/2 watt
27 KQ 1 watt
10002 2 watt
.672 1% precision
202 1% precision
10 KQ 5 watt
15 KQ 10 watt
20 KQ 10 watt
47 wuf silver mica
100 pf 1000 V
220 wyuf silver mica
22 wut silver mica
.001 uf 2 kv mica
27 wpt mica
100 pyf disc ceramic
500 put disc ceramic
-02 pf disc ceramic
.005 pf 1.6 kv disc ceramic
-001 pf 1 kv disc ceramic
68 pu 4 kv disc ceramic
-002 pf 1 kv disc ceramic
-001 pf GMV 1400 V
.1 uf 600 V paper
-5 pf 400 V paper
40 uf 450 V electrolytic
450 pyf variable (dual)
20 uuf variable
140 wyf variable
Coils-Chokes-Transformers
40-86
40-104
40-105
40-106
40-107
40-108
40-109
45-4
45-19
45-28
45-41
46-12
54-38
Page 45
Ce ol el
Amplifier plate coil
40 meter oscillator coil
80 meter buffer coil
40 meter buffer coil
20 meter buffer coil
15 meter buffer coil
10 meter buffer coil
1.1 mh RF choke
Parasitic choke
Line choke
.425 mh RF choke
T henry 150 ma filter choke
Power transformer
PART PARTS DESCRIPTION
No. Per Kit
Switches-Meters- Tubes
60-2 1 DPDT slide switch
63-115 1 Crystal switch
63-139 1 Operations switch
63-140 1 Bandswitch
407-46 1 1 milliampere meter
411-2 1 5U4GB tube
411-26 1 12AX7 tube
411-63 2 6CL6 tube
411-75 1 6146 tube
411-109 1 6DE7 tube
412-1 1 #47 pilot light
413-2 1 Pilot light jewel
Terminal Strips-Sockets-Knobs
431-2 3 2 lug terminal strip
431-3 1 3 lug terminal strip
431-10 4 3 lug terminal strip
431-11 1 5 lug terminal strip
431-12 2 4 lug terminal strip
431-15 1 1 lug terminal strip
431-16 3 2 lug terminal strip
431-26 1 1 lug terminal strip
432-3 1 Microphone connector
434-21 1 Pilot light socket
434-38 3 Crystal socket
434-39 3 Octal socket
434-42 1 Phono socket
434-43 1 9 pin shield socket
434-56 2 9 pin socket
434-75 1 9 pin (ceramic) socket
436-4 1 Phone jack
436-5 1 Coaxial jack
100-M54 2 Pointer knob, large
462-19 3 Gray knob, small
462-36 1 Red knob, small
Miscellaneous
71-2 2 Feedthrough insulator
13-1 2 3/8" Rubber grommet
73-3 1 1/2" Rubber grommet
13-4 5 5/16 Rubber grommet
89-1 1 Line cord
100-105 1 Cable assembly
260-10 pf Ceramic plate cap
261-6 4 Rubber feet
340-1 1 Length #14 tinned wire
340-2 1 Length #20 tinned wire
340-3 1 Length #16 tinned wire
343-2 1 Length coaxial cable
343-3 1 Length shield wire
344-1 3 Lengths hookup wire
(gray, green, yellow)
346-1 1 Length sleeving
391-3 i Logotype (silver)
453-22 1 Shaft extention
595-180
1
Instruction
manual
