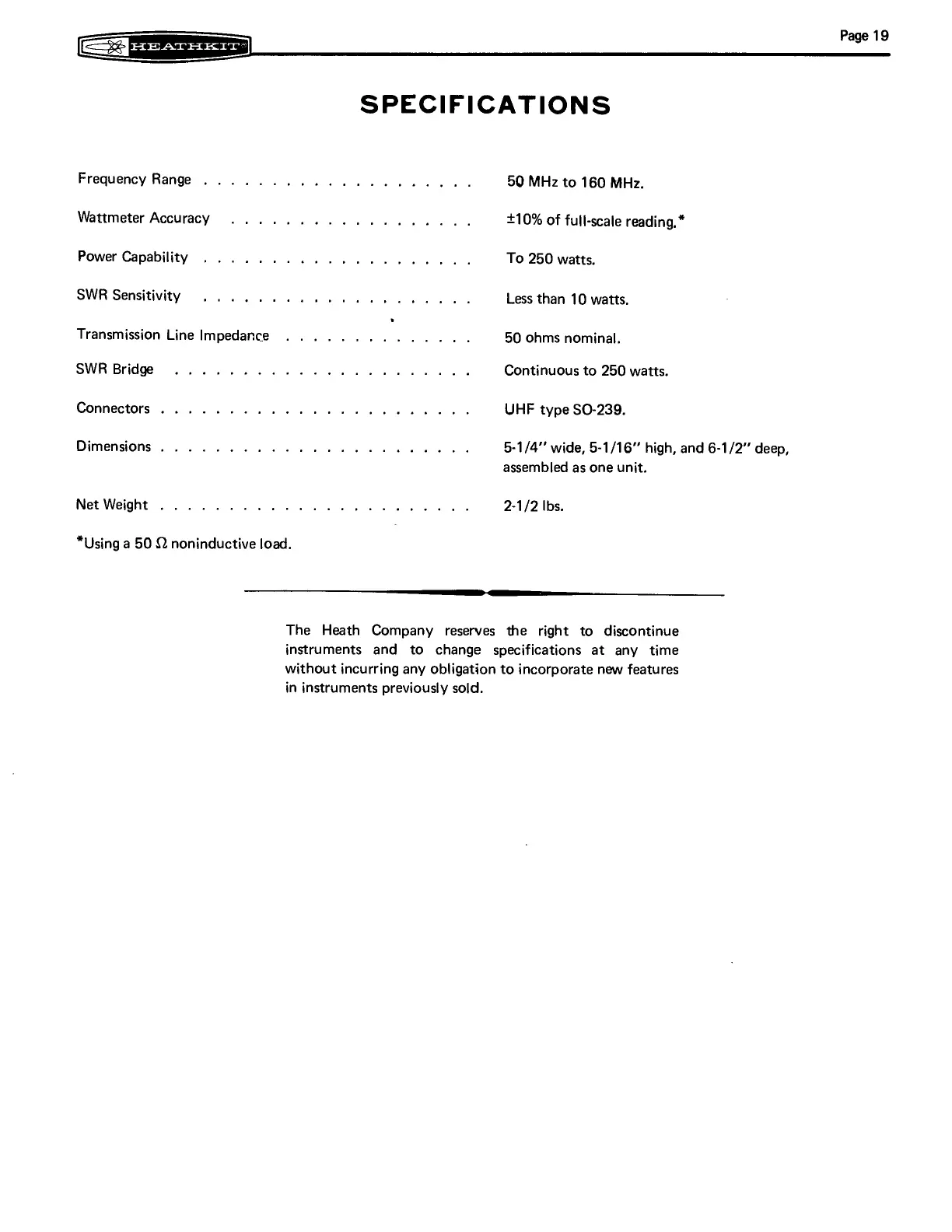

SPECIFICATIONS
Frequency
Range...
........2.-.0
08
bean
50
MHz
to
160
MHz.
Wattmeter
Accuracy
.........0....-.200.4
£10%
of
full-scale
reading,
*
Power
Capability
........0...,....00004
To
250
watts.
SWR
Sensitivity
2.0...
ee
ee
ee
Less
than
10
watts.
Transmission
Line
Impedance
........
,
50
ohms
nominal.
SWR
Bridge...
1...
ee
ee
Continuous
to
250
watts.
Connectors
.
2.
2.
ee
UHF
type
SO-239.
Dimensions...
2...
2...
ee
et
ee
5-1/4”
wide,
5-1/16”
high,
and
6-1/2”
deep,
assembled as one unit.
Net Weight... 2. 0. ee 2-1/2 Ibs.
*Using a 50 2 noninductive load.
The Heath Company reserves the right to discontinue
instruments and to change specifications at any time
without incurring any obligation to incorporate new features
in instruments previously sold.
