P
(Gegureartxit age 27
(29 6-32 NUT
Glp #6 LOCKWASHER
; 6-32 x 3/8"
, SCREW
‘<)

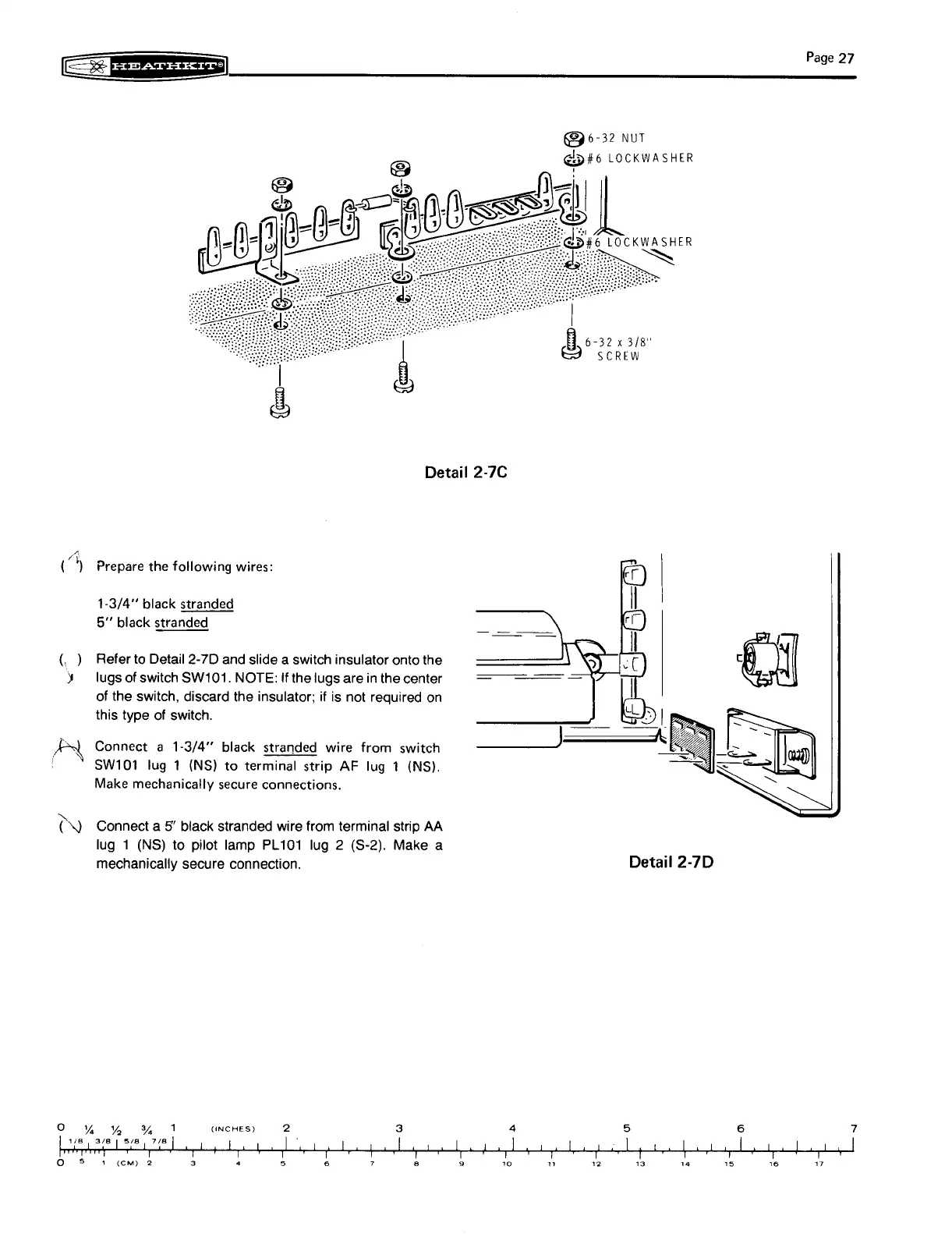

Detail 2-7C
N,
=
—_
Prepare the following wires:
1-3/4” black stranded
5"' black stranded
(, ) Refer to Detail 2-7D and slide a switch insulator onto the
¥ lugs of switch SW101. NOTE: If the lugs are in the center
of the switch, discard the insulator; if is not required on
this type of switch.
m™ Connect a 1-3/4" black stranded wire from switch
: SW101 lug 1 (NS) to terminal strip AF lug 1 (NS).
Make mechanically secure connections.
CN Connect a 5’ black stranded wire from terminal strip AA
lug 1 (NS) to pilot lamp PL101 lug 2 (S-2). Make a
mechanically secure connection. Detail 2-7D
Oo % %Y % 1 (INCHES) 2 3 4 5 6
[ve seyse, et pi Tt | i Leu, | en r,t | aan \ | \
NA A OO T T T_T
Oo 5 1 (CM) 2 3 4 5 6 7 8 9 10 ”n 12 13 14 15 16 7
