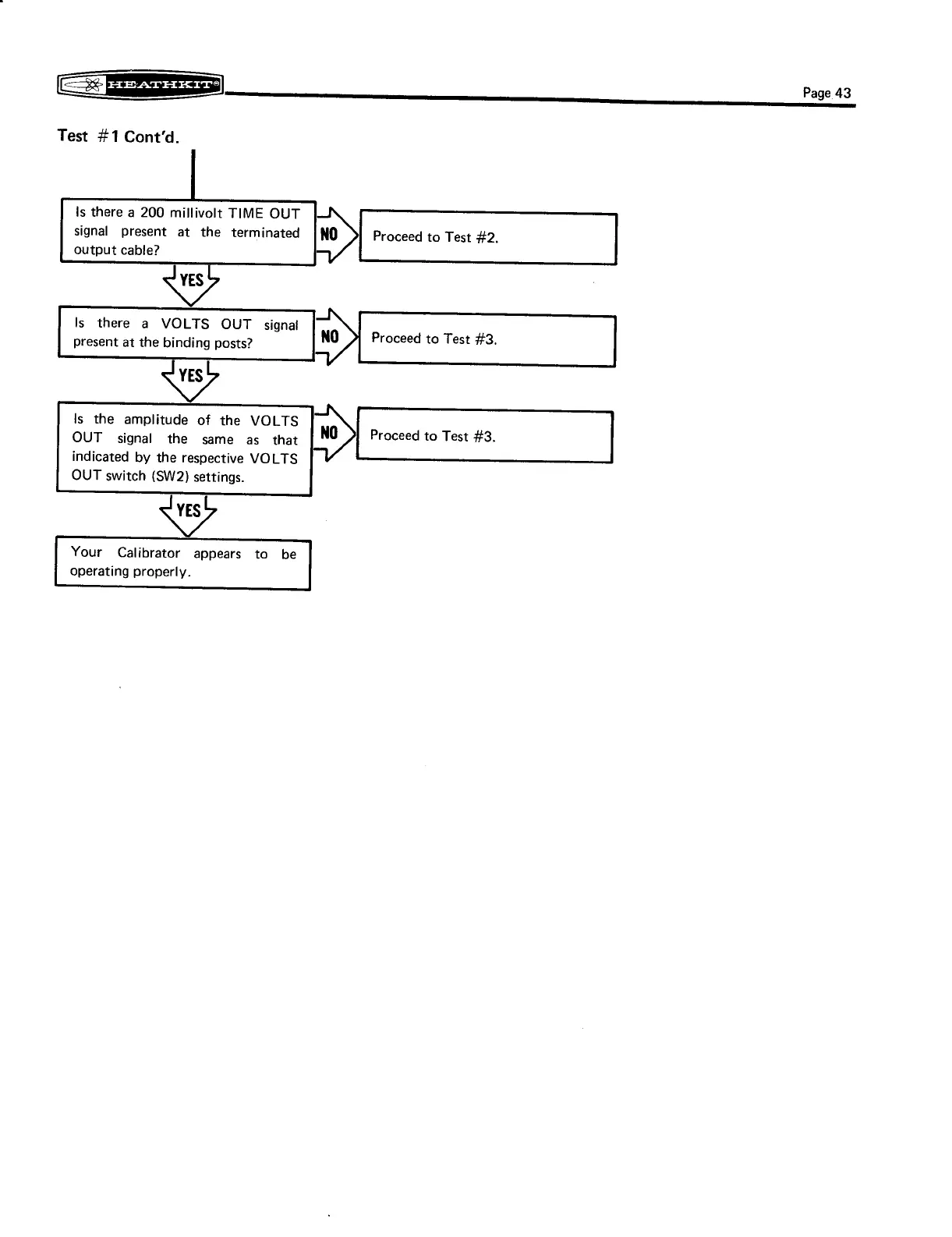

Test
#1
Cont'd.
Is
there
a
200
millivolt
TIME
OUT
signal
present
at
the
terminated
|NQ
Proceed
to
Test
#2.
output
cable?
YES
Is
there
a
VOLTS
OUT
signai
present
at
the
binding
posts?
YES
NO
Proceed
to
Test
#3.
Is
the
amplitude
of
the
VOLTS
OUT
signal
the
same
as
that
indicated
by
the
respective
VOLTS
OUT
switch
(SW2)
settings.
YES
NO
Proceed
to
Test
#3.
Your
Calibrator
appears
to
be
Operating
properly.
