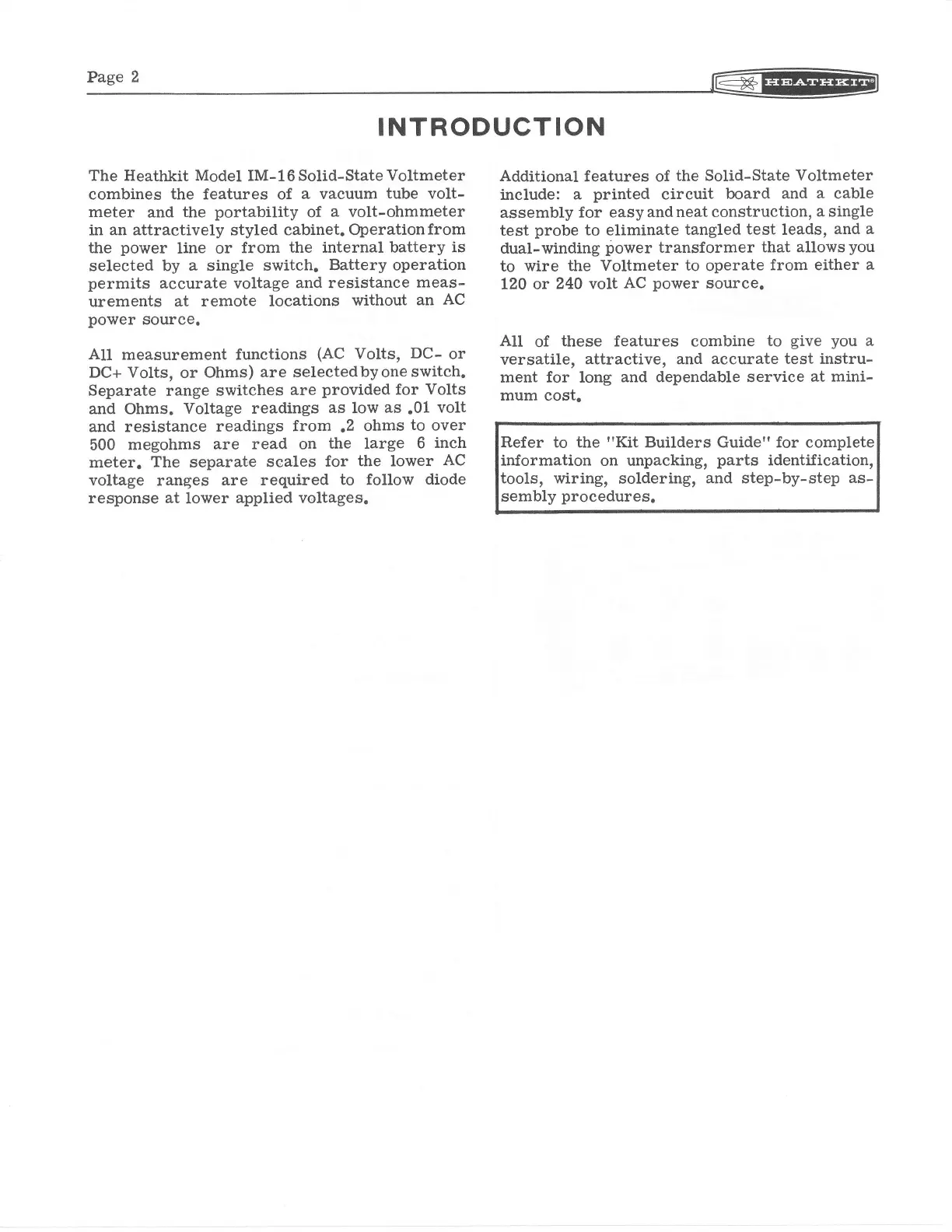

INTRODUCTION
The Heathkit Model IM-16 Solid-State
Voltmeter
combines
the features of
a vacuum
tube volt-
meter
and
the
portability
of
a
volt-ohmmeter
in
an attractively
styled
cabinet.
Operationfrom
the
power
line or
from
the internal battery
is
selected
by a single
switch.
Battery
operation
permits
accurate voltage
and resistance
meas-
urements at
remote locations
without
an
AC
power
source.
All
measurement functions
(AC
Volts,
DC-
or
DC+
Volts,
or
Ohms)
are selectedbyoneswitch.
Separate range switches
are
provided
for
Volts
and Ohms.
Voltage readings
as
low
as
.01
volt
and resistance
readings
from
.2
ohms
to
over
500
megohms
are
read on
the large
6
inch
meter.
The
separate
scales
for
the lower
AC
voltage ranges
are required
to follow
diode
response at
lower
applied voltages.
Additional
features of
the Solid-State
Voltmeter
include:
a
printed
circuit
board
and
a
cable
assembly
for easyandneat construction,
a
single
test
probe
to eliminate
tangled
test
leads,
and
a
dual-winding
fower
transformer
that allows
you
to
wire the
Voltmeter to
operate
from either
a
120 or
240 volt
AC
power
source.
All
of
these features
combine
to
give you
a
versatile,
attractive, and
accurate test instru-
ment
for
long
and dependable service
at mini-
mum cost.
Refer to the
"Kit
Builders Guide" for complete
information on unpacking,
parts
identification,
tools, wiring,
soldering,
and step-by-step as-
sembly
procedures.
