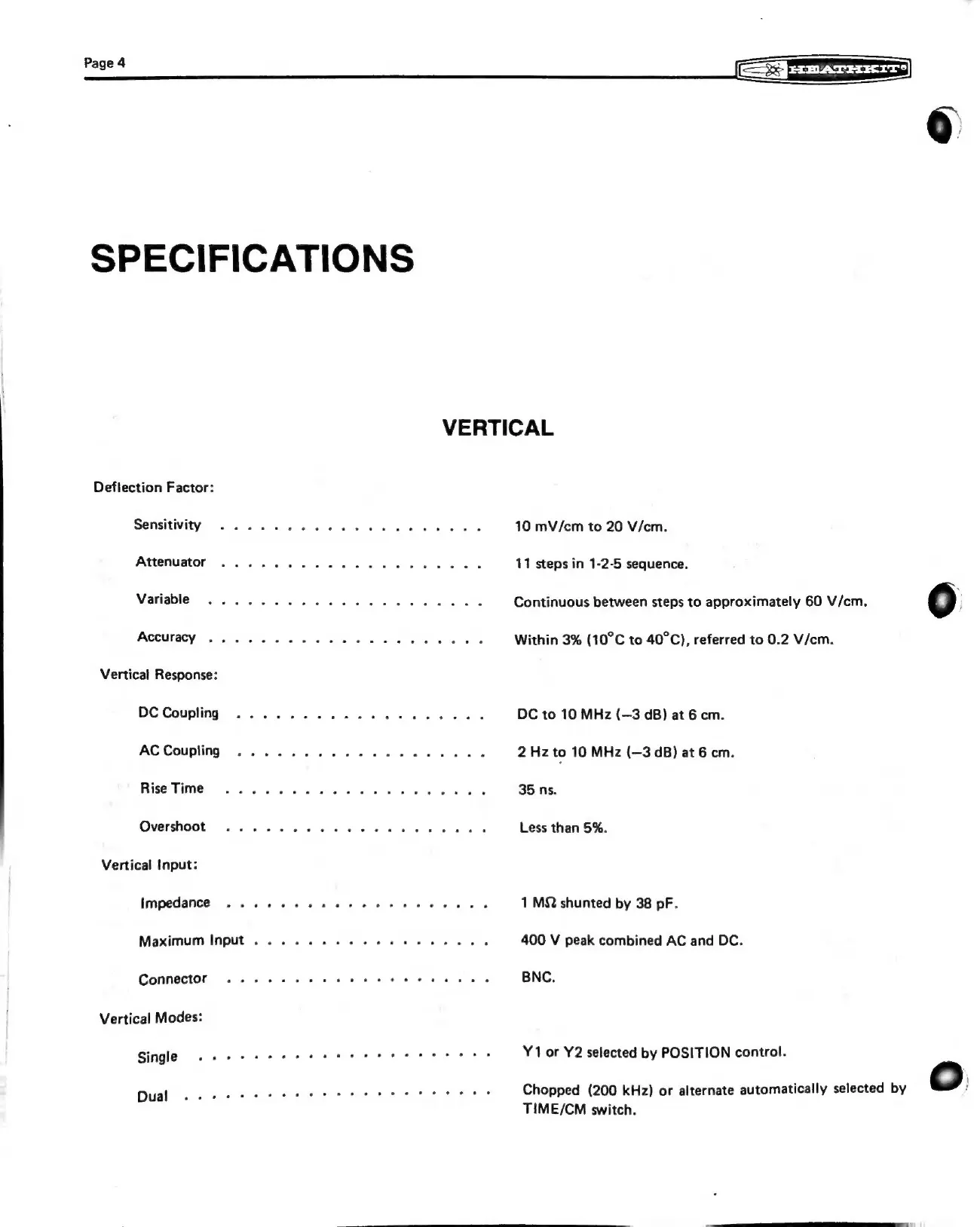

SPECIFICATIONS
VERTICAL
Deflection Factor:
Sensitivity: 2. “nis Ste Fe: eee we oh eS SX 10 mV/cm to 20 V/cm.
Attenuator 2.6 mi cent eed aee dou wes 11 steps in 1-2-5 sequence.
WariaDle: a0 ce ue. ide oe ree do wR Continuous between steps to approximately 60 V/cm. 0
ACCUTACY © x. 3) She Boe. eS ewe ee Se ee wi Ww PR Within 3% (10°C to 40°C), referred to 0.2 V/cm.
Vertical Response:
DE: Coupling: sa diS Ss news ie Ac ste Pe. eS DC to 10 MHz (—3 dB) at 6 cm.
AG Coupling: 5:0 668%. oe eee Sw Se Se we iw 2Hz to 10 MHz (—3 dB) at 6 cm.
Rise Time va od Se Be ee Pe ws 35 ns.
Overshoot 2... 2 2 eee ee tt te Less than 5%.
Vertical Input:
impedance: 2s es wd ee we BRE oy re 1 MQ shunted by 38 pF.
Maximum Input . 2... 2 ee ee et ee ee 400 V peak combined AC and DC.
Connector ......-.-. ee Pe @ BNC.
Vertical
Modes:
Sine
.
+e
eee
eee
tte
tes
oh
bed
Y1
or
Y2
selected
by
POSITION
control.
;
Dual
.--
eee
ete
et
tees
hak
ote
a2
Chopped
(200
kHz)
or
alternate
automatically
selected
by
oO.
TIME/CM switch.
