Heathkit IO-4550 User Manual

Gg
umarexire
Page

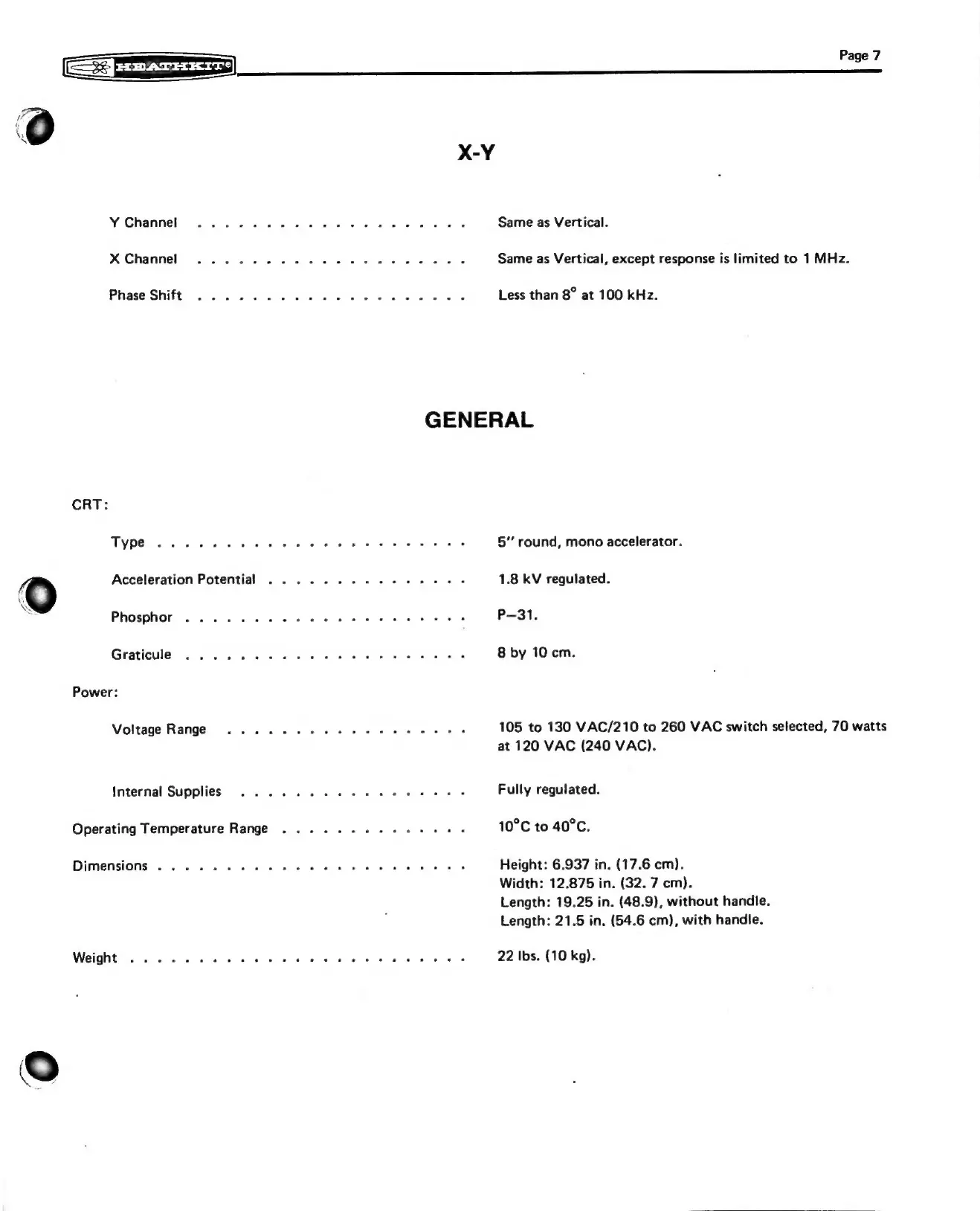

7
X-Y
ViGnanmel: a sess we ve i ks rere 6s ae we es See a te ae Same as Vertical.
M Channel 2 se 2s okt eee aS KR Se Bs Same as Vertical, except response is limited to 1 MHz.
Phase Shift) a:0a.6°-4 ace ace Sore BS oe are es Less than 8° at 100 kHz.
GENERAL
CRT:
TYPES ab oer ee ee as wt BE aS ee FR ey 5” round, mono accelerator.
Acceleration Potential ..........-. bed hi Se 1.8 kV regulated.
©
Phosphor ....... by ewe he se ol BOS P—31.
Graticul@. sos. 3% ee RE ea we ee aw we ee 8 by 10 cm.
Power:
Voltage
Range...
1...
eee
ee
ee
ee
es
105
to
130
VAC/210
to
260
VAC
switch
selected,
70
watts
at 120 VAC (240 VAC).
Internal Supplies .. 1... 1.2 2 ee ee ee eee Fully regulated.
Operating Temperature Range ....... +222 ee 10°C to 40°C.
Dimensions: ..5. 6 oe eee es a Sw a we Height: 6.937 in. (17.6 cm).
Width: 12.875 in. (32. 7 cm).
Length: 19.25 in. (48.9), without handle.
Length: 21.5 in. (54.6 cm), with handle.
Weiglit: 206 sm 3 6 coe eA oe OS ee ee me 22 Ibs. (10 kg).

Heathkit IO-4550 Specifications

General

Brand	Heathkit
Model	IO-4550
Category	Test Equipment
Language	English
