a
EF)

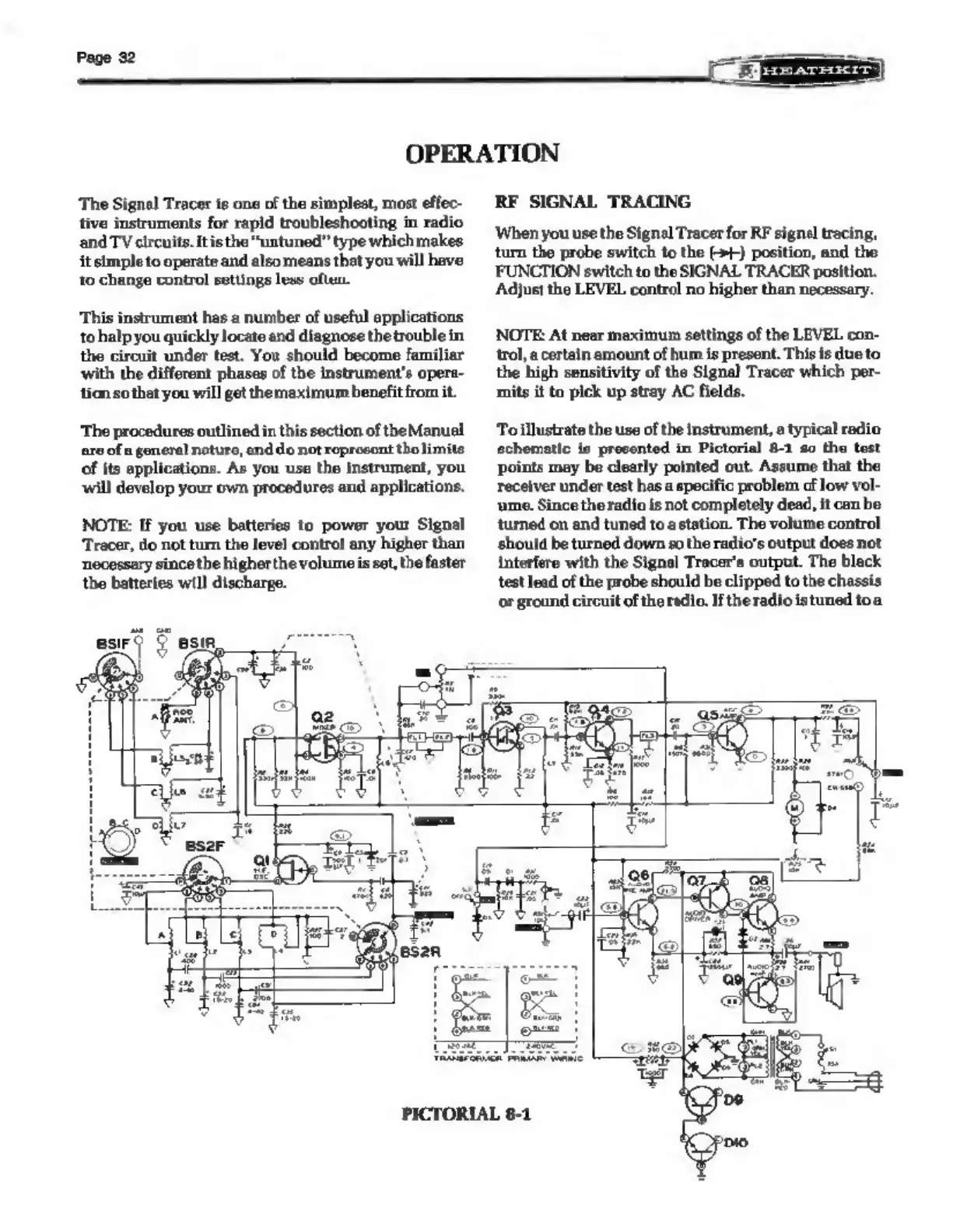

OPERATION
‘The
Signal
Tracer
is
one
of
the
simplest,
most
effec-
tive
instruments
for
rapid
troubleshooting
in
radio
and
TV
circuits.
Itisthe
“untuned”
type
which
makes
it
simple
to
operate
and
also
means
that
you
will
have
to
change
control
settings
less
often.
This
instrument
has
a
number
of
useful
applications
tohalpyou
quickly
locate
and
diagnose
the
trouble
in
the
circuit
under
test.
You
should
become
familiar
with
the
different
phases
of
the
instrument's
opera-
tion
so
that
you
will
get
themaximum
benefit
from
it.
‘The
procedures
outlined
in
this
section
of
the
Manual
are
of
a
general
nature,
anddo
not
roprosent
the
limite
of
its
applications.
As
you
use
the
instrument,
you
will
develop
your
own
procedures
and
applications.
NOTE:
If
you
use
batteries
to
power
your
Signal
‘Tracer,
do
not
turn
the
level
control
any
higher
than
necessary
since
the
higherthe
volumeis
set,
the
faster
the
batteries
will
discharge.
RF
SIGNAL
TRACING
‘When
you
use
the
Signal
Tracer
for
RF
signal
tracing,
turn
the
probe
switch
to
the
(++)
position,
and
the
FUNCTION
switch
to
the
SIGNAL
TRACER
position.
Adjust
the
LEVEL
control
no
higher
than
necessary.
NOTE:
At
near
maximum
settings
of
the
LEVEL
con-
trol,
a
certain
amount
of
hum
is
present.
This
is
due
to
the
high
sensitivity
of
the
Signa)
Tracer
which
per-
mits
it
to
pick
up
stray
AC
fields.
To
illustrate
the
use
of
the
instrument,
a
typical
radio
schematic
ie
presented
in
Pictorial
8-1
so
the
test
points
may
be
clearly
pointed
out.
Assume
that
the
Teceiver
under
test
has
a
specific
problem
of
low
vol-
ume.
Since
the
radio
is
not
completely
dead,
it
can
be
turned
on
and
tuned
to
astation.
The
volume
control
should
be
turned
down
so
the
radio's
output
does
not
interfere
with
the
Signal
Tracer’s
output.
The
black
test
lead
of
the
probe
should
be
clipped
to
the
chassis
or
ground
circuit
of
the
radio.
If
theradio
istuned
toa
PICTORIAL
8-1
