Heathkit SB-401 - Page 10

ANTENNA
RCVR
ANT
SB- 401
TRANSMITTER
TO ANTENNA
% MUST BE RG-62/U CABLE 24” LONG
(SUPPLIED WITH S$B-301 RECEIVER)
$B-301
RECEIVER

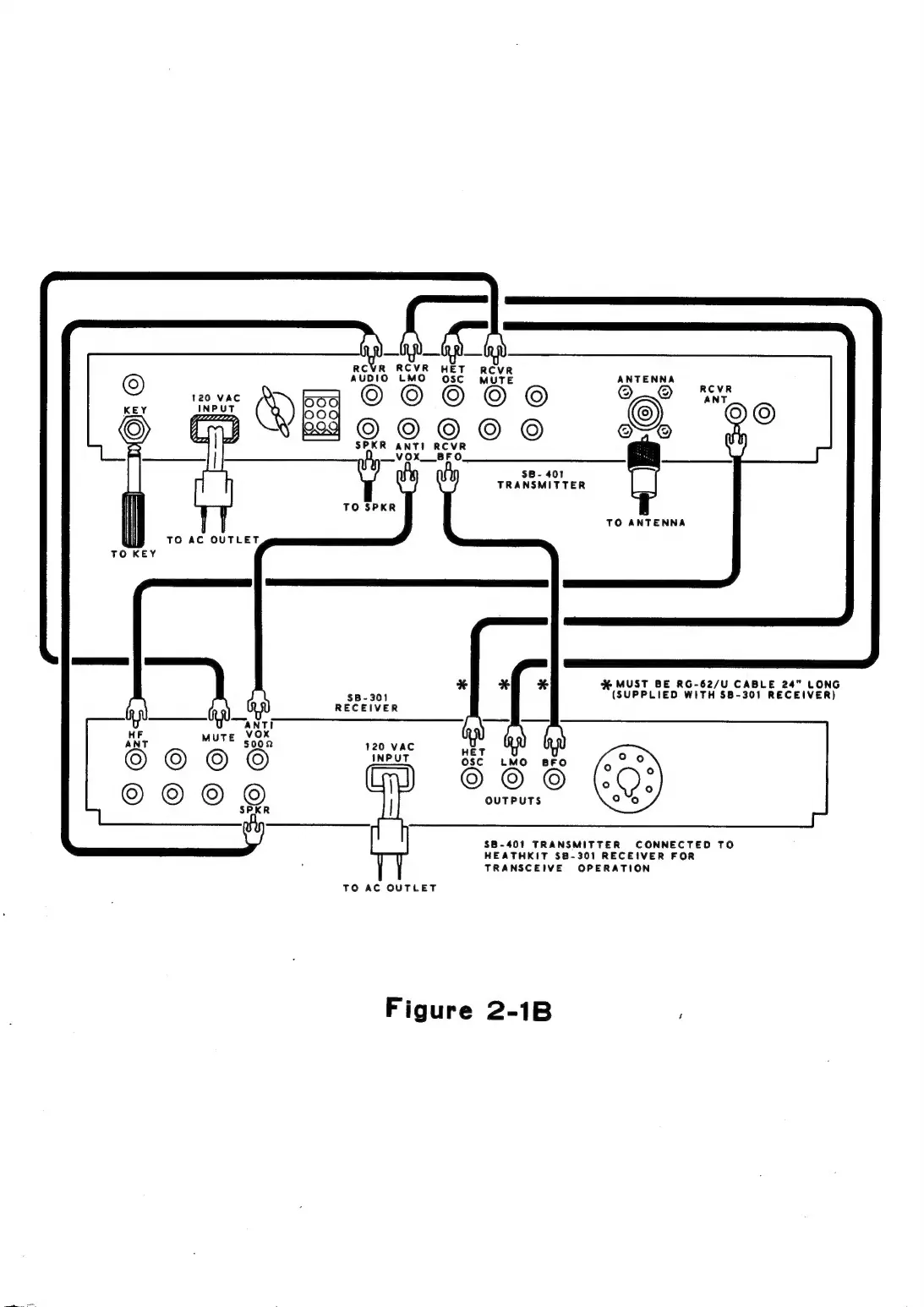

SB-401 TRANSMITTER CONNECTED TO
HEATHKIT $8-301 RECEIVER FOR
TRANSCEIVE OPERATION
TO AC OUTLET
Figure 2-1B
