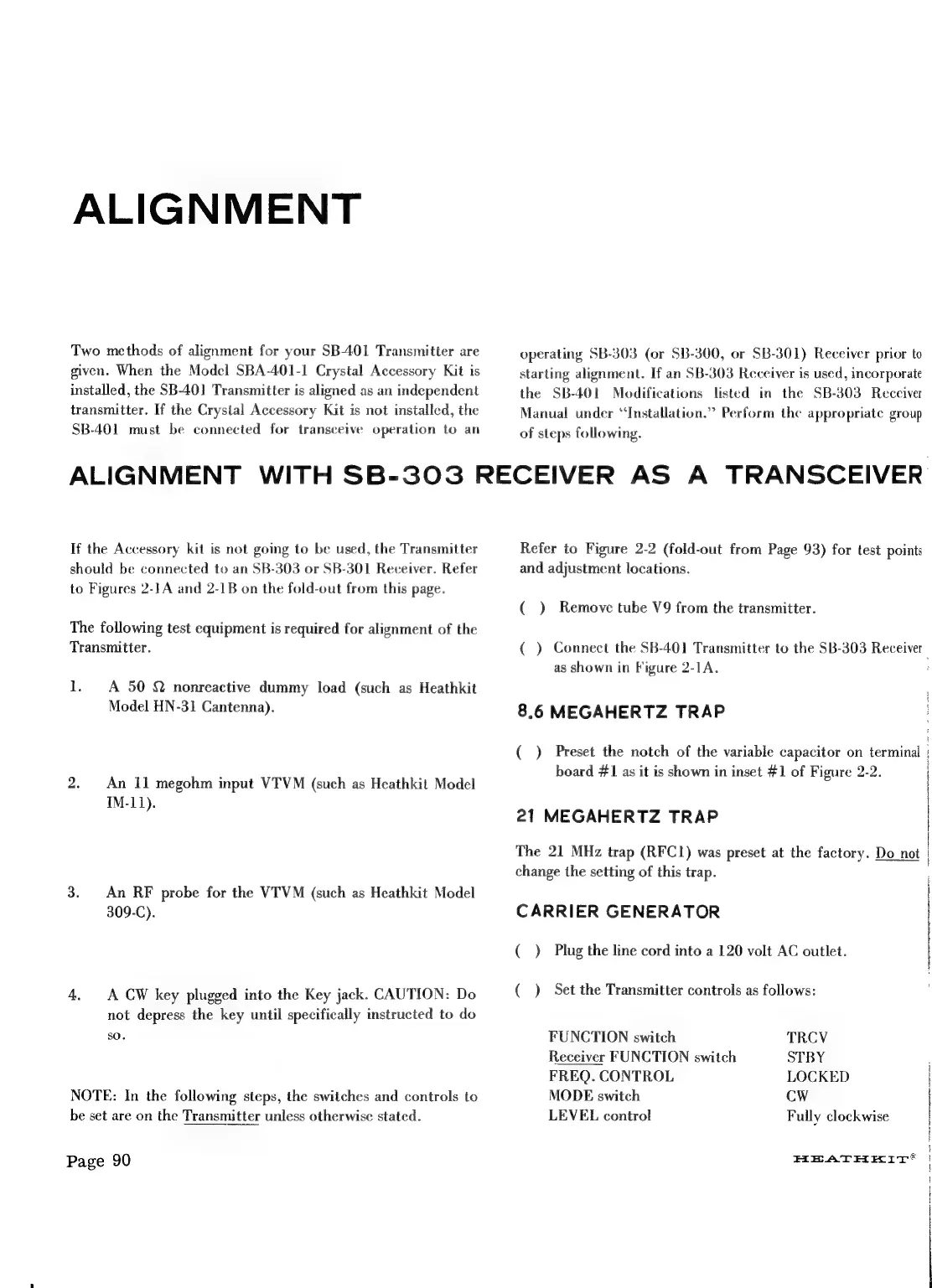

ALIGNMENT
Two
methods
of
alignment
for
your
SB401
Transmitter
are
given.
When
the
Model
SBA-401-1
Crystal
Accessory
Kit
is
installed,
the
SB-40]
Transmitter
is
aligned
as
an
independent
transmitter.
If
the
Crystal
Accessory
Kit
is
not
installed,
the
SB-401
must
be
connected
for
transceive
operation
to
an
operating
SB-303
(or
SB-300,
or
SB-301)
Receiver
prior
to
starting
alignment.
If
an
SB-303
Receiver
is
used,
incorporate
the
SB-401
Modifications
listed
in
the
SB-303
Receiver
Manual
under
“‘Installation.””
Perform
the
appropriate
group
of
steps
following.
ALIGNMENT
WITH
SB-303
RECEIVER
AS
A
TRANSCEIVER
If
the
Accessory
kit
is
not
going
to
be
used,
the
Transmitter
should
be
connected
to
an
SB-303
or
SB-301
Receiver.
Refer
to
Figures
2-]A
and
2-1B
on
the
fold-out
from
this
page.
The
following
test
equipment
is
required
for
alignment
of
the
Transmitter.
I.
A
50
Q
nonreactive
dummy
load
(such
as
Heathkit
Model
HN-31
Cantenna).
2.
An
11
megohm
input
VTVM
(such
as
Heathkit
Model
IM-11).
3.
An
RF
probe
for
the
VTVM
(such
as
Heathkit
Model
309-C).
A.
A
CW
key
plugged
into
the
Key
jack.
CAUTION:
Do
not
depress
the
key
until
specifically
instructed
to
do
so.
NOTE:
In
the
following
steps,
the
switches
and
controls
to
be
set
are
on
the
Transmitter
unless
otherwise
stated.
Page
90
Refer
to
Figure
2-2
(fold-out
from
Page
93)
for
test
points
and
adjustment
locations.
(
)
Remove
tube
V9
from
the
transmitter.
(
)
Connect
the
SB-401
Transmitter
to
the
SB-303
Receiver
as
shown
in
Figure
2-1A.
i
8.6
MEGAHERTZ
TRAP
(_)
Preset
the
notch
of
the
variable
capacitor
on
terminal
board
#1
as
it
is
shown
in
inset
#1
of
Figure
2-2.
21
MEGAHERTZ
TRAP
The
21
MHz
trap
(RFC1)
was
preset
at
the
factory.
Do_not
change
the
setting
of
this
trap.
CARRIER
GENERATOR
( )
Plug
the
line
cord
into
a
120
volt
AC
outlet.
( )
Set
the
Transmitter
controls
as
follows:
FUNCTION
switch
TRCV
Receiver
FUNCTION
switch
STBY
FREQ.
CONTROL
LOCKED
LEVEL
control
i
i
MODE
switch
CW
|
Fully
clockwise
|
