Heatmaxx SRCH06D - Step 5: Attach Chimney Body; Step 6: Install Grids and Caps

6
6.
5
6
Hardware Used
C
E
CC
DD
AA
FF
CC
DD
Spring Washer x 4
AA Nut x 4
A
B
C

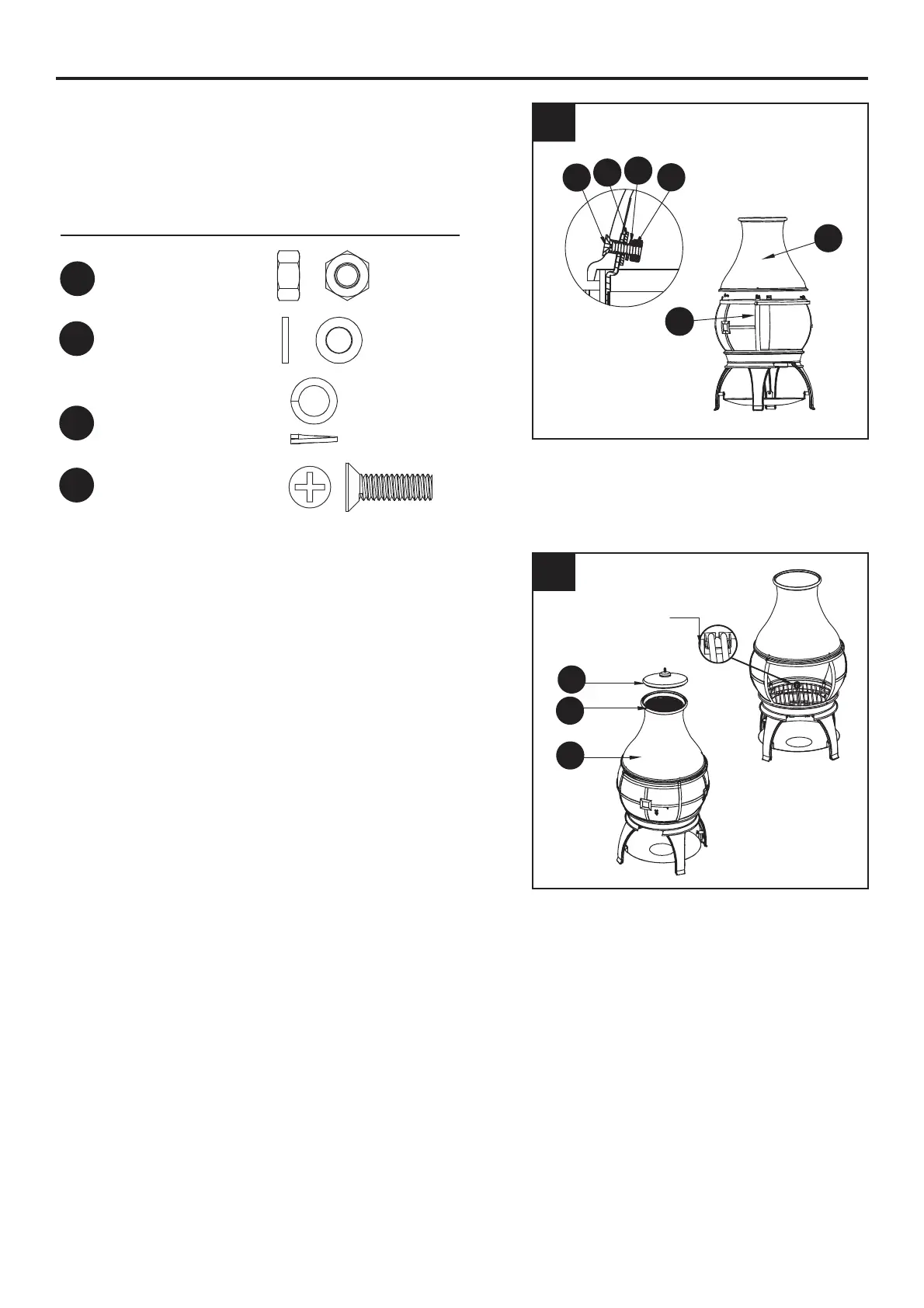

5.Attach chimney body (C) on the top of screen
assembly (E) with washers (CC), spring
washers (DD), M6 x 20 mm flat bolts (FF) and
nuts (AA).
Washer x 4
M6 x 20 mm Flat Bolt x 4
Place the charcoal grid (F) in upper stove assembly
(G) and attach it onto the support bracket.
Then place chimney mesh cover (B) and chimney
cap (A) on top of chimney body (C).
FF
Support
bracket
ASSEMBLY INSTRUCTIONS
