Heatmaxx SRPH98 - Step 7: Glass Tube Base Installation; Step 8: Burner Assembly Installation

5
11
CC
HH
12
4
CC
5
$66(0%/<,16758&7,216
12
11
6WHS

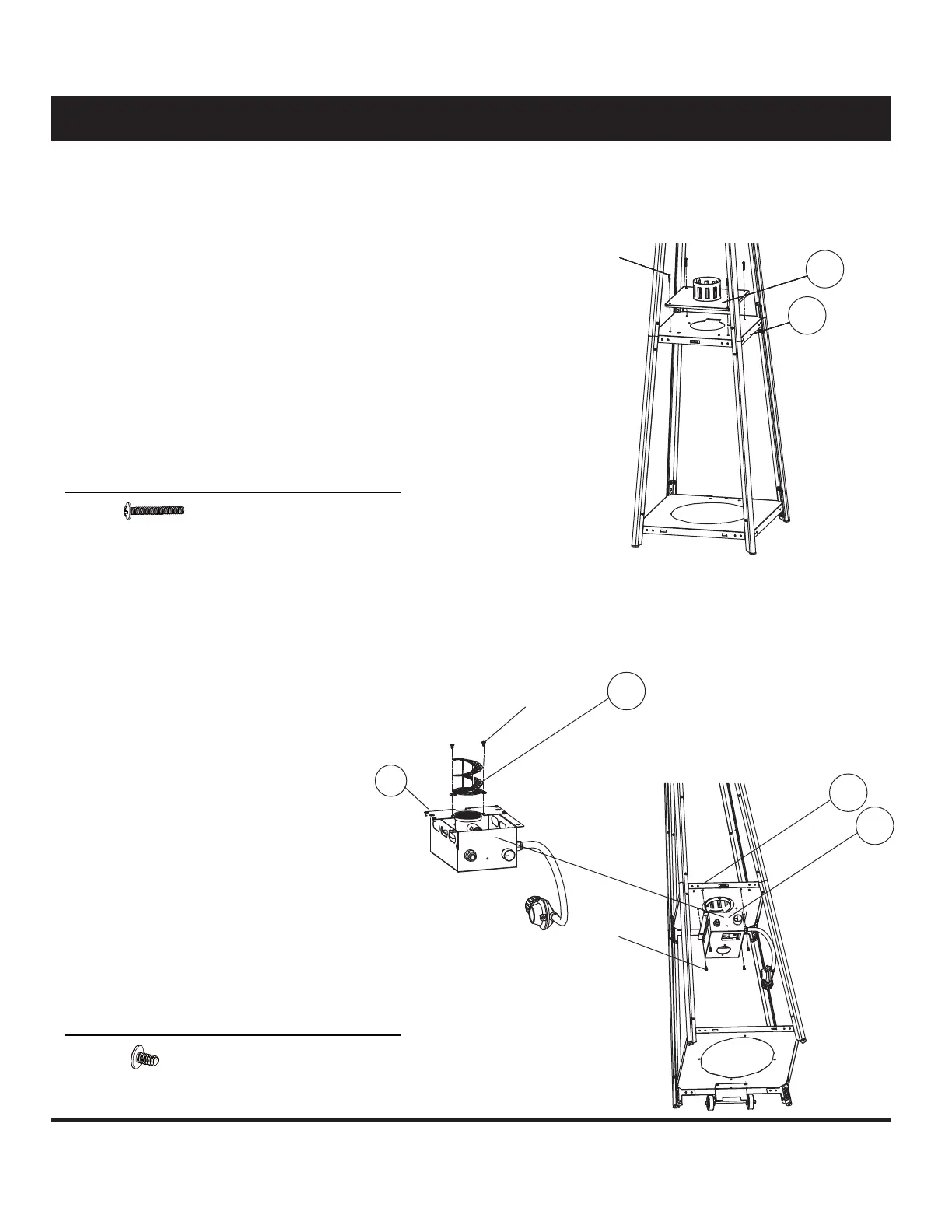

Attach the glass tube base (#11) to the middle plate (#12) with (4) M4 x 25 screws (HH) as illustrated.
6WHS
Attach the spiral (#4) to the burner assembly (#5) with (2) M5 x 12 screws (CC), then attach the burner
assembly (#5) to the middle plate (#12) with (4) M5 x 12 screws (CC) as illustrated.
+DUGZDUH8VHG
+DUGZDUH8VHG
M5 x 12 Screw
6 pcs
CC
M4 x 25 Screw
(pre-assembly)
4 pcsHH
