HEAVENCHEF Olympic 69247 - Step 11: Drip Tray Assembly; Step 12: Gas Bottle Holder

20 pages

To Next Page

To Previous Page

Step 11

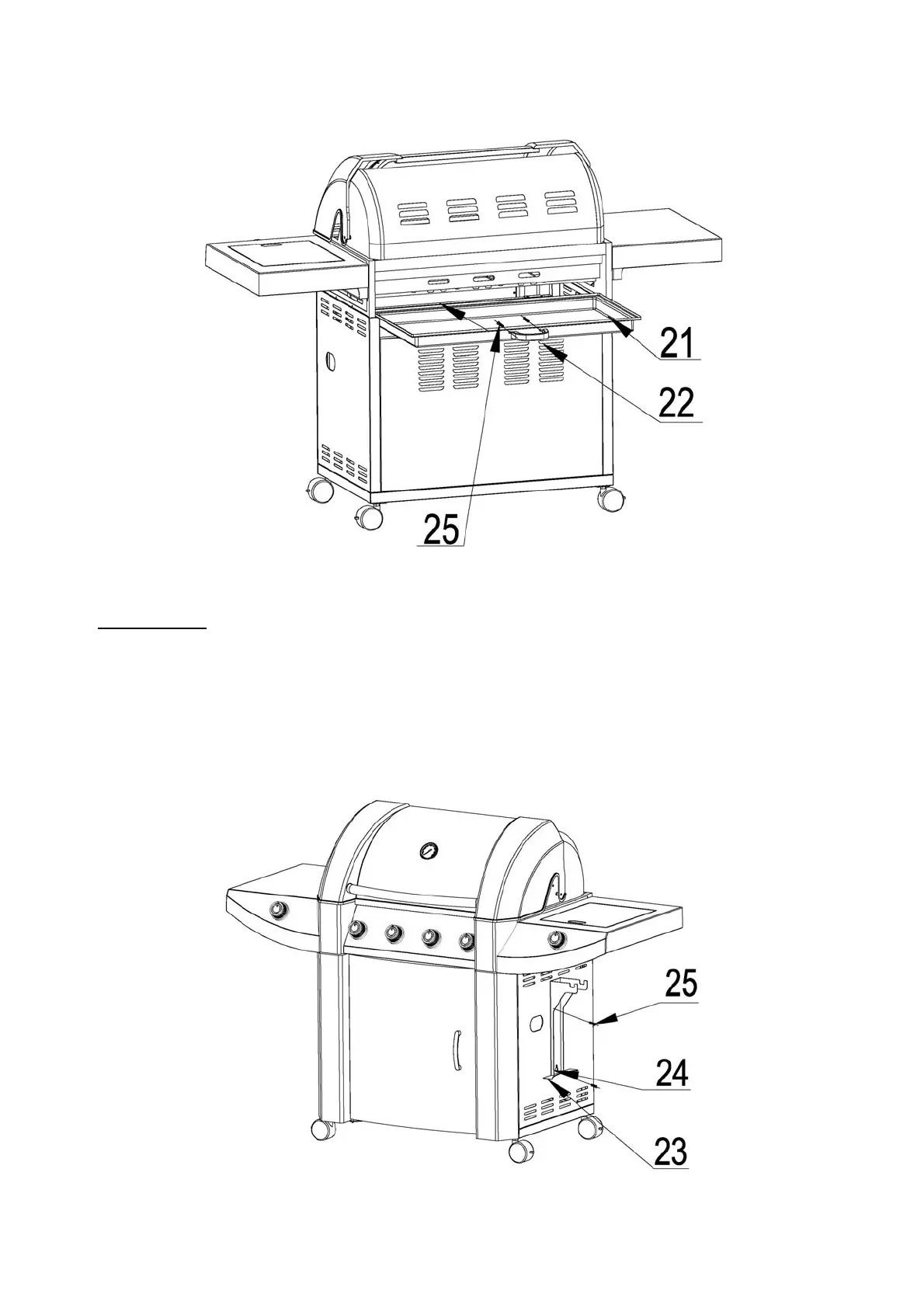

Secure the handle (No.22) to the drip tray (No.21) with 2× M6× 12 screws (No.25)

Slide the moisture/drip tray (No.21) into the BBQ frame as shown below.

Step 12

You will need

2×M6×12 screws (No.25)

2×M6 nuts (No.24)

Attach the gas bottle holder (No.23) onto the trolley right side panel (No.4).

You will find the screw holes on the side panel especially for this purpose.
