3
CCT-3300E
CCT-3310E
CCT-3320E/CCT-3320
CCT-3320T

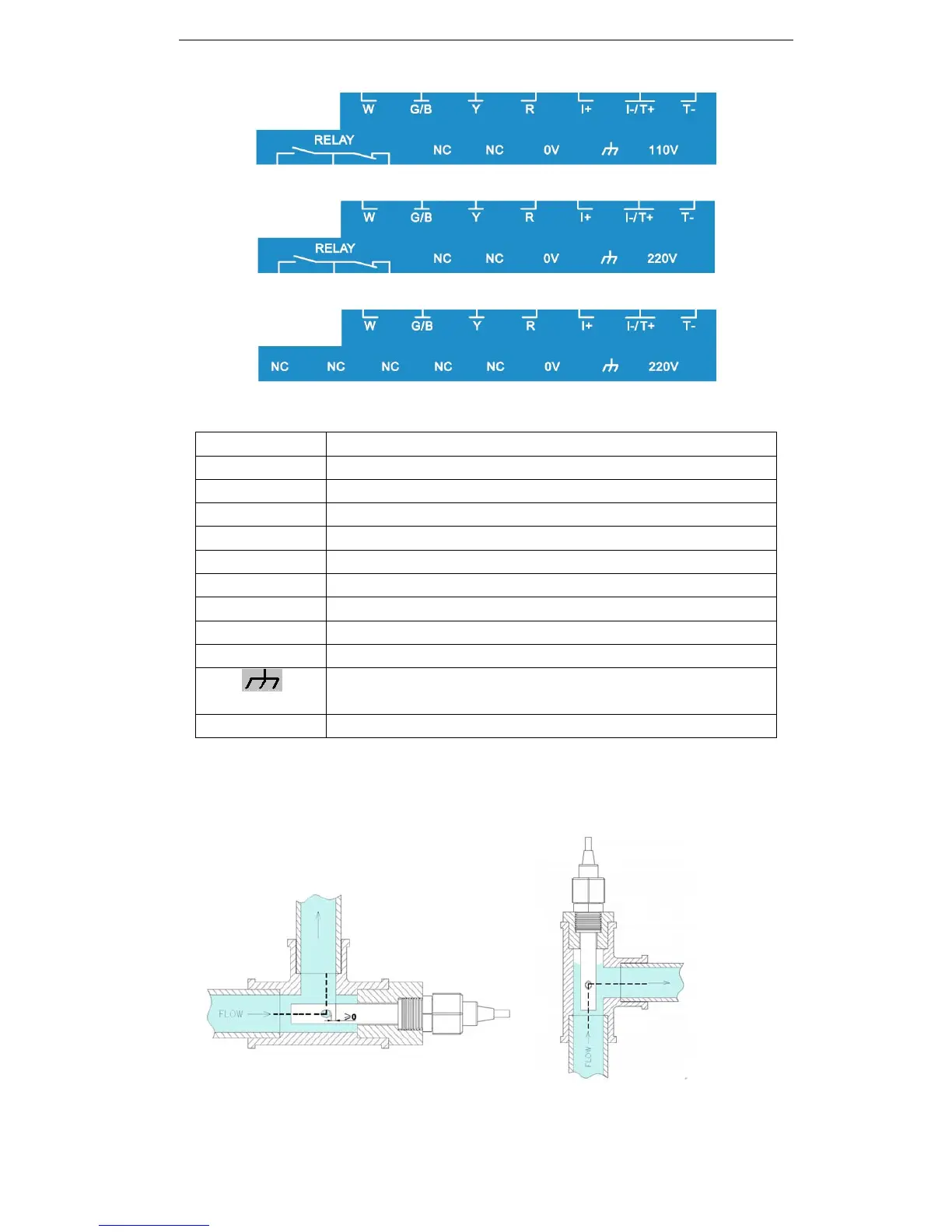

Wiring instruction：
W Connect white line of cell (WHITE)
G/B Connect green line of cell（GREEN）
Y Connect yellow line of cell (YELLOW)
R Connect red line of cell (RED)
I+/I- Instrument mode（powered by instrument）
T+/T- Transmitting mode（powered by conditioning module）
RELAY Relay contact（SPDT NO/NC）
24V(A)/24V(B) DC power supply（automatic internal recognition polarity）
0V/110V AC 110V input interface
0V/220V AC 220V input interface
Electromagnetic compatibility ground protection
terminal(connect the earth)
NC Empty terminal（no connection inside）
2.2 Installation of electrode
