OPTIONAL OUTSIDE CONTROLS
(CONTINUED)
F. LATCH BAR ASSEMBLY

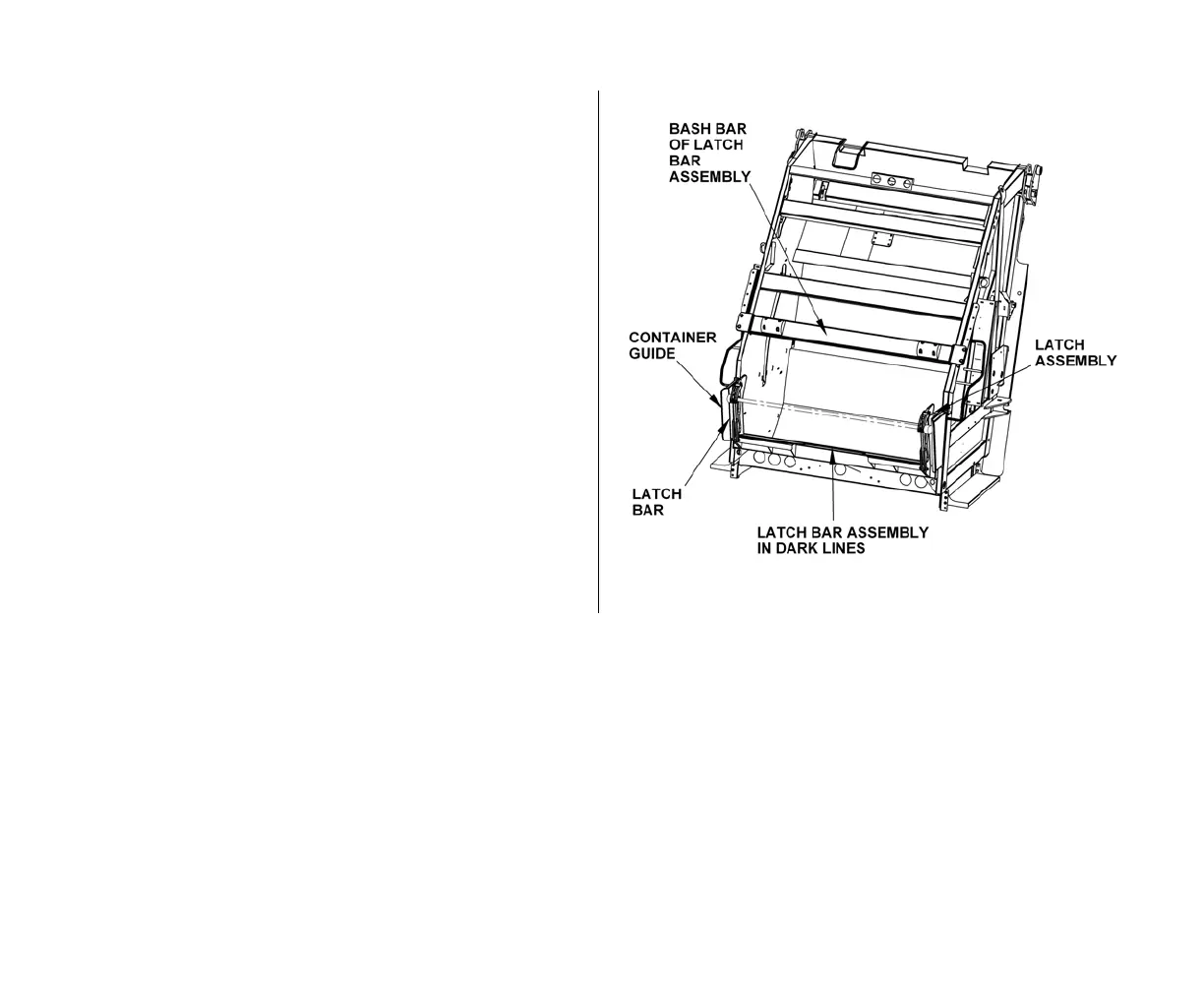

You use the latch bar assembly to secure a refuse
container BEFORE you raise or lower the container with
a reeving mechanism, winch or roll bar. Refer to the
figure on the right.
1. You ROTATE the latch assemblies UP which
RELEASES the latch bars and they can ROTATE
DOWN.
2. You move the refuse container to the tailgate into
position for latching its trunnion bar.
3. You ROTATE the latch bars UP and ROTATE the
latch bar assemblies DOWN over the latch bars. This
locks container’s trunnion bar in the latch bar
assembly.
4. A “bash bar” prevents the container from over-
rotating into the hopper.
