HEINE DELTA one User Manual

8/52 MED 176623 2019-09-12
Setting up
Charge the instrument fully before rst use.
Charging

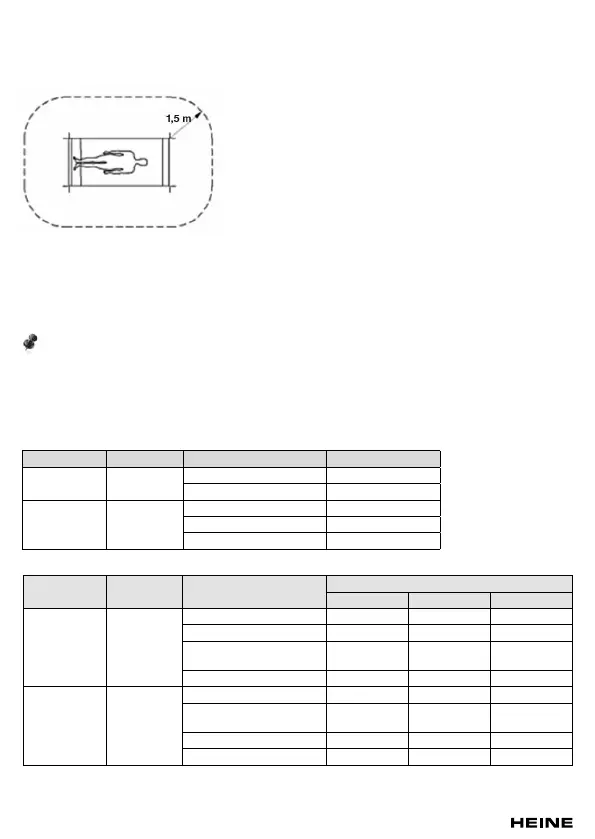

Charge the device outside of the patient environment (1.5 m).
Charging via USB (DELTAone and DELTA30)
Use a USB cable to connect the USB connector (4,15) of the dermatoscope to a USB power supply
(e.g. HEINE
®
E4-USB, PC or laptop).
Using the charging station (DELTA30)
Use the charging station to charge DELTA30. The blue LED on the charging station indicates contact with
the dermatoscope. The charge indicator is located on DELTA30.
Pay attention to the fact that no foreign objects are between the device and the charging station.
When using DELTA30, make sure that the charging station and DELTA30 are not contaminated.
The setting up and operation of the charging station is described in a separate instruction of use.
Charge indicator
A charge indicator (5,16) is located on the side or underside of the dermatoscope.
DELTAone
DELTA30
Instrument Charger Battery Charge indicator
switched off connected
charging green, ashing
full green
switched on
not
connected
full (≥ 25 %) green
empty (< 25 %) orange
residual capacity (< 10 %) orange, ashing
Instrument Charger Battery
Charge indicator segments
Green - 1 Green - 2 Orange - 3
switched off connected
100 % on on on
full (99 % – 66 %) ashing on on
sufciently charged
(66 % – 33 %)
off ashing on
empty (≤ 33 %) off off ashing
switched on
not
connected
full (≥ 66 %) on on on
sufciently charged
(66 % – 33 %)
off on on
empty (33 % – 10 %) off off on
residual capacity (< 10 %) off off ashing
