HEINE visionPRO - Mounting the visionPRO CS1 Charging Station; Mounting Options

14/124 MED 235340 2022-11-21
Mounting the visionPro CS1 charging station
To ensure all-pole disconnection from the mains at all times, the ME device must be installed
so that the switch mode power supply is accessible and disconnectable.
Disconnect the mains plug from the mains when assembling or disassembling the ME device.
The visionPRO CS1 is designed for the following mounting options:
- Setup on a table or a similar stable surface (fig. 3)
- Direct wall mounting (Fig. 4)
- Wall mounting using a specific adapter on standard rails

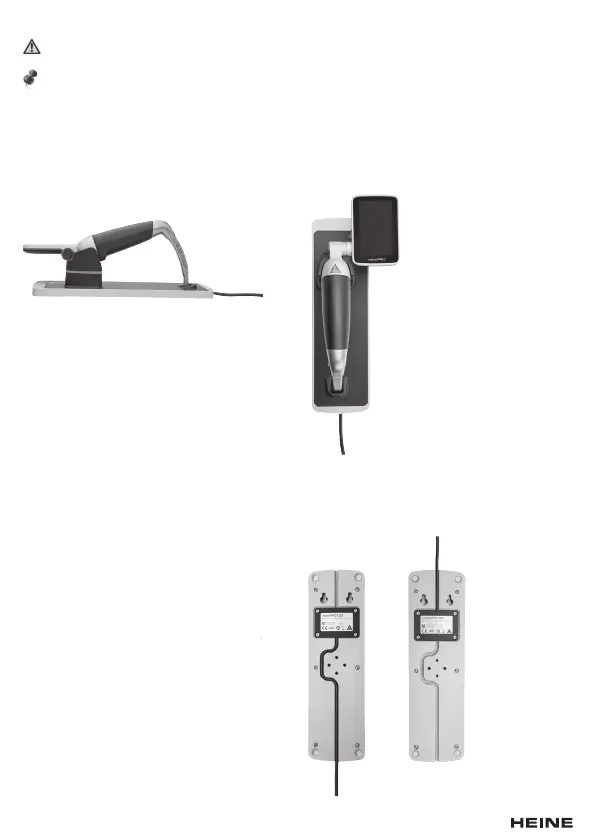

Fig. 3:
visionPRO CS1 with an inserted
visionPRO video laryngoscope
in the table position
Fig. 4:
visionPRO CS1 with an inserted
visionPRO video laryngoscope
in the wall position
Cable routing
Loosen the screws for fastening the identication plate and route the cable of the power supply
unit according to the desired fastening option (g. 5). Tighten the screws again after successfully
aligning the cable.
Fig. 5:
Rear of the visionPRO CS1
with the various cable routing options.
