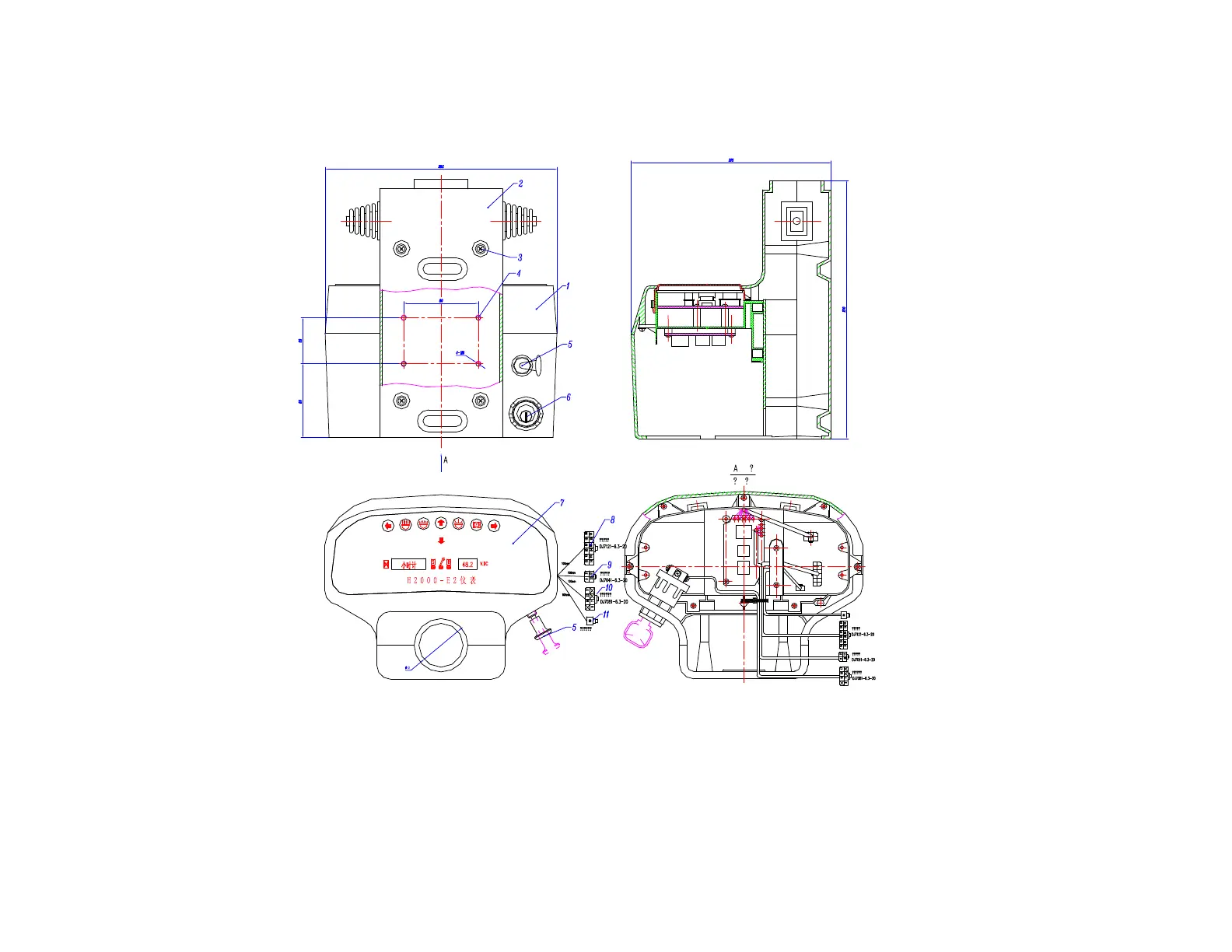

4、 The structure drawing of the meter assembly
1.case 2.case rear cover 3.rear cover screw
4.instrument fixing screw hole
5.Lamp switch 6.key switch 7.meter panel 8.9.10.11harness plug
