7.1General Description

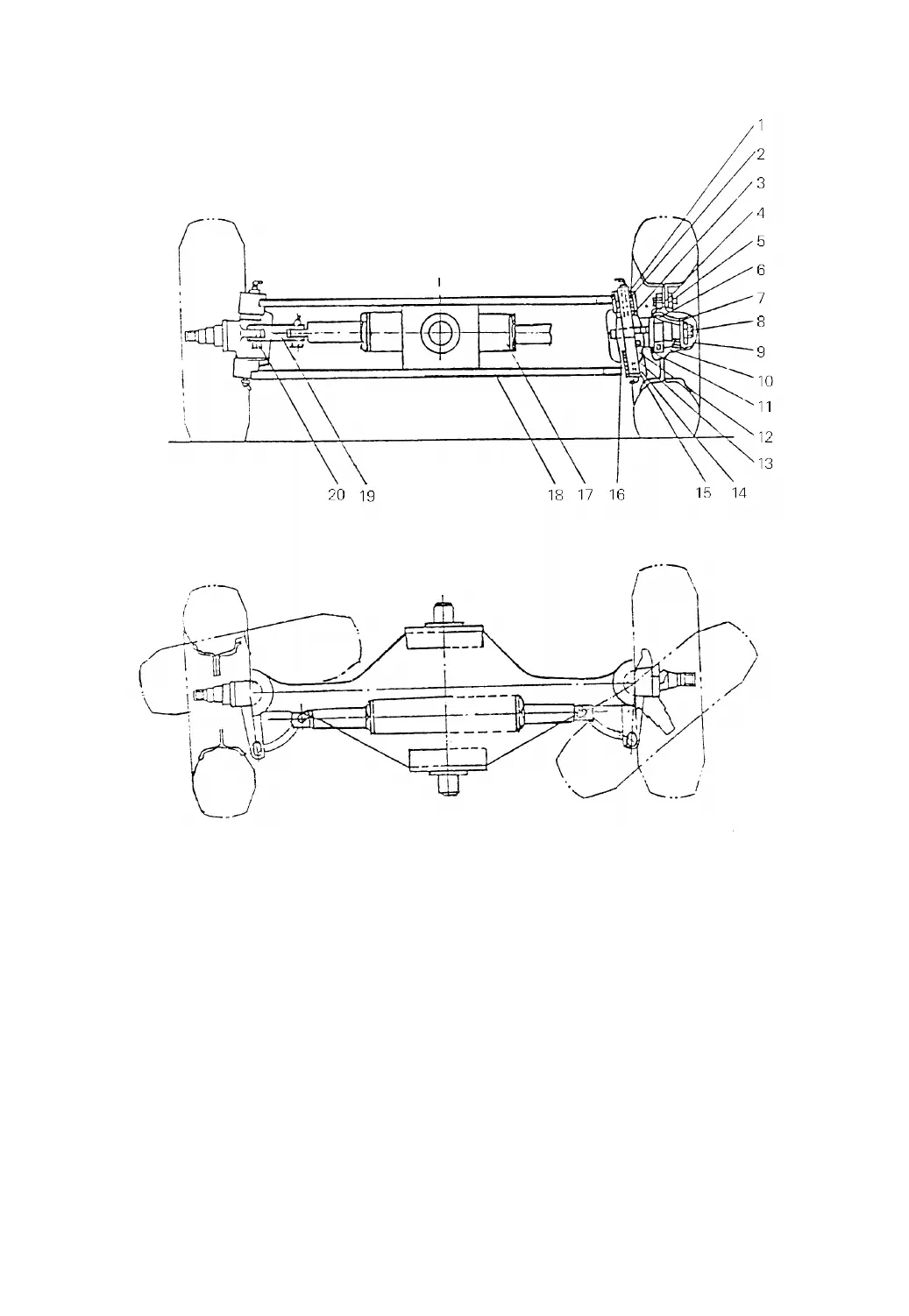

Fig.7-1 Steering axle
(1) Oil seal (2) Needle bearing (3) Thrust bearing (4) Oil seal
(5) Hub nut (6) Tapered roll bearing (7) Tapered roll bearing
(8) Lock nut (9) Hub cap
(10) Steer hub (11) Stop pin (12) Shim (13) Needle bearing
(14) Oil seal (15) King pin (16) Knuckle (17) Steer cylinder
(18) Steer axle body (19) Tie rod (20) Pin axle
The steer axle is of section-boxed welded construction type (See Fig.7-1). It
includes axle body, steer cylinder, tie rods and steer wheels. The front and rear axles
of the steer axle are pivoted in the bearing seats bolted to the rear frame, thus causing
-49-
