8.7 Brake Pedal Adjustment (Truck with torque converter) (See Fig.8-8)

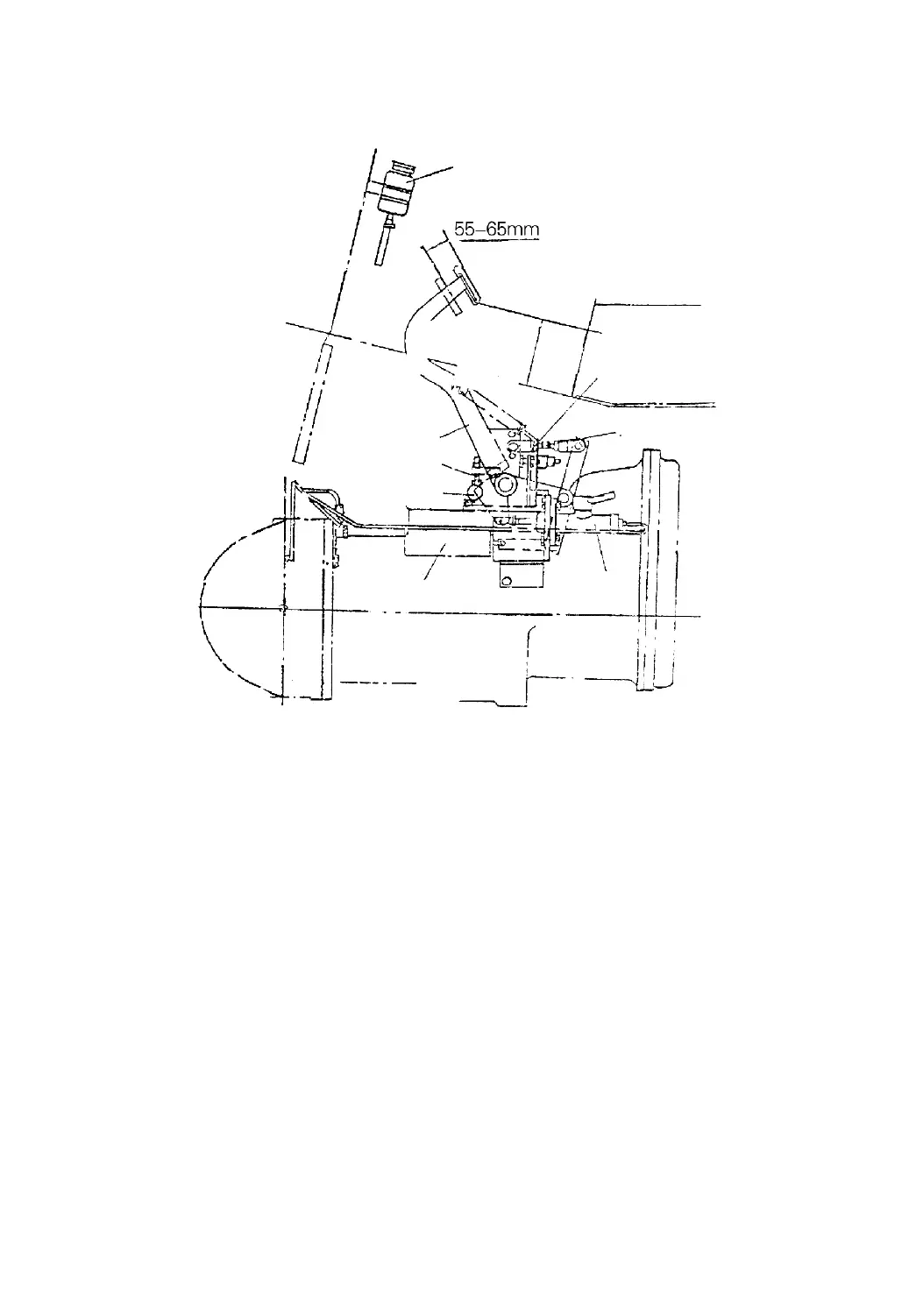

Fig.8-8 Brake pedal adjustment (truck with torque converter)
(1)Pedal (2)Linking bolt (3)Connecting shaft (4)Oil tank (5)Free travel
stoke
(6)Stop bolt (7)Screw stem (8)Inching valve (9)Brake master cylinder
(1) Loosen the push rod and interlocking bolt.
(2) Adjust the pedal to the height of 111mm with the stopper bolt.
(3) Adjust the left side pedal (inching pedal) for 2-10mm idle travel with the
stud.
(4) Press the right side pedal for 60mm and adjust the stud length until the front
end of the push rod get in contact with the master cylinder piston, then lock with a
lock nut.
(5) Adjust the interlocking bolt until its head comes in contact with the
-60-
1
2
3
4
5
6
7
115
mm
8
9
(2-3.8t)
