(4)Remove the primary and
secondary shoes, at the same time,
remove adjuster spring. (See Fig.8-12)
(5) Remove the braking oil
pipe from the operating cylinder,
remove operating cylinder mounting
bolts and detach the operating cylinder
from the backing plate. (See Fig.8-13)
(6) Remove the E-retainer for
securing the parking brake cable to the
backing plate. Remove the backing
plate mounting bolts and detach the
backing plate from the drive axle
body. (See Fig.8-14)
(7) Remove the operating
cylinder boot and push all parts out of
the cylinder. (See Fig.8-15)

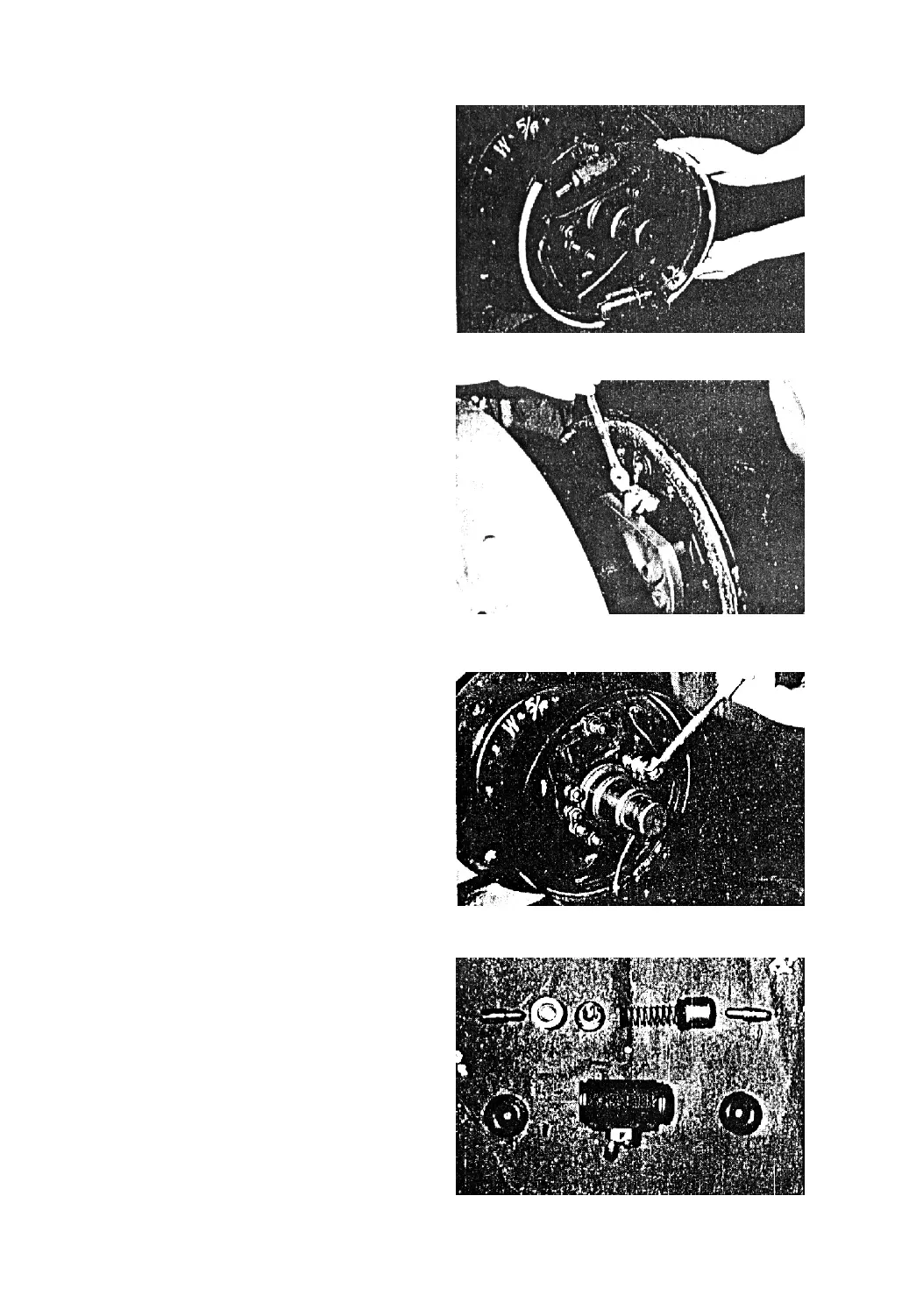

Fig. 8-12
Fig. 8-13
Fig. 8-14
Fig. 8-15
-62-
