Oil tank
Tilt cylinder (right)
Main pump
Steering cylinder
To flow regulator
Control valve
Steering unit
Tilt cylinder (left)

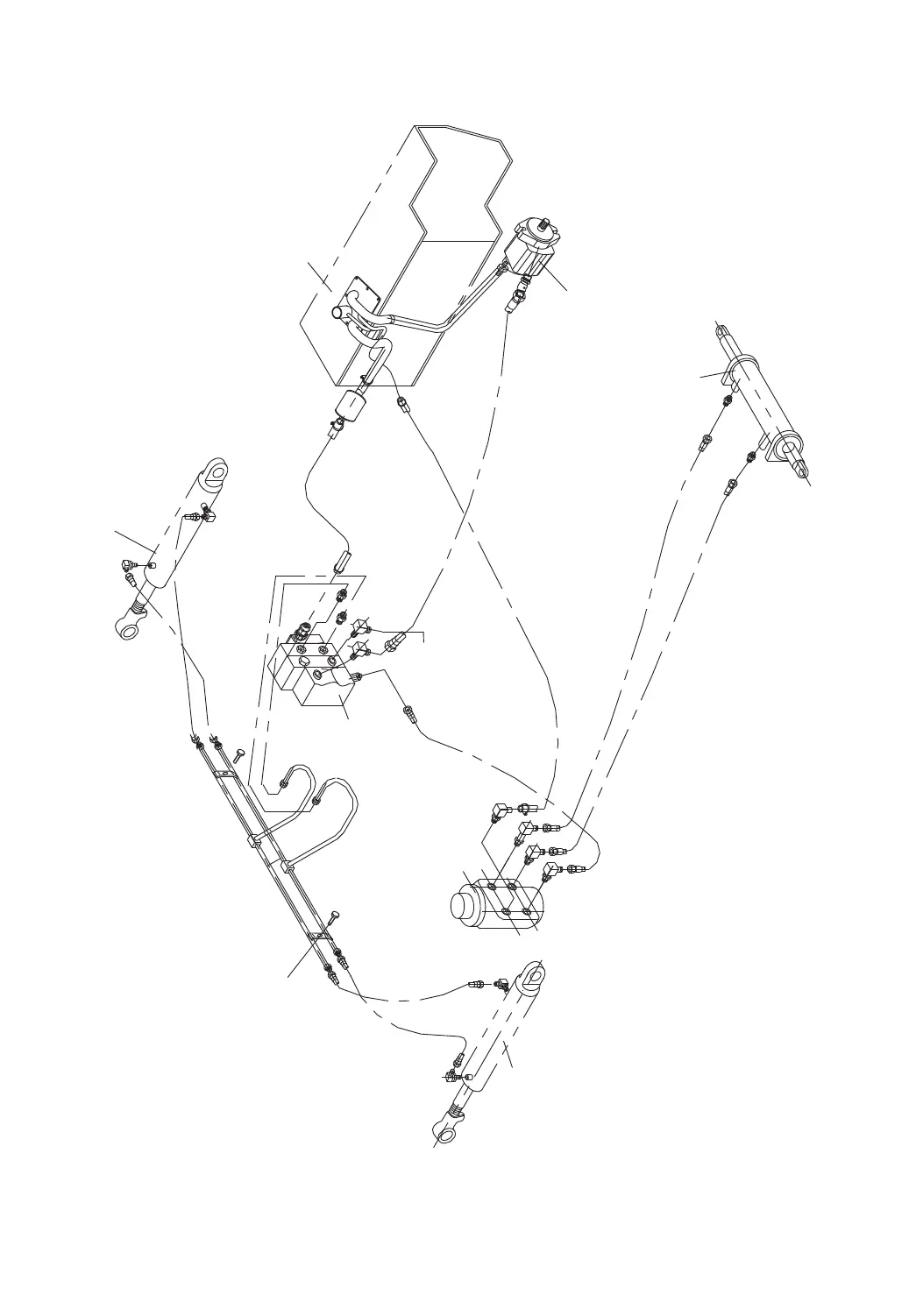

Fig.9-18 Hydraulic pipeline sketch
-87-
