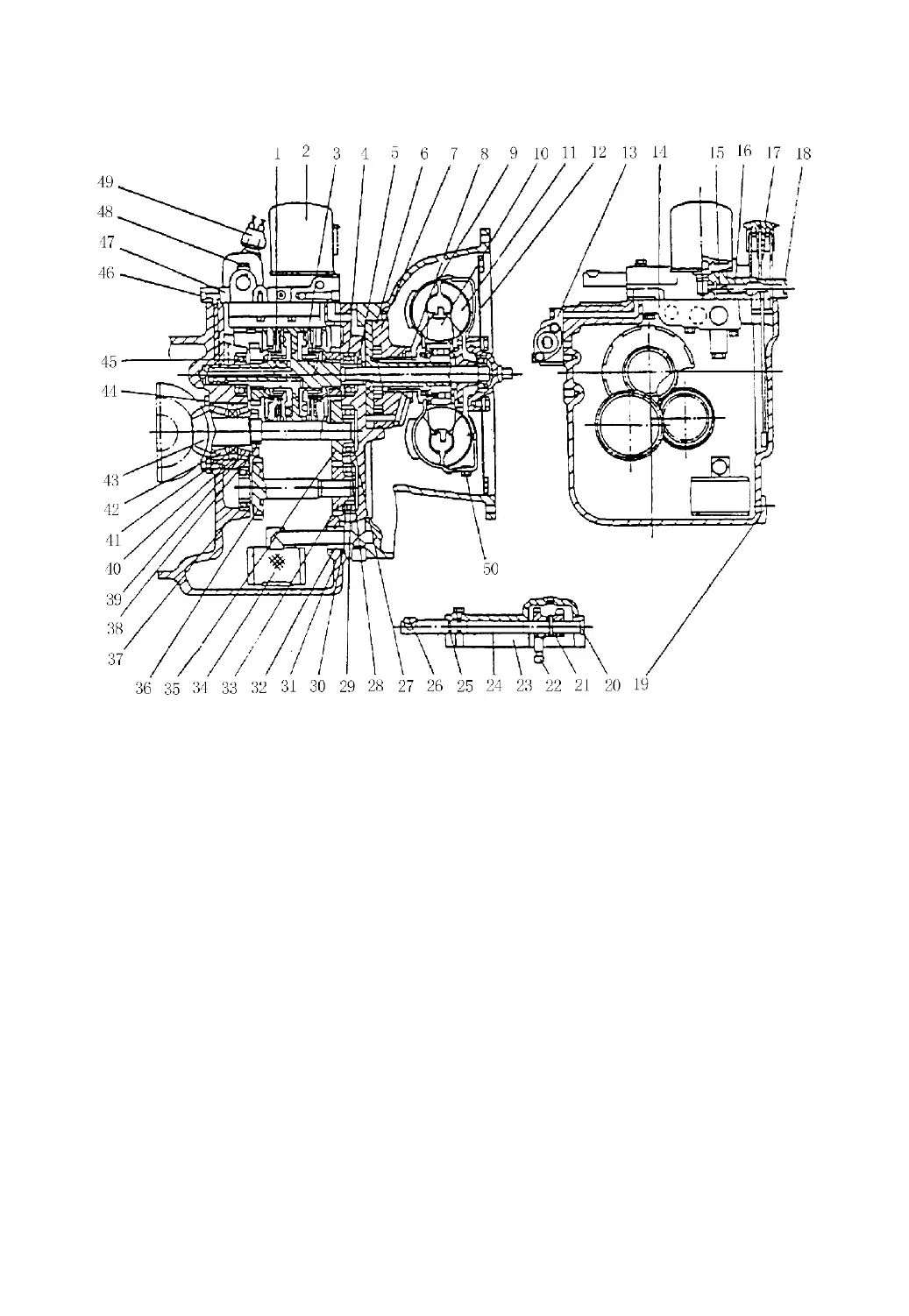

Fig. 4-1 Hydrodynamic transmission type drive unit
(1) Forward clutch
(2) Oil filter (Ⅱ)
(3)Backward clutch
(4) Single-row radial ball bearing
(5) Seal ring (A)
(6) O-ring seal
(7) Charging pump
(8) Oil seal
(9) Impeller
(10) Stator
(11) Turbine
(12) Spring plate
(13) Inching valve
(14) Control valve
(15) Piston
(16) Spring
(17) Oil inlet cover
(18) Safety valve cover
(19) Inner-hexagoned plug
(20) Plug
(21) Spring pin
(22) Shift arm
(23) Transmission case cover
(24) Shift arm shaft
(25) O-ring seal
(26) Half-round key
(27) Clip ring for hole
(28)&(29) Single-row radial ball bearing
(30) O-ring seal
(31) Clip ring
(32) O-ring seal
(33) Idler
(34) Oil filter (Ⅰ)
(35) Output gear
(36) Idler shaft
(37) Single-row radial ball bearing
(38) Nut for bearing
(39) Single-row tapered roll bearing
(40) O-ring seal
(41) Oil seal
(42) Single-row tapered roll bearing
(43) Output shaft
(44) Supporting piece
(45) Single-row radial ball bearing
(46) Inner-hexagoned plug
(47) Transmission case cover
(48) Mounting bolt
(49) Reverse lamp switch
(50) Oil drain plug
-32-
