HELI CPCD 35 - Page 57

E type snap ring

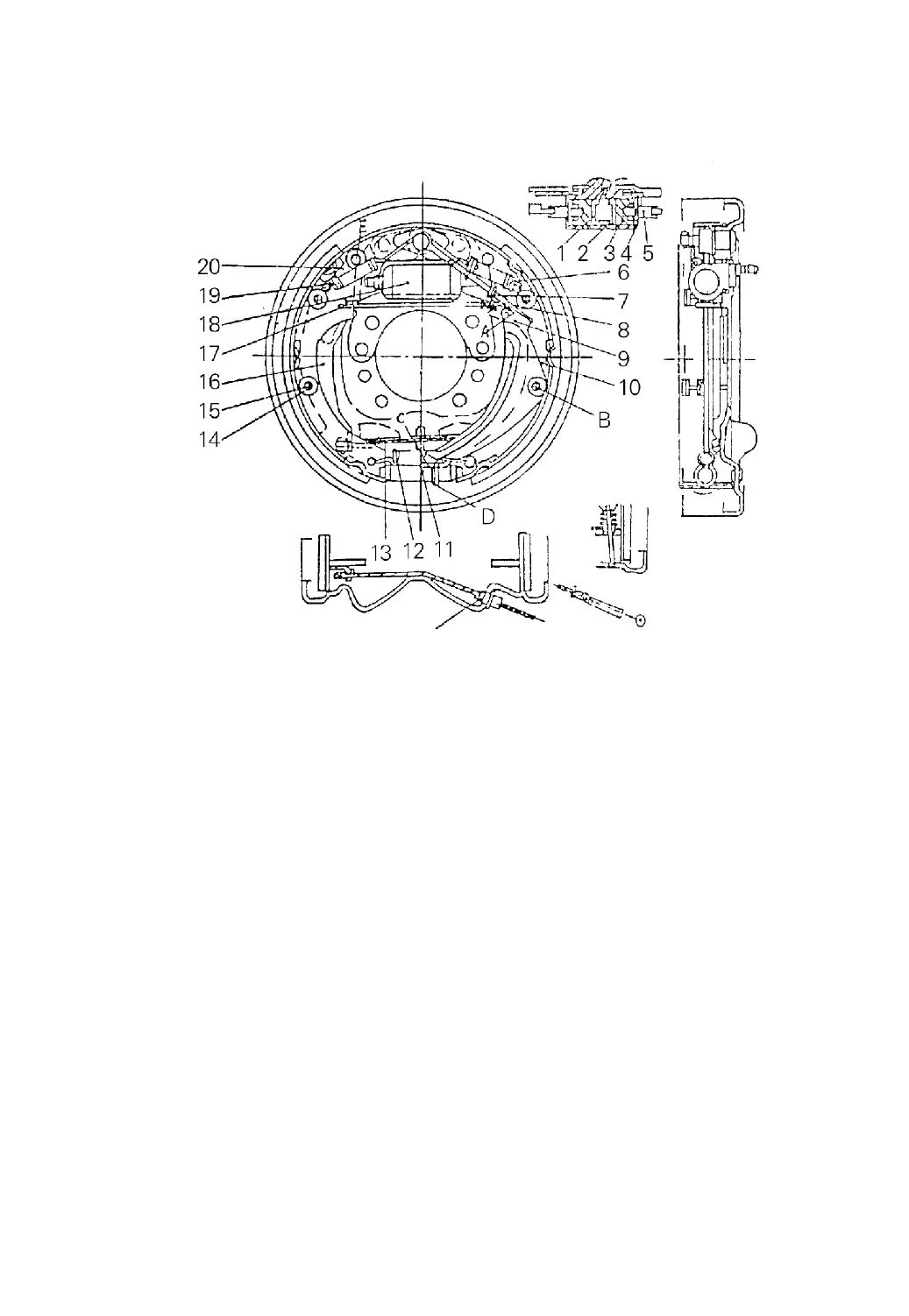

Fig.8-2 Wheel brake for 2 and 2.5 ton trucks
(1) Spring
(2) Cup
(3) Piston
(4) Cylinder body
(5) Push rod for piston
(6) Return spring
(7) Push rod
(8) Return spring
(9) Adjusting lever
(10) Secondary shoe
(11) Clearance self-adjuster
(12) Spring
(13) Parking cable ass'y
(14) Spring cover
(15) Spring pull rod
(16) Parking pull rod
(17) Parking push rod
(18) Operating cylinder
(19) Return spring
(20) Primary shoe
-55-
