8.6 Brake Pedal Adjustment (Truck with clutch) (See Fig.8-7)
(1) Make the push rod short.
(2) Adjust the pedal to the height of 111mm.
(3) With the brake pedal pressed by the idle stroke of 30-40mm, pull the push
rod out until its front end comes into contact with the master cylinder piston.
(4) Tighten the push rod lock nut.

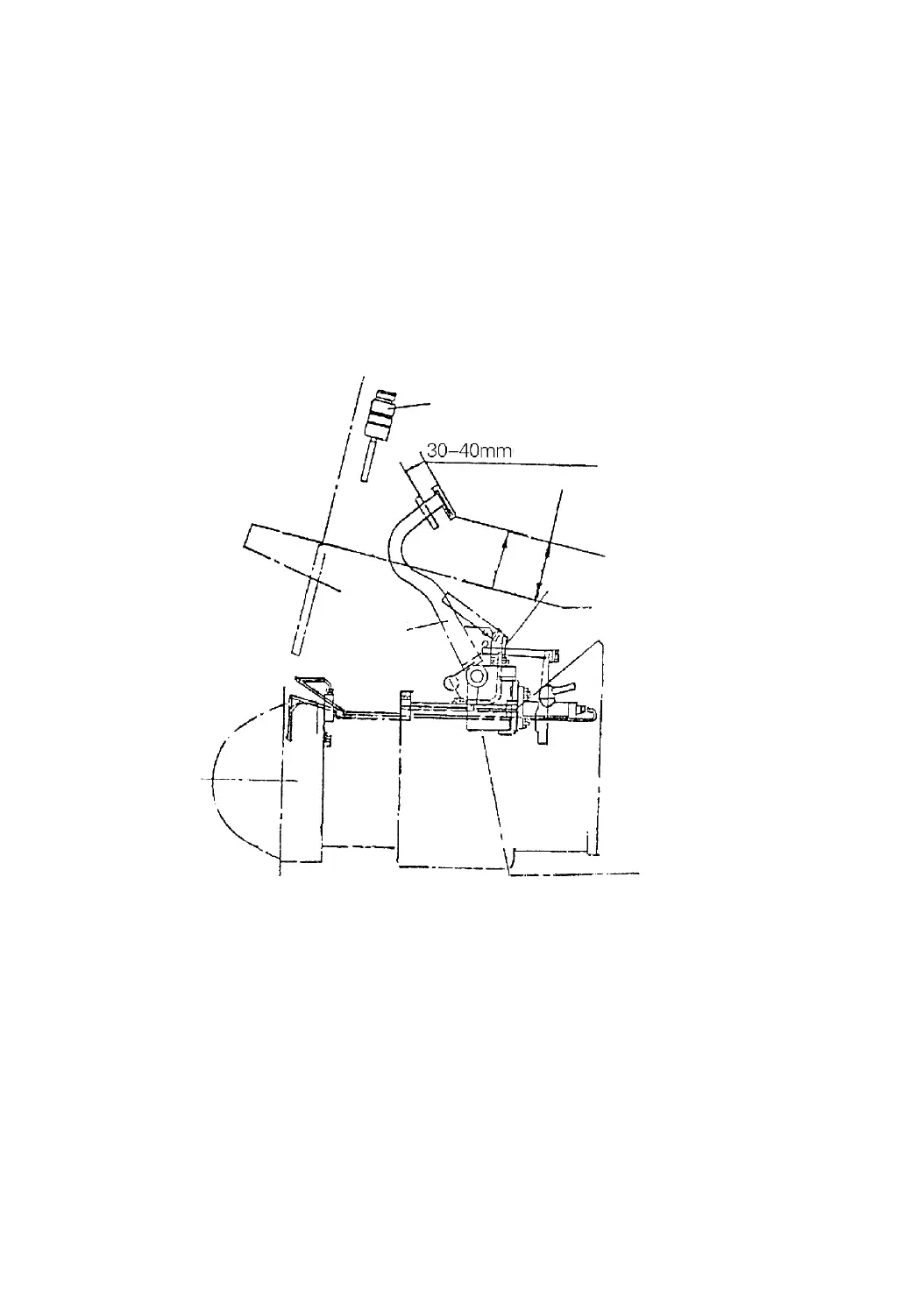

Fig.8-7 Brake pedal adjustment (truck with clutch)
1
15
m
m
Free travel stroke
Stop bolt
Pedal
Oil tank
-59-
(2-3.8t)
