connection axle and lock the bolt.
8.8 Maintenance
This paragraph covers the disassembly, reassembly and adjustment of the brake.
(The description here is mainly for 2
ton truck’s brake, the 3-3.8 ton trucks
brake is similar to it in general.)
8.8.1 Wheel brake disassembly

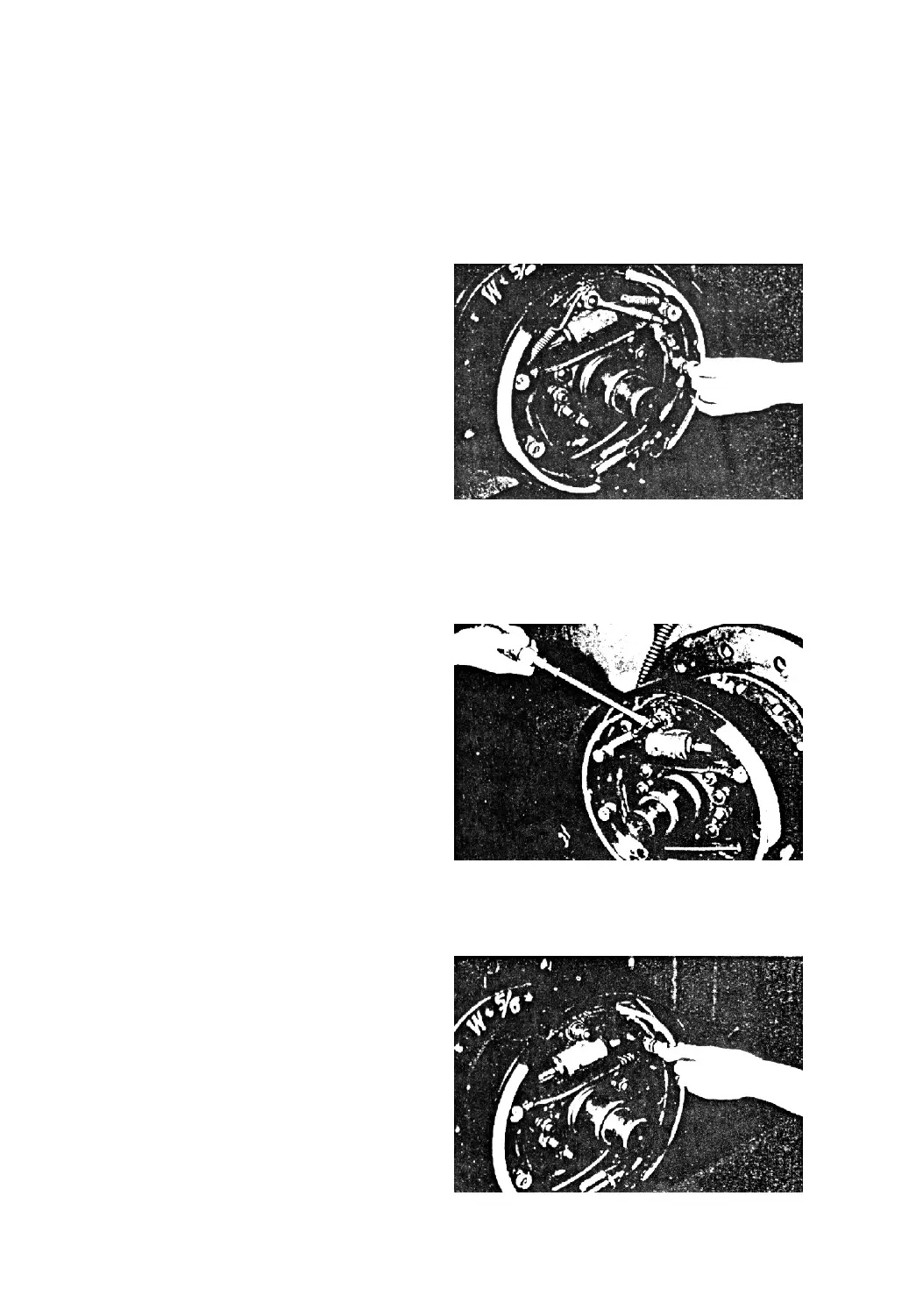

(1) Remove the hold-down
spring of secondary shoe, the
adjusting lever and push rod and its
return spring. (See Fig.8-9)
(2) Remove two shoe return springs. (See Fig.8-10)
(3) Remove three hold-down springs. (See Fig.8-11)
Fig. 8-9
Fig. 8-10
Fig. 8-11
-61-
