22

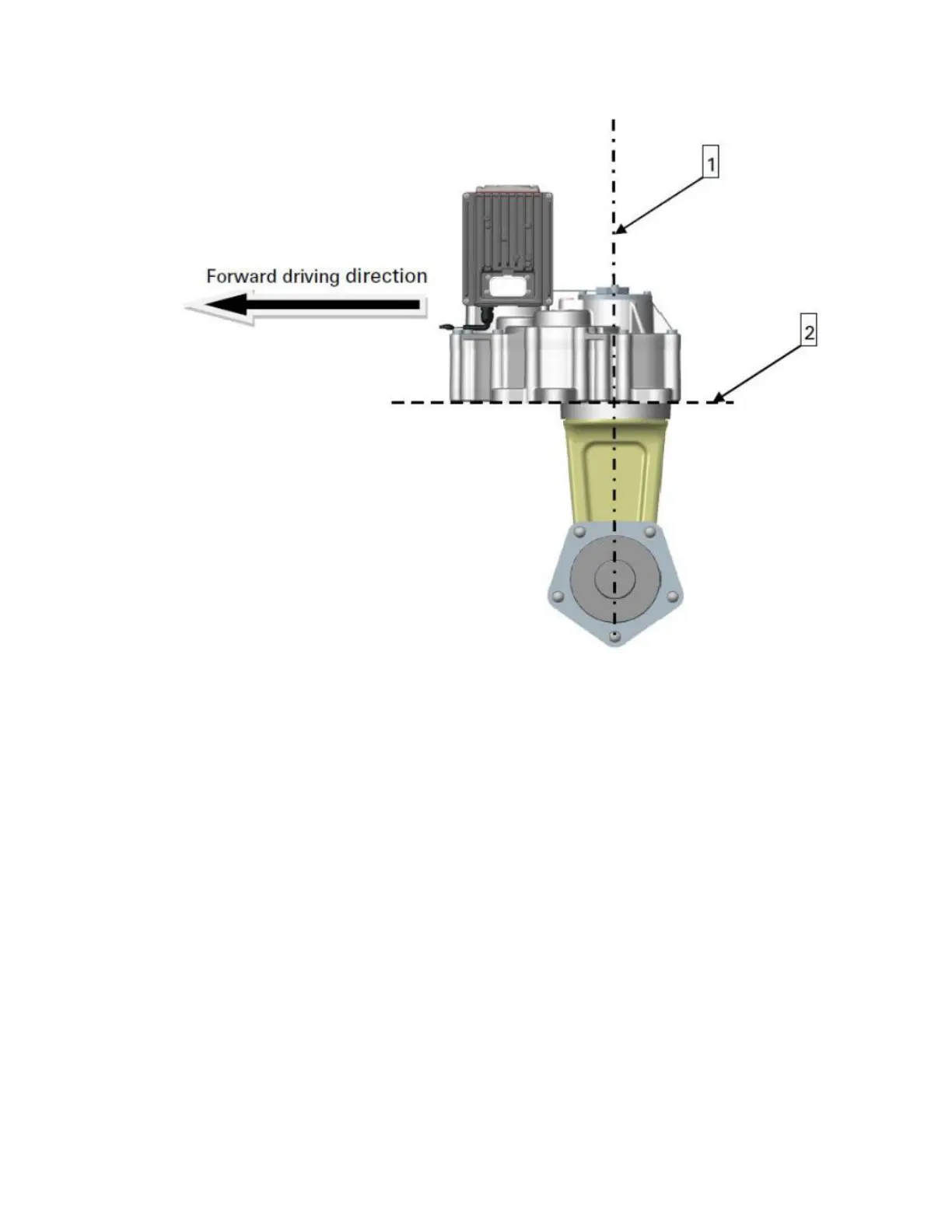

Figure 3-2 Steer axle
Position of EPS with vertical (1) and horizontal (2) reference plane of the vehicle.
3.5 Assembling
(1) See figure 3-3, first pre-tighten the 5 hub nuts;
(2) Tighten the hub nuts with regulated torque in a diagonal way.
