4.2 Instrument
(1) Display of the instrument

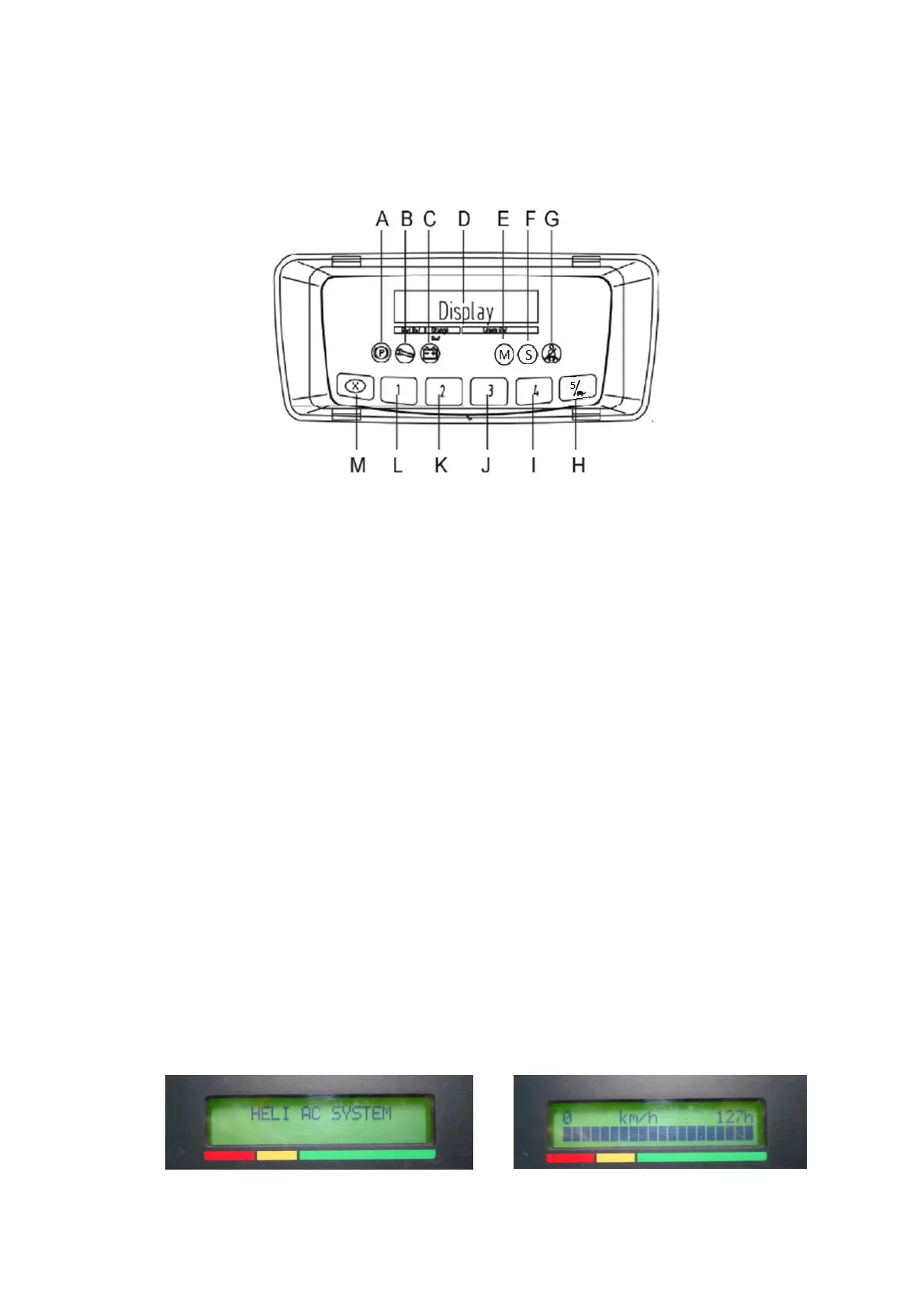

Fig. 4-2 Display of the ZAPI SMART instrument
(A) Hand brake condition indicator (B) Fault LED (C) Low state of battery
LED (D) LCD (E) Moderate traction speed working indicator
(F) Low traction speed working indicator (G) Warning lights for seat switch
(H) High/moderate/low speed switch/Out button (I) Set down key
(J) Parameter setting key (K) Roll down key (L) Roll up key (M) Menu key
(2) Function and application
SMART DISPLAY is an intelligent dashboard connected to the truck system by
CANBUS line. This dashboard provides the diagnostic and set-up of the whole truck
system.
Connecting the ZAPI handset or PCWIN tool to SMART DISPLAY, it is
possible to read and modify the setting of all the modules present on the CANBUS net.
The display implements an interface to the operator through a main page and a
number of submenus.
a) Turn on the key switch. When the instrument gets power “HELI AC SYSTEM”
is displayed on the LED screen. After system self-testing, battery capacity, truck
speed and traction hours will be indicated on the main page.
