26
Fig. 4-3 Display of the ZAPI instrument when power on (fault-free)
b) Battery capacity display: There are 20 grids on the battery capacity indicator.
After the truck is powered, the indicator is fully lit (20 grids) if the battery is fully
charged. After battery discharge, the battery capacity is reducing, so are the grids of
the indicator. When 20 grids of the battery capacity indicator are all off, the fault
warning symbol and battery low symbol will flash at the same time and the
travelling speed slow down, lifting action cut off. Charge the battery in time.
c) Traction travelling mode display: the driver can choose the mode through the
switch except under hand console mode. When indicator turns on, the
truck is travel with medium speed; when indicator turns on, the truck travels
with slow speed; when both and are off, the truck travels with high speed.
d) Fault code display : If fault appears, is often on and refer to Table 4-2 for
the fault code (the first line) displayed in the WINDOW，the control module No. (the
second line) of CANBUS net where the fault happens and CANBUS net information
of ZAPI.

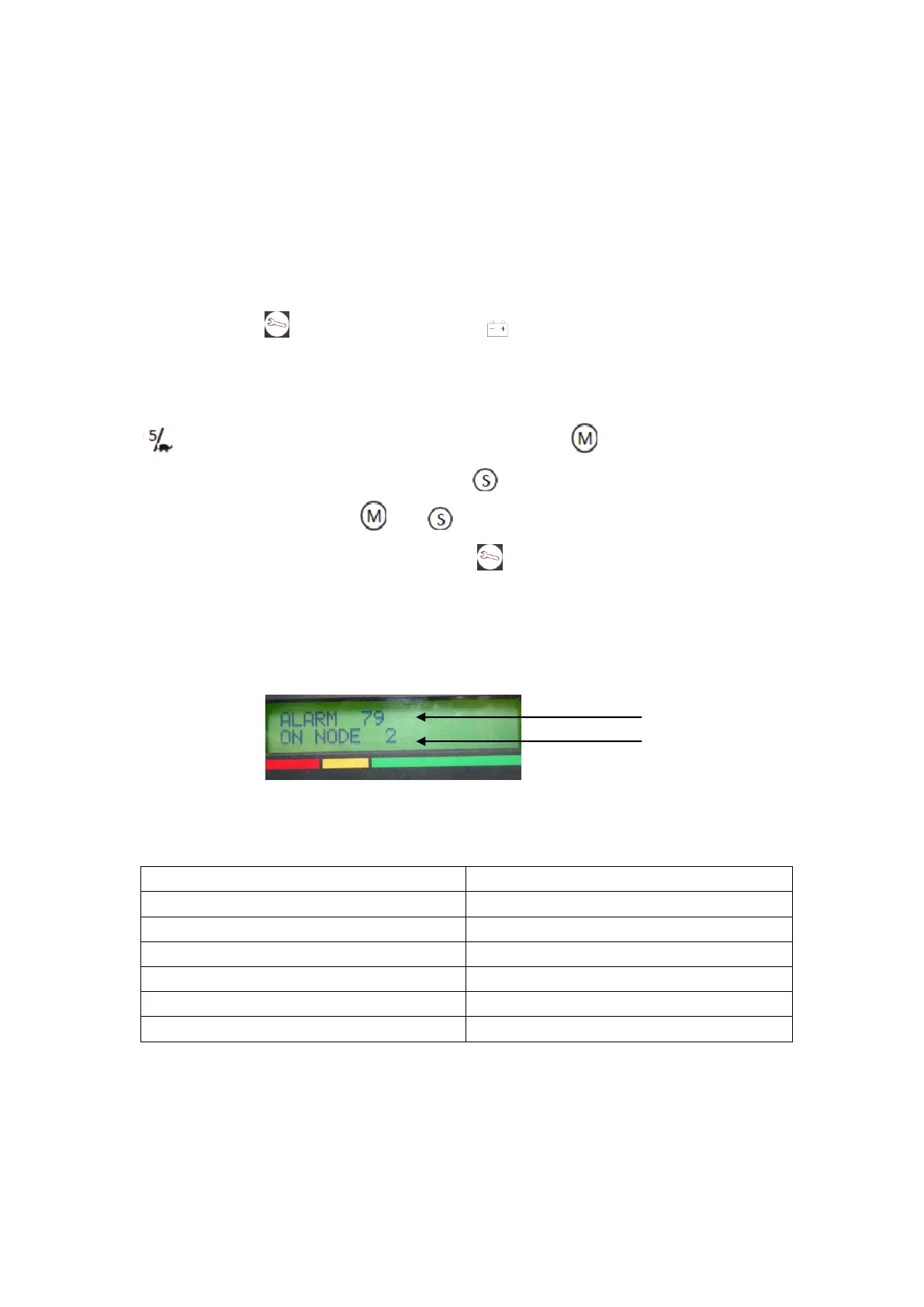

Fig. 4-4 Fault display interface of ZAPI instrument
Table 4-1 ZAPI CANBUS net information
Number associated in CANBUS net
4.3 Controller
4.3.1 General description
The three wheeled forklift of this series adoptsZAPI ACE2 motor controller
imported from Italy, so it has advantages of advanced technology of high frequency
Fault code
Control module no.
