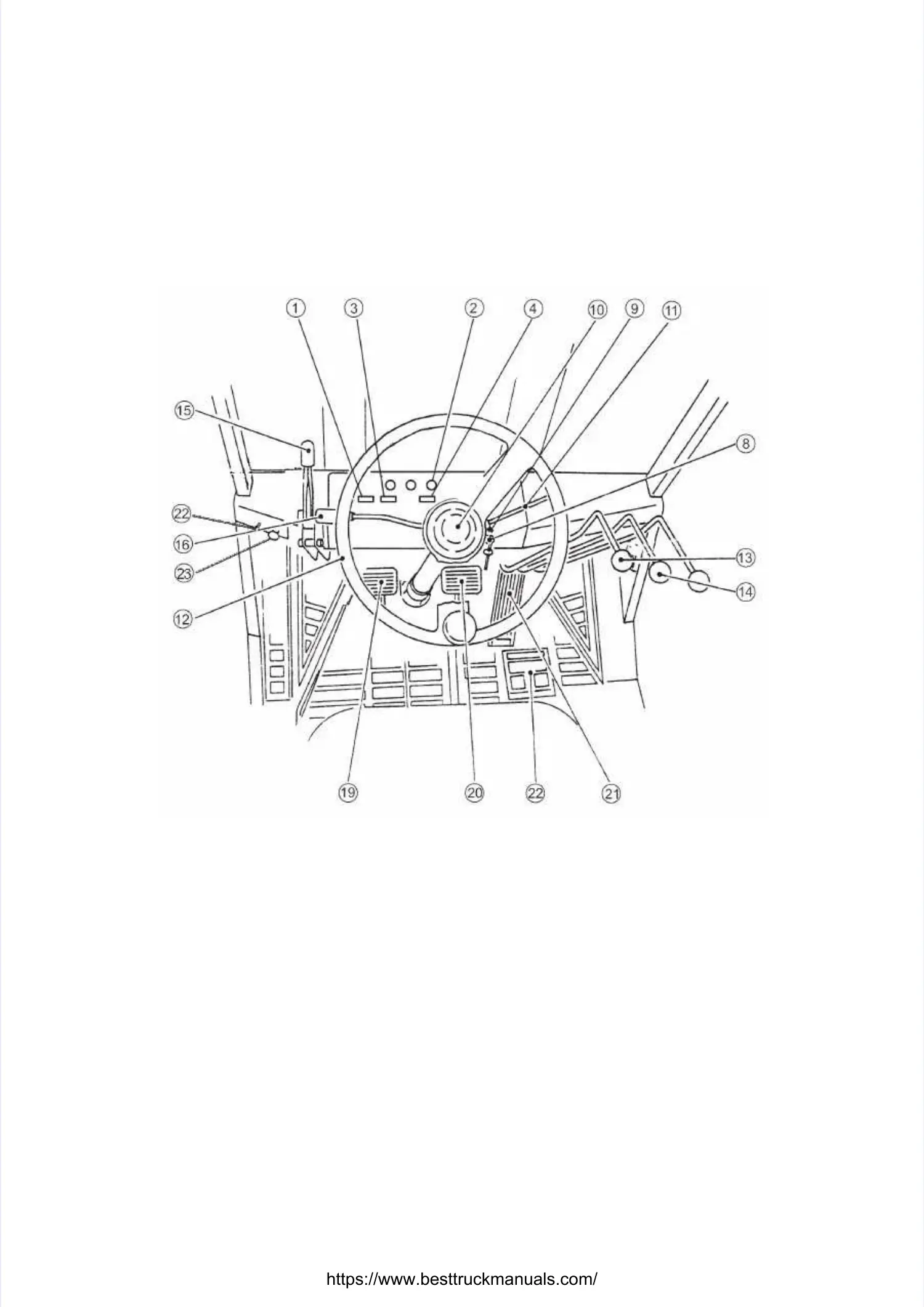

5. Arrangement sketch of instruments and controls
5. Arrangement sketch of instruments and controls
-3-3 --
1. Fuel gauge1. Fuel gauge
2. Monitor2. Monitor
3. Water temp.meter3. Water temp.meter
4. Hour meter4. Hour meter
5. Ignition switch5. Ignition switch
6. Lamp switch6. Lamp switch
7. Horn button7. Horn button
8. Turn signal switch8. Turn signal switch
9. Steering handwheel9. Steering handwheel
13. Lift lever13. Lift lever
14. Tilt lever14. Tilt lever
15. Parking brake lever15. Parking brake lever
16. Forward-reverse lever16. Forward-reverse lever
17. Inching pedal17. Inching pedal
20. Brake pedal20. Brake pedal
21. Accelerator pedal21. Accelerator pedal
22. Cable of cover22. Cable of cover
23. Cable of extinguish23. Cable of extinguish
