3/ ASSEMBLY
- 11 -
ASSEMBLY OF THE CENTER UPRIGHT TUBE

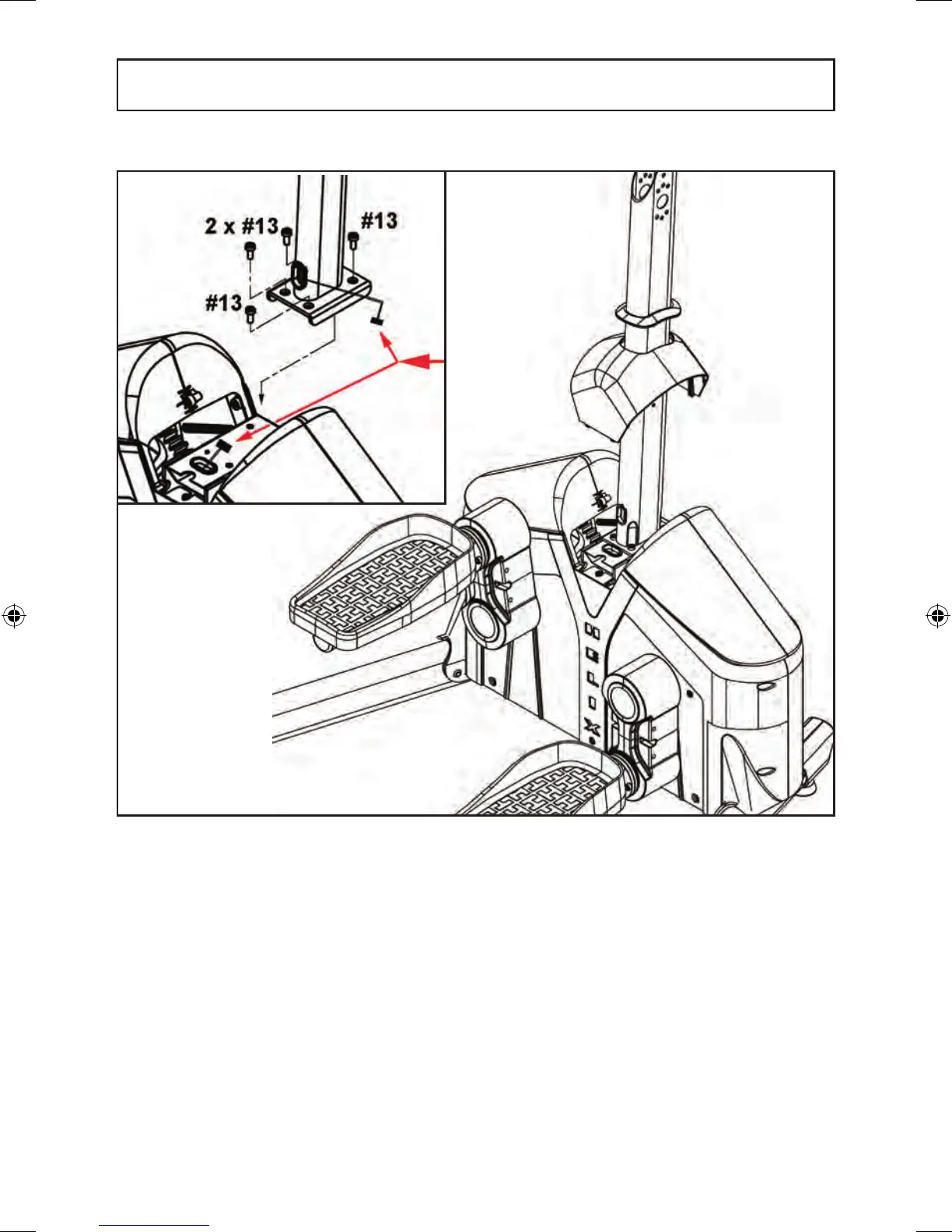

Step 7:
Place the upright post onto the main frame and install four (4) Tapered Allen
head bolts to tightly secure. After securing these bolts, connect the wire
from the frame to the wire from the upright tube.
Slide the Dome Cover down the post. The dome cover has two (2) tabs on
each side. Gently squeeze the cover together on each side near to the tabs
to allow the dome cover tabs to snap into the front and rear main housing.
Slide the Gasket ring down the post and secure into the dome cover.
