INSTALLATION
Location of washer
• The washer must be placed in a well ventilated area with the back of the washer not less
than 10cm (4 inches) from the wall, 4.5cm (1¾ inches) from the left and 2cm (¾ inch)
clear from the right side.
• Check location where the washer is intended to be installed. Make sure you have
everything necessary for correct installation.
• All foam packing including the fixing frame on the base should be removed, otherwise the
washing machine will not work.
• Do not place or store washer below 0
o
C (32 F) to avoid any damage from freezing.
• Install washer on an even, horizontal and firm floor. If the washer is installed on an
unsuitable floor, it could make considerable noise, vibrate severely and cause a
malfunction. If the washer is not level, the adjustable foot can be rotated up or down to
obtain level installation. (The adjustable fool is on the left front of the cabinet).

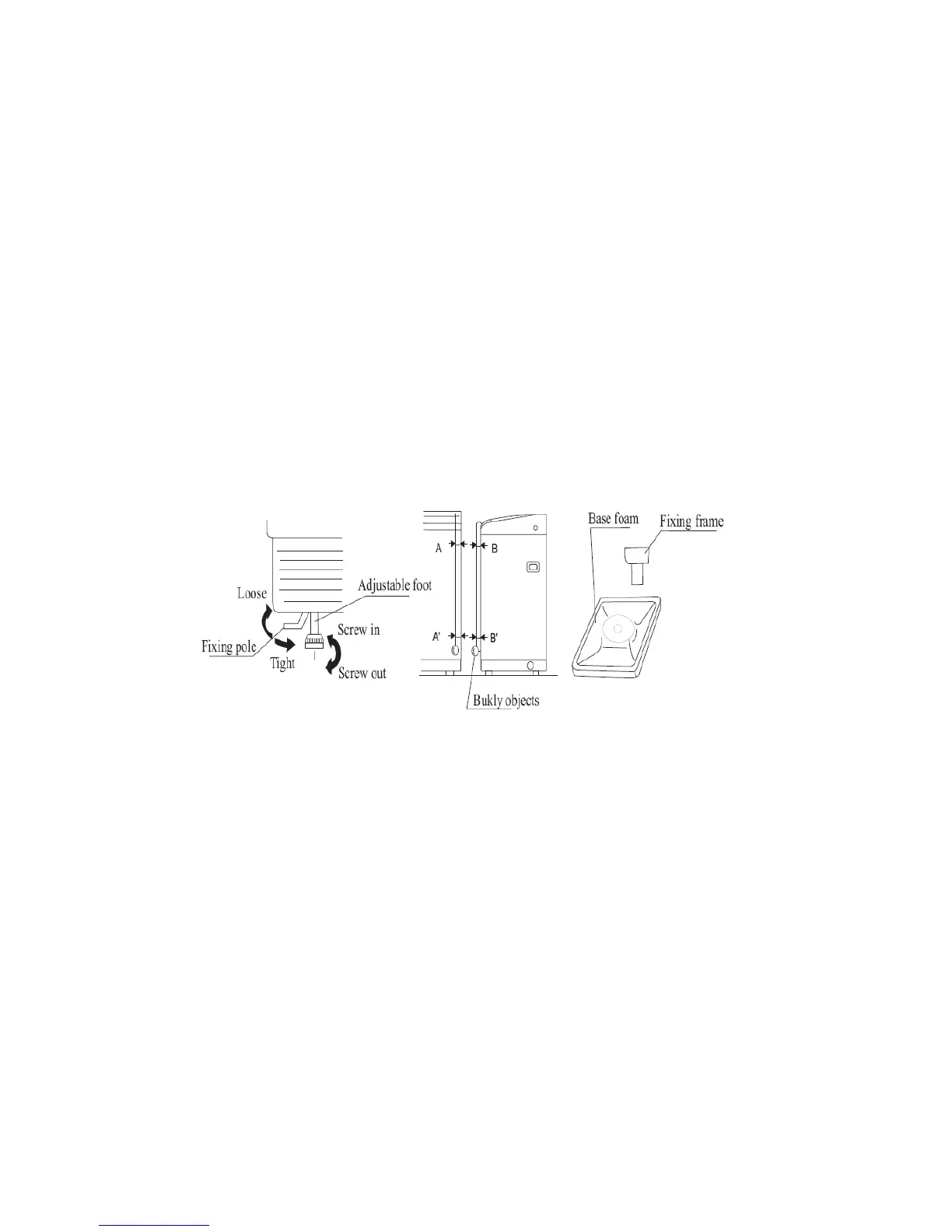

• To make sure the washer is level (refer illustration below), use a thread tied with a bulky
object and hang to the side face of the machine. Rotate the adjustable foot until A=A',
B=B' (as the illustration).
• After the adjustment the fixing pole should be tightened.
Note:
There should be no swaying of washer and all the legs should stick to the floor closely.
• Ventilation openings must not be obstructed by carpeting when the washer is installed on
a carpeted floor.
Installation of water inlet hoses
Important: For satisfactory operation, water supply pressure must be between 0.1 MPa and
0.6 Mpa.
WARNING: The washing machine is to be connected to the water supply using new hose-
sets and that old hose-sets should not be reused.
1. Attach the straight end of the water inlet hose to the thread of the Cold water tap. The
Skirtlike nut should be hand tightened plus one half turn with pliers.
2. Attach the other end of the hose to the corresponding inlet thread of the washing machine
and tighten (as 1 above).
3. Attach the other hose to the Hot water tap and the corresponding inlet thread of the
washing machine and tighten (as 1 above).
4
