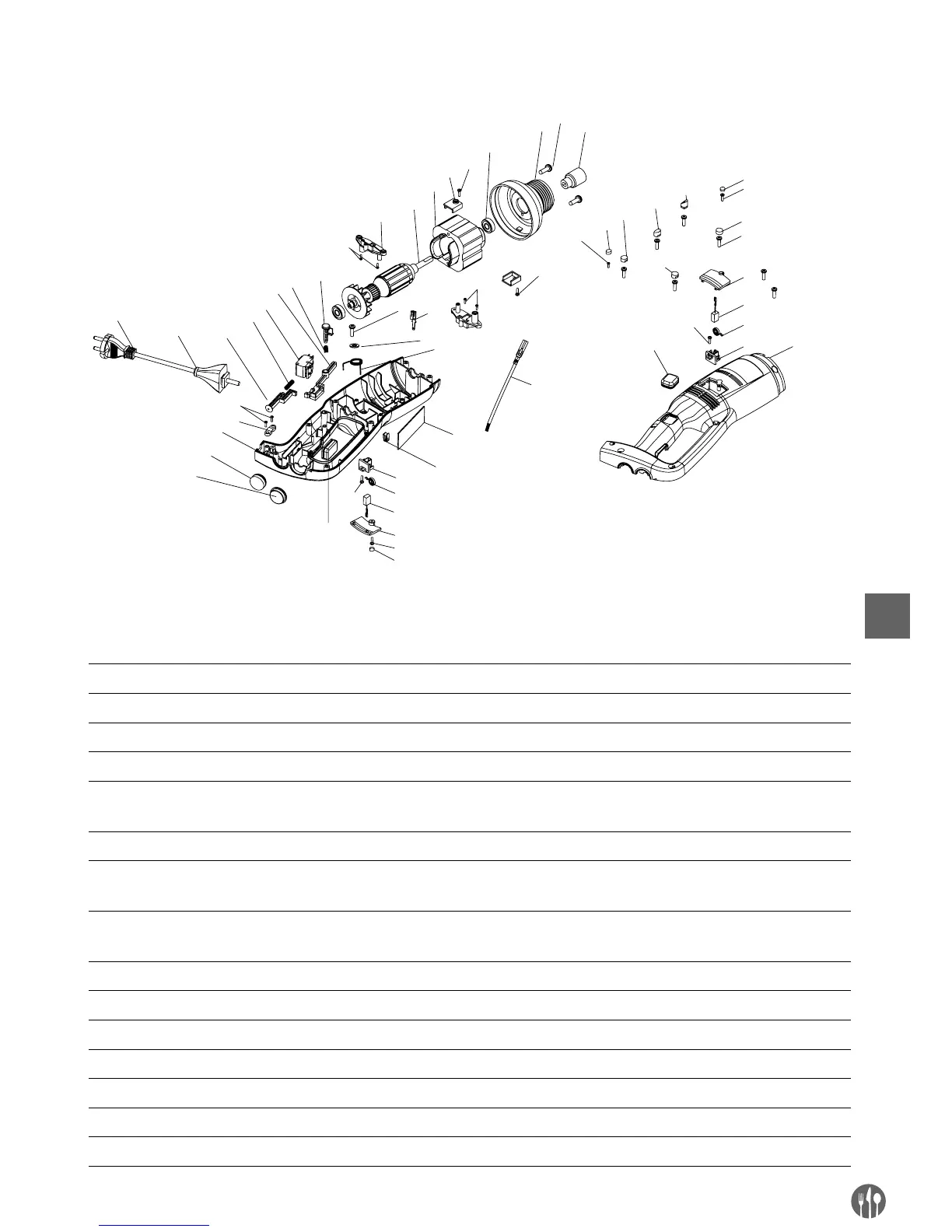

Exploded drawing & part list for model 222171, 222188 & 222133 (Main unit only)
12
13
14
17
18
20
21
23
24
25
26
29
30
31
32
37
5
6
7
8
22
27
33
28
9
4
9
9
2
1-1
28
35
36
34
38
16
15
2
39
1-1
2
4
5
6
7
8
1-3
1-4
1-7
1-5
1-6
3
10
11
19
1-2
9
Part list – model 222171, 222188 & 222133 (main unit only)
Part
No.
Part Name Part
No.
Part Name Part
No.
Part Name
1-1 Screw plunger 1 11 Left housing 26 Cable sheath
1-2 Screw plunger 2 12 Spline sleeve 27 Power cord
1-3 Screw plunger 3 13 Aluminum head 28 Pressing board screw
1-4 Screw plunger 4 14 608 Bearing 29 Pressing board
1-5 Screw plunger 5 15 Motor fixed board
Screw
30 Right housing
1-6 Screw plunger 6 16 Motor fixed board 31 Rubber push sheath
2 3*12 CB Screw 17 IB350W/IB500W Stator
(Depend on different model)
32 Speed control key
3 3*15 CB Screw 18 IB350W/IB500W Stator
(Depend on different model)
33 Switch sheath
4 M4*1 Screw 19 Brush fixed rack 34 Male plug
5 Brush cover 20 Interlocking push bolt 35 Speed control board
6 Brush 21 Interlocking push bolt Spring 36
Switch osculant staff spring
7 3246 Brush cylinder spring 22 Switch osculant staff 37 Speed control board
8 Brush rack 23 Switch 38 Female plug
9 3*12 CB Screw 24 Push bolt spring 39 Lead wire of female plug
10
Rubber interlocking protector 25 Push bolt
