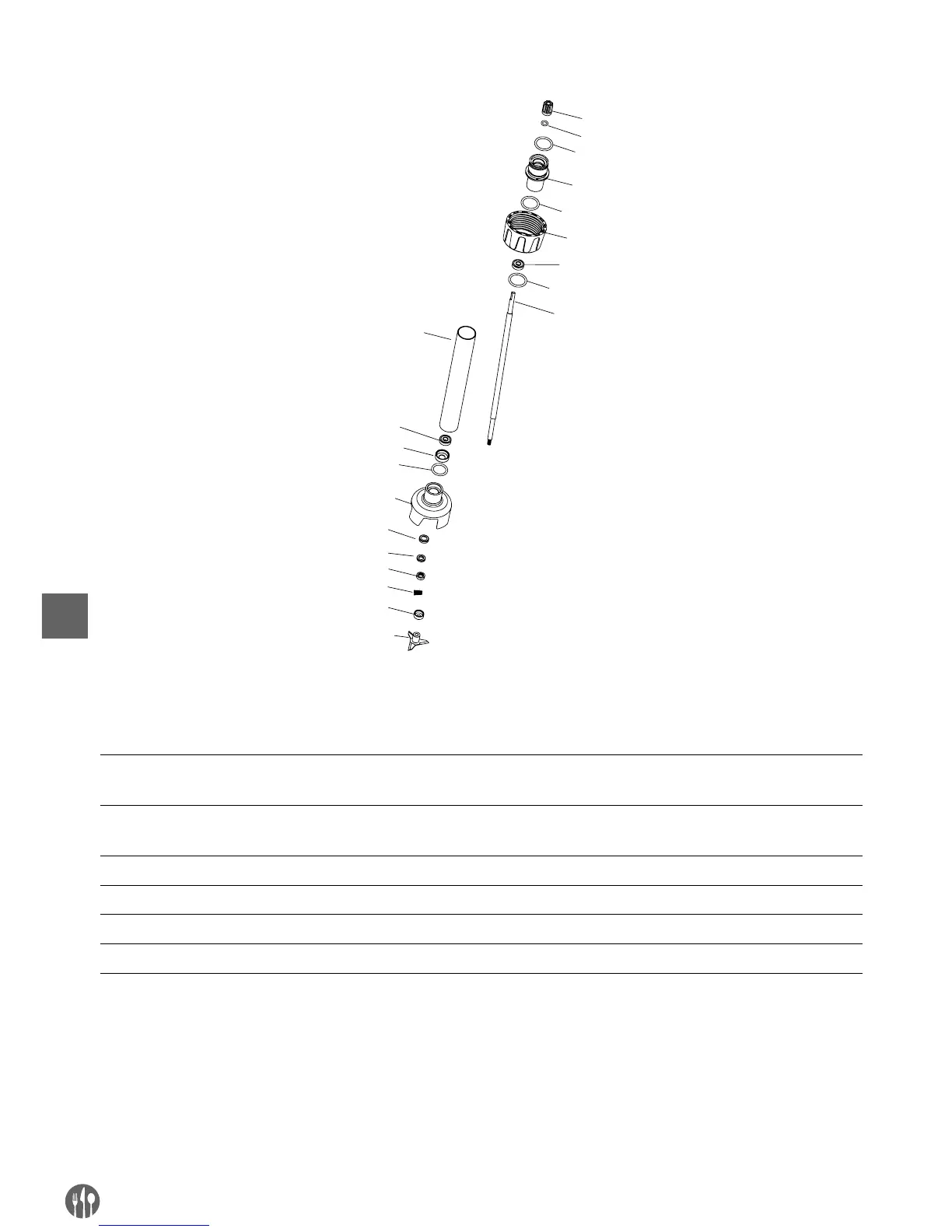

Blender shafts (Optional) for model 222171 & 222188
1
3
6
7
8
6
9
4
10
11
13
15
16
2
5
12
14
4
4
4
Part list – blender shafts (optional): 222218, 222225, 222232, 222249, 222256
Part
No.
Part Name Part
No.
Part Name Part
No.
Part Name
1 Spline sleeve 7 Output axis (Different length
depend on different model)
13 Graphite ring
2 Spline sleeve seal ring 8
304 S/S tube (Different length
depend on different model)
14 Graphite ring spring
3 Connect sleeve 9 Bearing sleeve 15 Convex ring
4 Connect sleeve seal ring 10 Knife protector 16 Blade
5 Fastening sleeve 11 Ceramic ring sleeve
6 608 bearing 12 Ceramic ring
