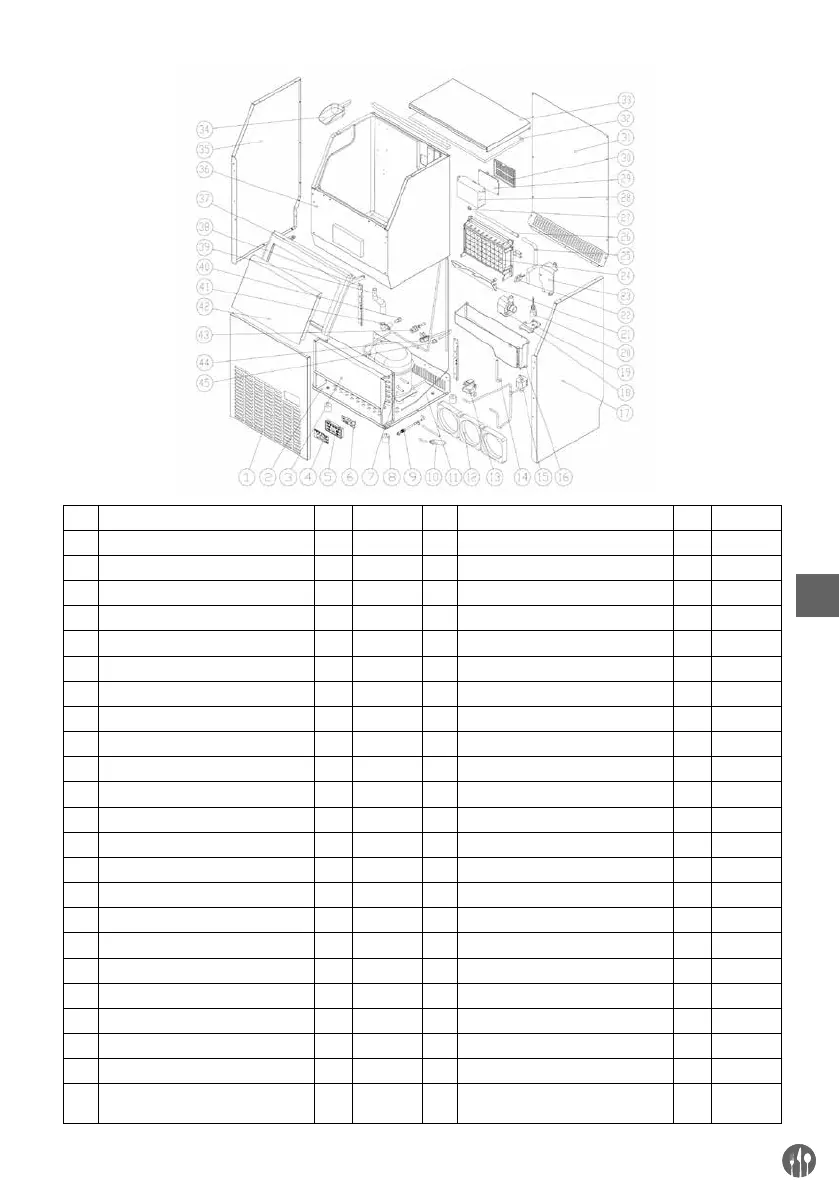

No. Parts Name Qty. Notes
1
Front panel
1
2
Bottom plate
1
3
Condenser
1
4
Operation panel paper
1
5
Operation panel PCB box
1
6
Operation panel PCB
1
7
Compressor
1
8
Adjustable foot
4
9
Service valve
1
10
Dry filter
1
11
Capillary
1
12
DC fan
3
13
Water inlet valve
1
14
Water drainage pipe of the water tank
1
15
Ice-harvesting Electro-magnetic valve
1
16
Water tank
1
17
Right side plate
1
18
Water circulation pump
1
19
Cover of the water tank
1
20
Water level detecting switch
1
21
Ice-full detecting plate
1
22
Magnetic control switch
4
23
Cover board on the right side of the
evaporator
1
No. Parts Name Qty. Notes
24
Evaporator and its frame
1
25
Water supplying pipe
1
26
Water dividing pipe, with nine holes
1
27
Cap of the water dividing pipe
1
28
Electrical PCB box
1
29
Main control PCB
1
30
Cover of the main control PCB
1
31
Rear plate
1
32
Insulation sponge of the top cover
1
33
Top cover
1
34
Ice shovel
1
35
Left side plate
1
36
Foaming inner cabinet & Ice storing bin
1
37
Door frame
1
38
Back strength plate
1
39
Water outlet pipe of the inner cabinet
1
40
Water drainage cap
1
41
Water drainage port
1
42
Door
2
43
Water inlet port
1
44
Power cord
1
45
Clipper of the power cord
1
46
Wiring
1
