PRODUCT SPECIFICATIONMICRO-MOTOR L50
Thank you for purchasing our product.
Proper maintenance and repair extends the life of the product.
Keep the instructions for use in a safe place for your reference.
Accidents caused by not following the instructions for use will be
deemed not our responsibility.
Product appearance or specification may be changed without notice.
The users are responsible for the operation and maintenance of
the product.
In the event of a problem please state model name and full
details to enable us to provide prompt attention.
WARRANTY
Handpiece - 1 year
Control box & Foot Pedal - 1 year
Warranty does not include misuse or normal wear of bearings, carbon brush,
collet chuck, spindle and armature.
Other cases
- Act of God (fire, sea wind or water, flood etc.).
- Replacing by the normal wear of the consumable parts (ball bearings, col-
let chuck, spindle, or armature etc.).
SERVICE CHARGE
In cases of fault or malfunction due to misuse by the user, for example:
- Using with wrong Input Voltage (AC Voltage).
- Misuse or improper use.
- Dropping during setting or moving.
- Using parts or accessories not recommended by manufacturer.
-
Malfunction if repaired by other than manufacturer recommended repairers.
*Design and specification of the product may be subject to be change.
2 3

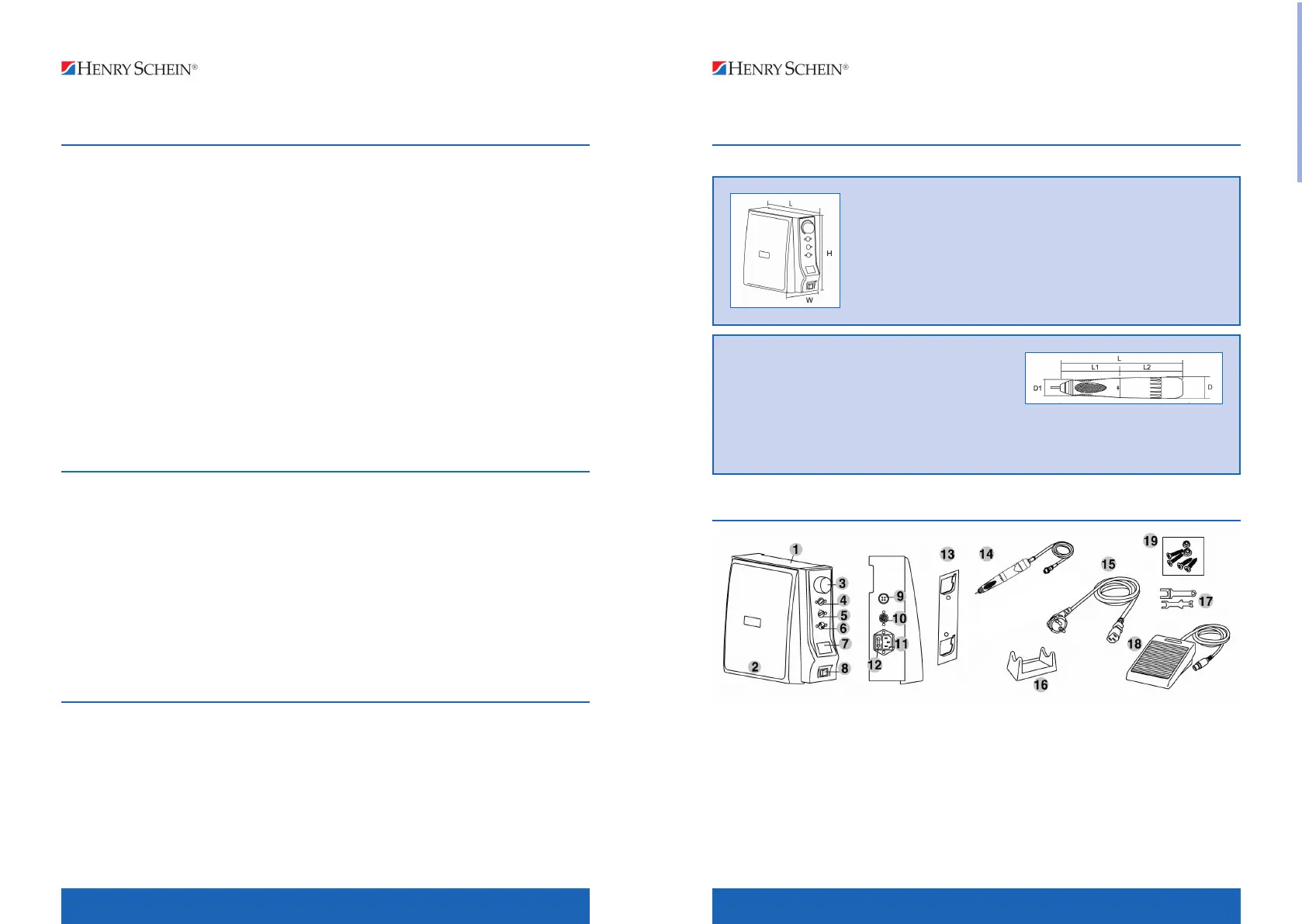

1. CONTROL BOX
2. KNEE CONTROLLER
3. VOLUME DIAL
4. FORWARD-REVERSE BUTTON
5. AUT
O-CRUISE BUTT
ON
6. HAND(KNEE)-FOOT BUTTON
7. RPM DISPLAY BOX
8. POWER SWITCH
9. MOT
OR CONNECTION
10. FOOT PEDAL CONNECTION
11. POWER CONNECTION
12. FUSE BOX
13. DEVICE FOR ATTACHMENT (Wall mounting)
14. HANDPIECE
15. POWER CORD
16. HANDPIECE STAND
17. WRENCH
18. FOOT
SPEED CONTROL
PEDAL
19. BOLTS FOR DEVICE
*Please check all items are included before use.
MICRO-MOTOR L50 (KNEE TYPE)
INPUT POWER SOURCE AC220-230V 50/60HZ
MINIMUN LOAD CURRENT 2A
WEIGHT 3Kg
DIMENSIONS (mm) W 95 - L 270 - H 230
FUSE 100 5A - 220/230 2A
HANDPIECE
NON LOAD RPM 50.000 RPM
OUTPUT 230W
MAX. TORQUE 7.8 N.cm
WEIGHT 254g
DIMENSIONS (mm) L 171 - L1 78 - L2 93 - D 27 - D1 18
PART NAME
ENGLISH
