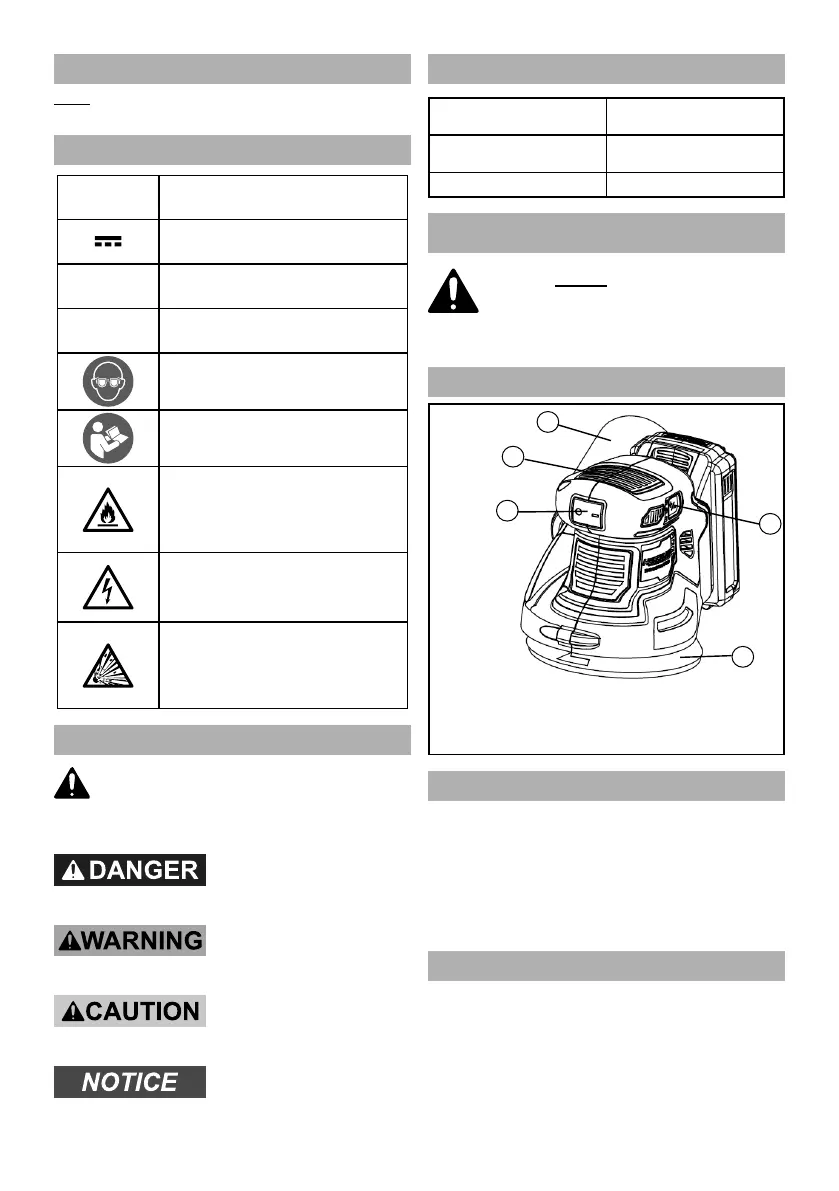

Hercules HCB013B - Specifications; Setup - before Use

Page 5For technical questions, please call 1-888-866-5797.Item 58700
Extension Cords
Note: Extension cords must not be
used with this item’s Charger.
Symbology
V
Volts
Direct Current
A
Amperes
n
0
xxxx/min.
No Load Revolutions
per Minute (RPM)
WARNING marking concerning Risk
of Eye Injury. Wear ANSI-approved
safety goggles with side shields.
Read the manual before
set-up and/or use.
WARNING marking
concerning Risk of Fire.
Do not cover Charger
ventilation ducts.
Charge on fireproof surface only.
WARNING marking concerning
Risk of Electric Shock.
Properly connect Charger’s power
cord to appropriate outlet.
WARNING marking concerning
Risk of Explosion.
Do not puncture, short, or open
battery packs and do not charge
damaged battery packs.
Warning Symbols and Definitions
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to
avoid possible injury or death.
Indicates a hazardous
situation which, if not
avoided, will result in death or serious injury.
Indicates a hazardous
situation which, if not
avoided, could result in death or serious injury.
Indicates a hazardous
situation which, if not
avoided, could result in minor or moderate injury.
Addresses practices not
related to personal injury.
Specifications
Battery Type
Hercules 20V Li-ion
57373 (sold separately)
Charger Type
Hercules Li-ion 56559
(sold separately)
No Load Speed n
0
: 8000 –12000/min
SETUP - BEFORE USE:
Read the ENTIRE IMPORTANT
SAFETY INFORMATION section at the
beginning of this manual including
all text under subheadings therein
before set up or use of this product.
Functional Description
1
2
3
4
5
1. Power
Switch
2. Grip
3. Speed Control
Switch
4. Dust Bag
5. Backing Pad
Assembly
1. Slide the Dust Bag onto the Dust Port at the back
of the Sander and slightly twist to lock in place.
2. The collection of the dust will only work if the
sandpaper has holes that line up with the 8 dust
collection holes in the Backing Pad. There are
3 other holes in the Backing Pad for the Screws
that attach the Backing Pad to the Sander.
Charging Battery Pack
Charge battery after unpacking and before using this
tool. Follow instructions included with battery charger.
