HP-Nozzle, Installation & Service Instructions
herzog systems ag
Tel. +41 71 394 19 69
Fax. +41 71 394 19 60
info@herzogsystemsag.com
Seite 9 von 10
Version 06/2022

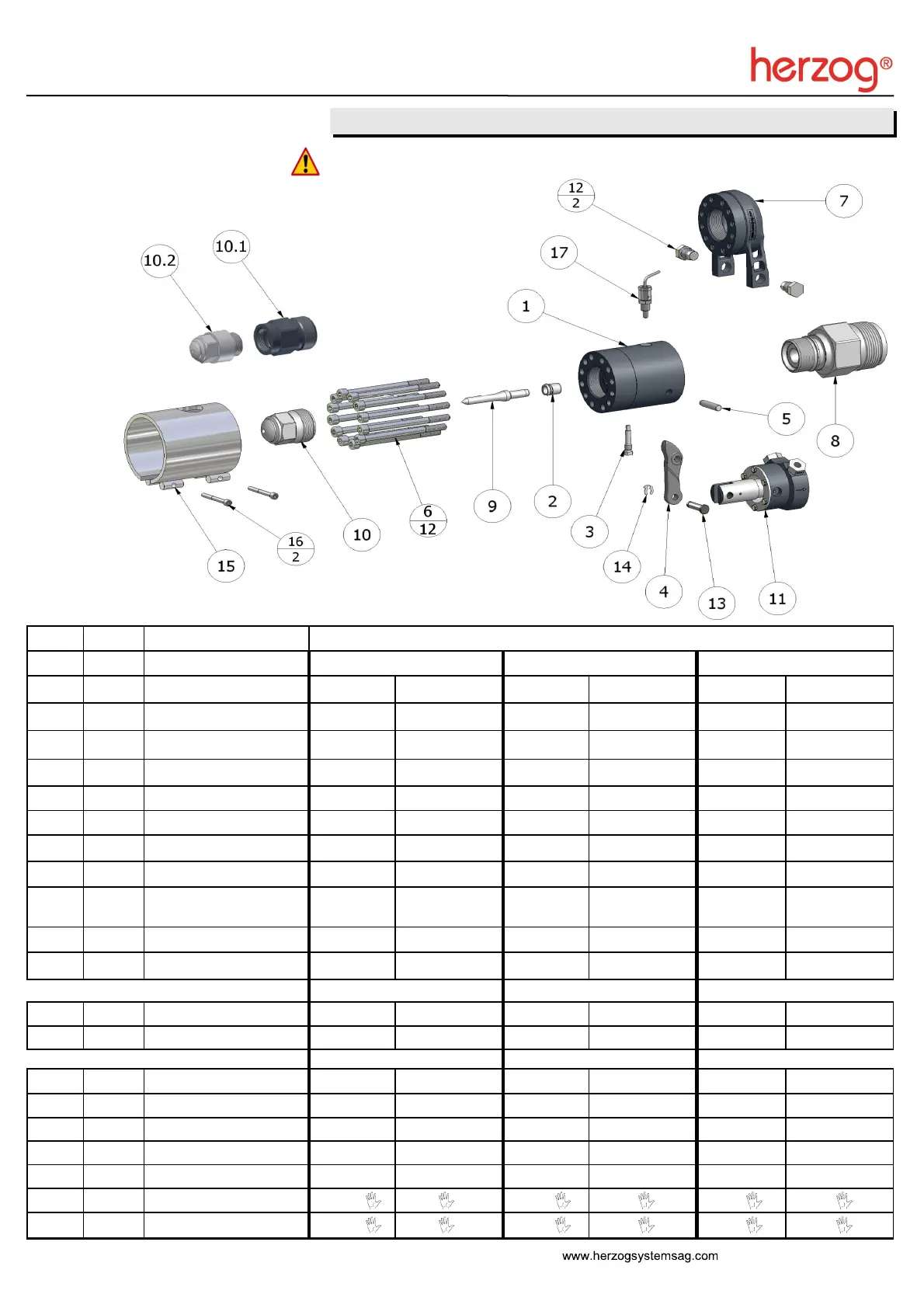

Assemble according to the numerical order.
Assembly
Pos. Qty. Description Tool size (Torque)
HP0 HP1
Metric (Nm) Imperial (lbs/ft) Metric (Nm) Imperial (lbs/ft) Metric (Nm) Imperial (lbs/ft)
1 1 Body - - - - - -
2 1 Needle bushing - - - - - -
3 1 Holding pin SW5 (3) 3/16 (2.2) SW5 (3) 3/16 (2.2) SW8 (5) 5/16 (3.7)
4 1 Lever - - - - - -
5 1 Pivot bolt - - - - - -
6 12 Screws SW5 (12) 3/16 (8.8) SW6 (25) 1/4 (18.4) SW10 (50) 13/32 (36.8)
7 1 Bracket / Adapter ring - - - - - -
8 1
Adapter (torque acc. to
machine handbook)
SW36 1 7/16 SW46 - 60 1 13/16 - 2 3/8 SW65 - 80 2 6/16 - 3 1/8
9 1 Needle - - - - - -
10 1 Tip SW27 (220) 1 1/16 (162) SW36 (500) 1 7/16 (368) SW55 (1200) 2 3/16 (885)
10.1 1 Base for two-piece tip SW36 (220) 1 7/16 (220) SW41 (500) 1 5/8 (368) SW65 (1200) 2 9/16 (885)
10.2 1 Cap for two-piece tip SW27 (120) 1 1/16 (88.5) SW32 (200) 1 1/4 (147) SW41 (600) 1 5/8 (442)
11 1 Actuator - - - - - -
12 2 Bolt screws SW13 (12) 1/2 (8.8) SW17 (30) 11/16 (22.1) SW17 (30) 11/16 (22.1)
13 1 Bolt - - - - - -
14 1 Splint - - - - - -
15 1 Heater band - - - - - -
16 2 Heater band screws SW4 5/32 SW4 5/32 SW4 5/32
17 1 Temperature sensor SW14 9/16 SW14 9/16 SW14 9/16
HP2
Note: Grease all threads with high temperature paste! See also chapter: Disassembly.
