HP-Nozzle, Installation & Service Instructions
herzog systems ag
Tel. +41 71 394 19 69
Fax. +41 71 394 19 60
info@herzogsystemsag.com
Seite 3 von 10
Version 06/2022
B)
A)

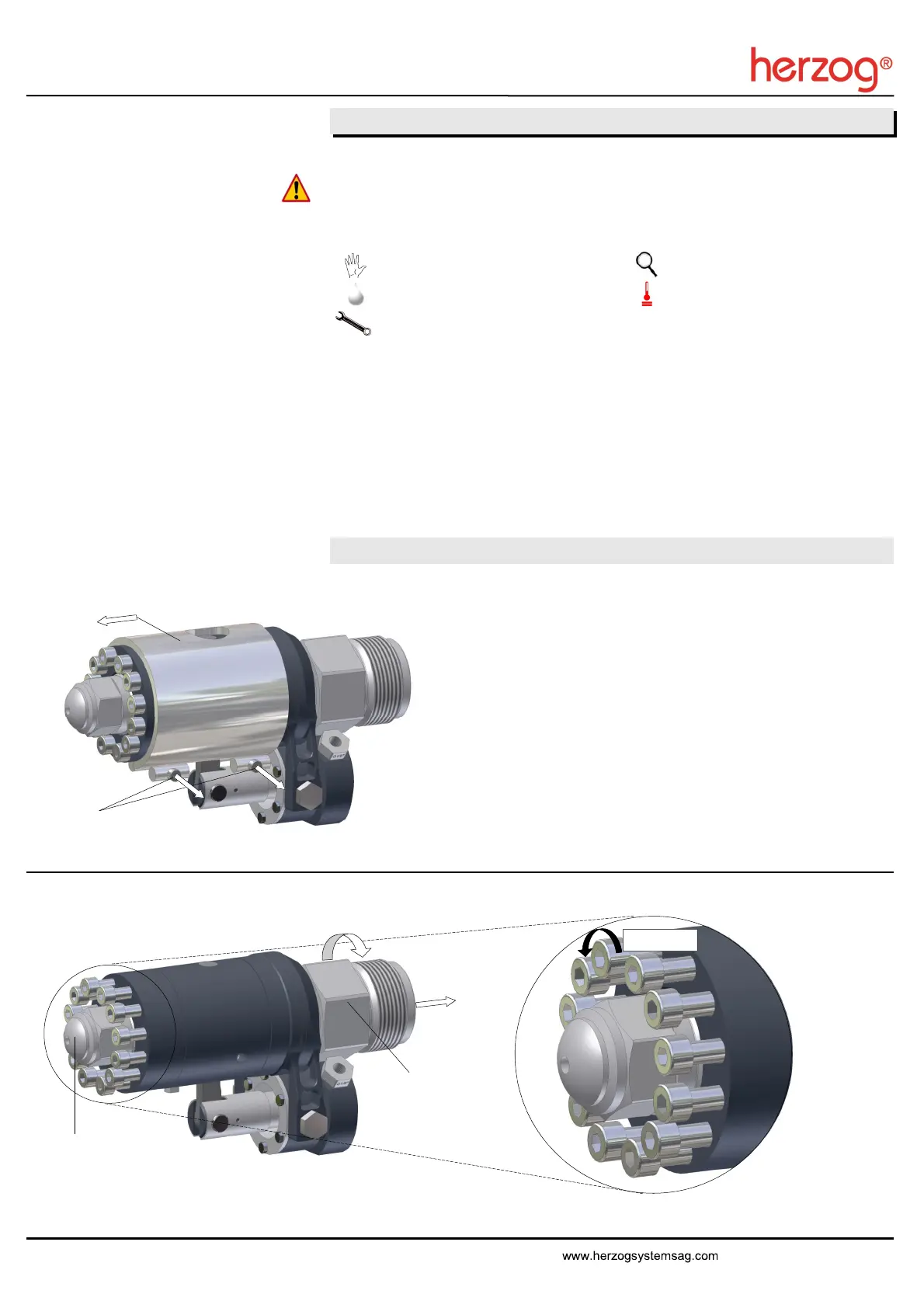

1. Loosen and respectively remove heater band screws
2. Take off heater band
Installation instructions
2.
1.
1. Loosen screws
2. Loosen tip
3. Screw the adapter out
1.
3.
Note: Loosen the screws by four rotations.
4 x 360°
Legend:
with Hand inspection
smear with high temperature lubricant temperature equalisation
tool
Read safety instructions!
Note:
Nozzle is delivered pre-assembled. The following instructions are for installation on the
machine. For easier handling remove the actuator.
Tools required:
Hexagonal wrench, allen key, ring spanner, socket wrench, pliers, punch.
See chapter Assembly for tool sizes and torques.
Installation steps A) - G)
