Herzog HP - Installation Steps C); Installation Steps D); Installation Steps E)

HP-Nozzle, Installation & Service Instructions
herzog systems ag
Tel. +41 71 394 19 69
Fax. +41 71 394 19 60 info@herzogsystemsag.com
Seite 4 von 10
Version 06/2022

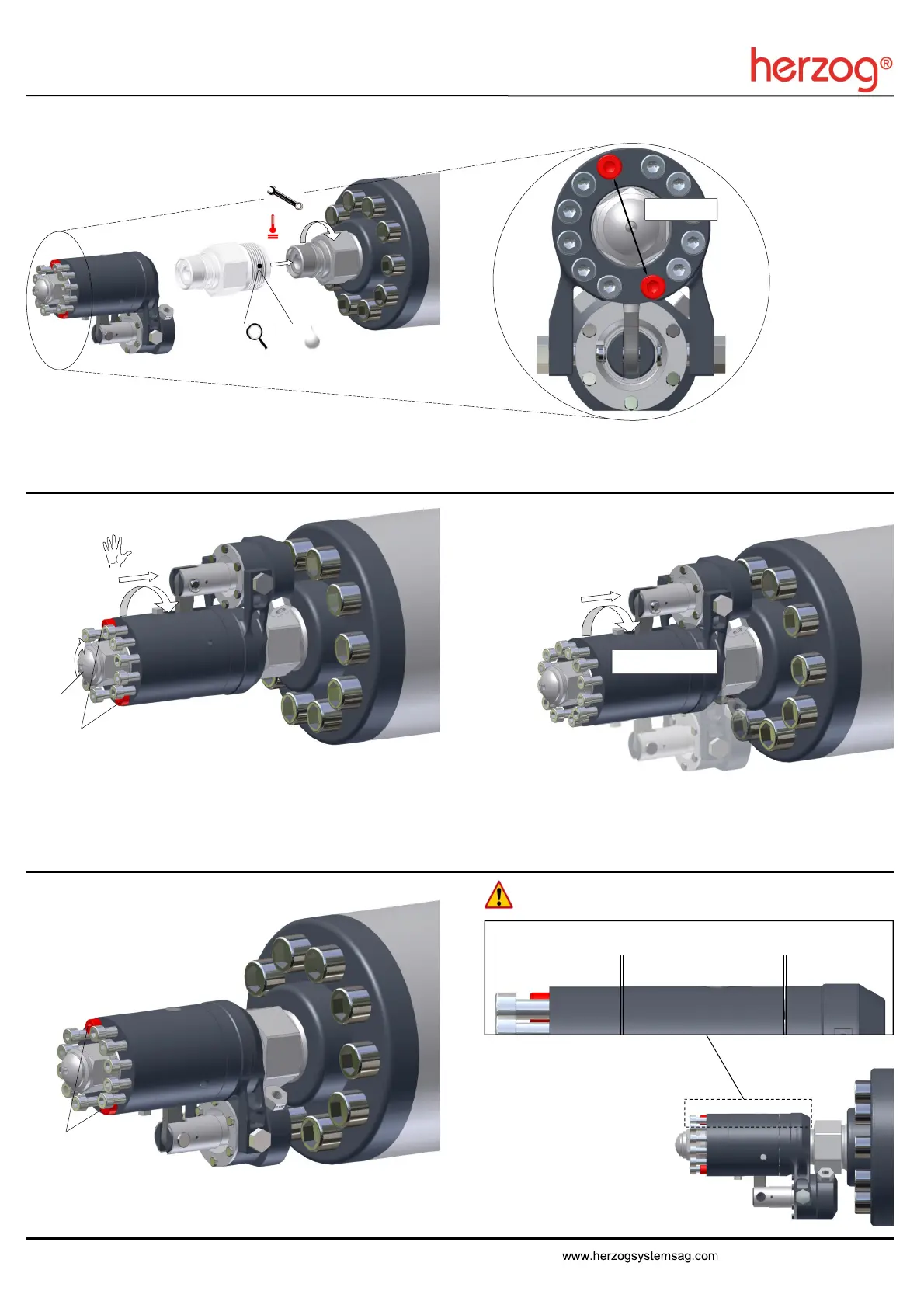

C)
3.
1. 2.
1. Check surfaces and threads
2. Smear adapter thread with high temperature lubricant
3. Mount adapter; await temperature equalisation and tighten acc.
to machine handbook
4.
4. Tighten two screws crosswise
crosswise
D)
1. Screw nozzle onto the adapter until contact
2. Screw in tip further until contact
3. Loosen the two previously tightened screws by four rotations.
4. Screw in tip approx. 180° further
3.
1.
5. Align: Screw nozzle clockwise further onto the machine
Note: min. ¼ rotation
5.
Align nozzle
Rotate clockwise
E)
1. Tighten two crosswise screws
2. Check gap between body and adapter ring max. 2.5 mm
1.
2.
ll = min. 0.5 mm to max. 2.5 mm ll = min. 0 mm to max. 1 mm
Adapter ring gap nonexistent: Loosen the two screws
and screw the nozzle 360° clockwise.
2. + 4.
tip ring adapter ring
