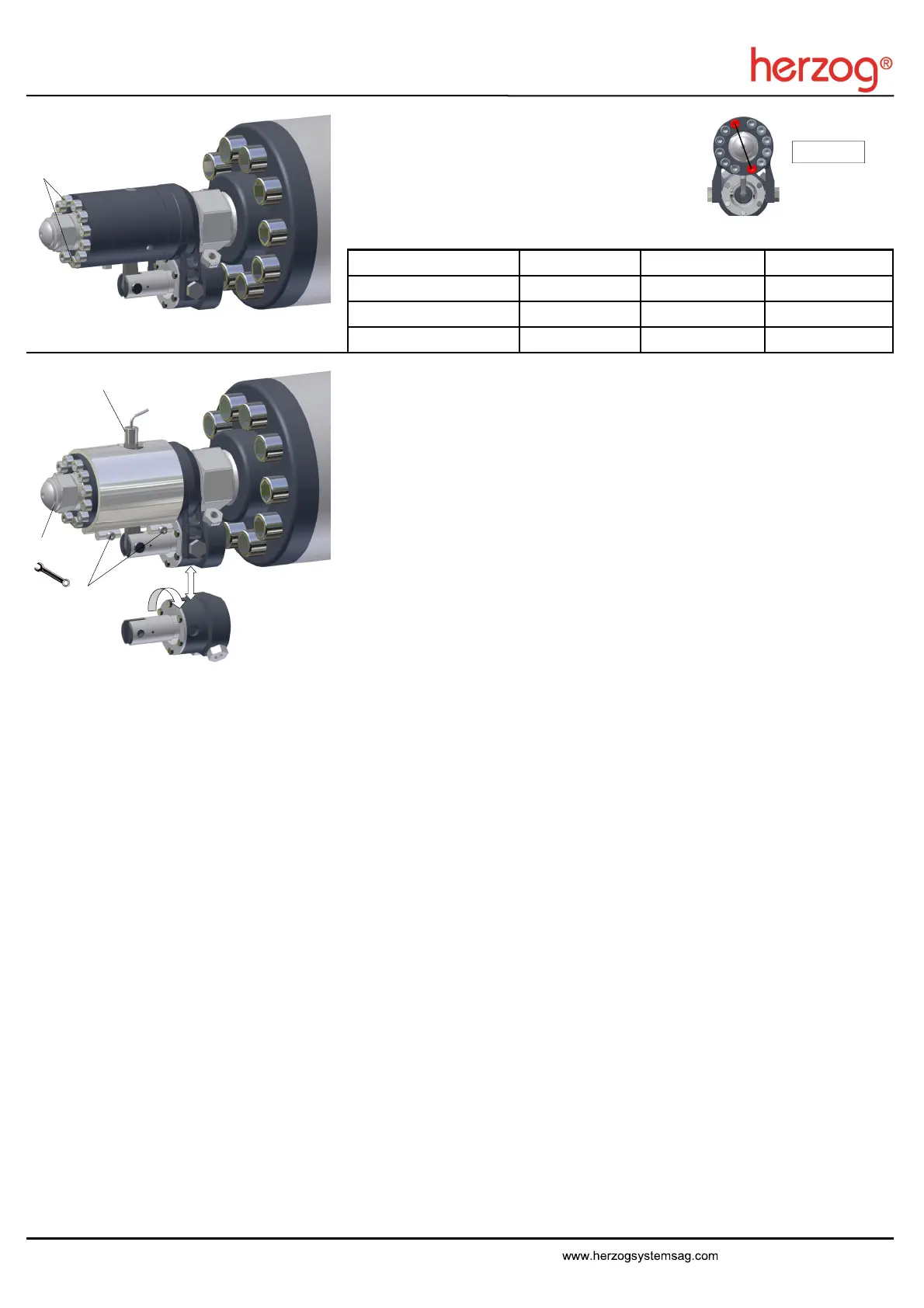

Herzog HP - Installation Steps F); Installation Steps G)

HP-Nozzle, Installation & Service Instructions
herzog systems ag
Tel. +41 71 394 19 69
Fax. +41 71 394 19 60 info@herzogsystemsag.com
Seite 5 von 10
Version 06/2022
F)
Torque HP0 HP1 HP2
1. pass handtight handtight handtight
2. pass 7 Nm 15 Nm 35 Nm
3. pass 10 Nm 22 Nm 45 Nm
4. pass 12 Nm 25 Nm 50 Nm
1. Tighten all screws in a crosswise fashion
crosswise
1.
1. Mount heater band (1a) and temperature sensor (1b)
2. Attach flexible actuator pipe connections
Note: The actuator can be rotated 180° to suit
3. Tighten tip with torque according to chapter Assembly*
* Tip is already tight when mounting step E) has been correctly observed and the
required gap exists between tip-ring and the nozzle body
G)
1b.
1a.
3.
2.
