Electrical Commissioning
5.1.2. HE 5731 Modular

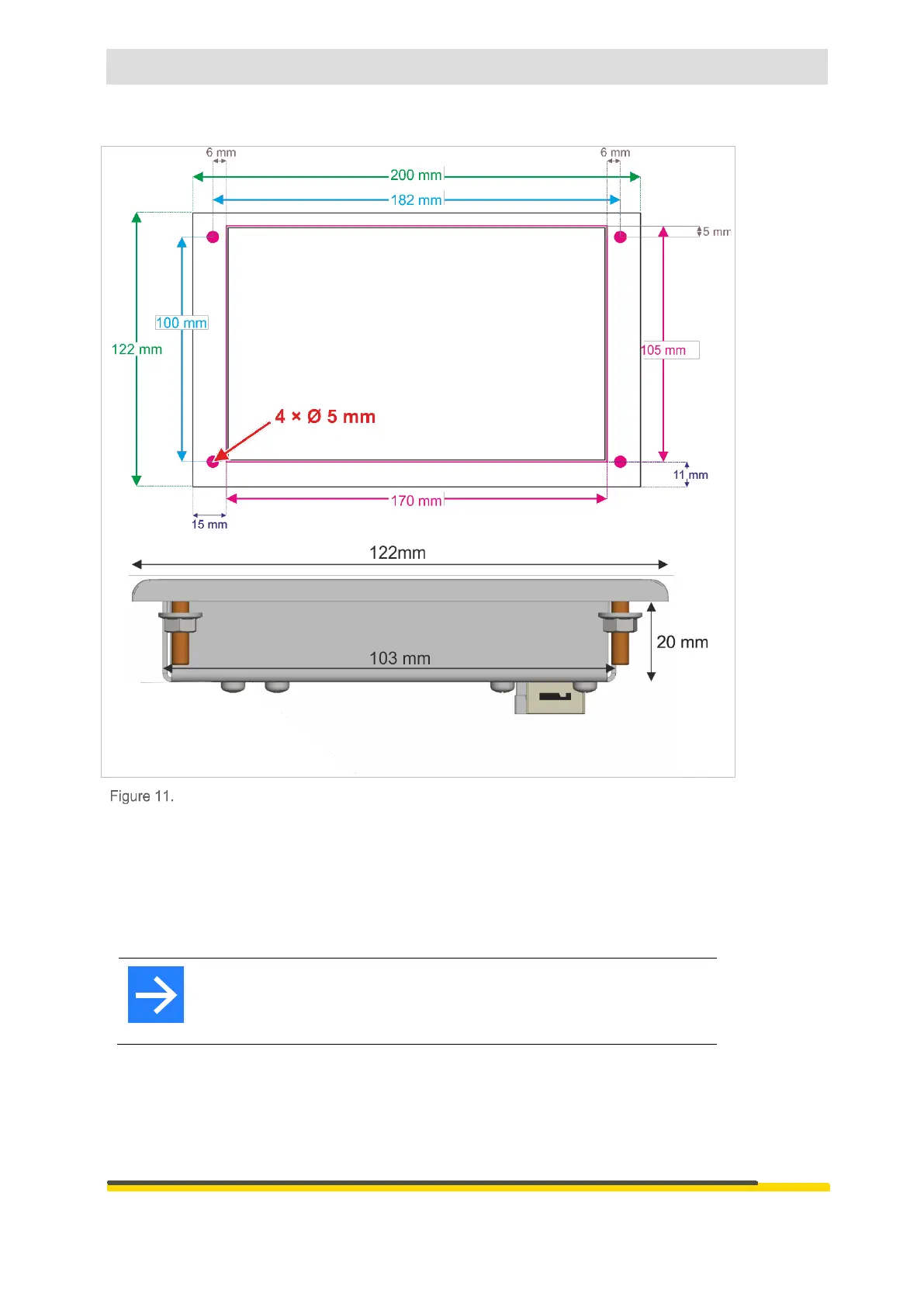

Dimensions operating unit (panel mounting housing)
Scope of delivery
 HE 5731
 Operating instructions # 373344
 Drilling jig #373222 (only for the operating unit HE 5731 Modular)
Note!
Upon receipt, check the delivery for completeness and visible defects. In
the event of a complaint, contact your responsible HESCH representative
immediately
Section
170 × 105 mm
