5. Assembly
The ambient temperature at the installation point must not exceed the permissible
temperature for nominal use specified in the technical data. The device version in
compact housing may be mounted in areas of explosion class EX ATEX Zone 22 (see
nameplate on device housing). The special regulations must be observed, see chapter
2.2 Safety in the individual operating phases.
5.1. Dimensions
5.1.1. HE 5731 Compact

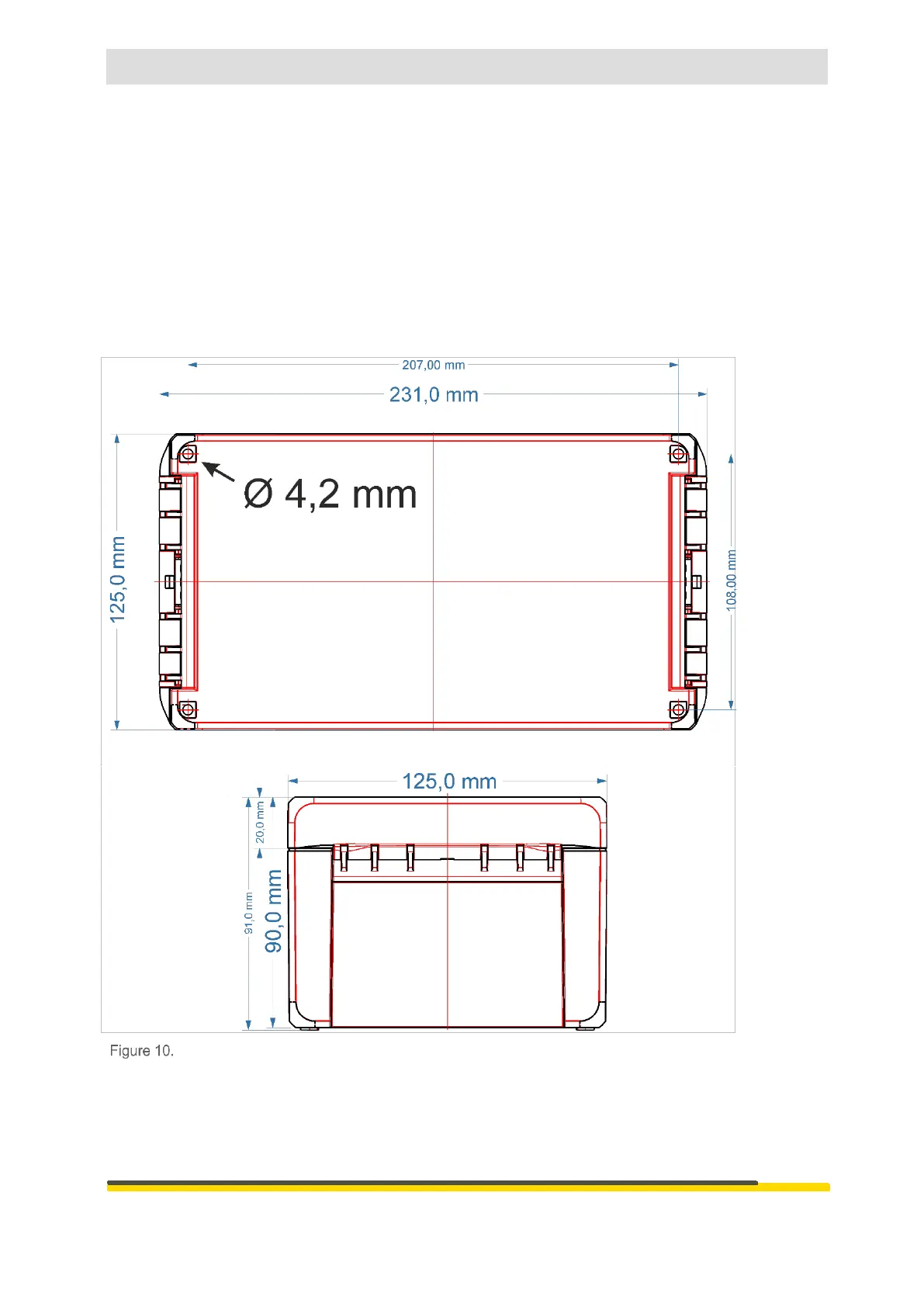

Dimensions of compact housing (without screw connections)
