HE 5731 Operating instructions
23
# 373344, Version 1.5

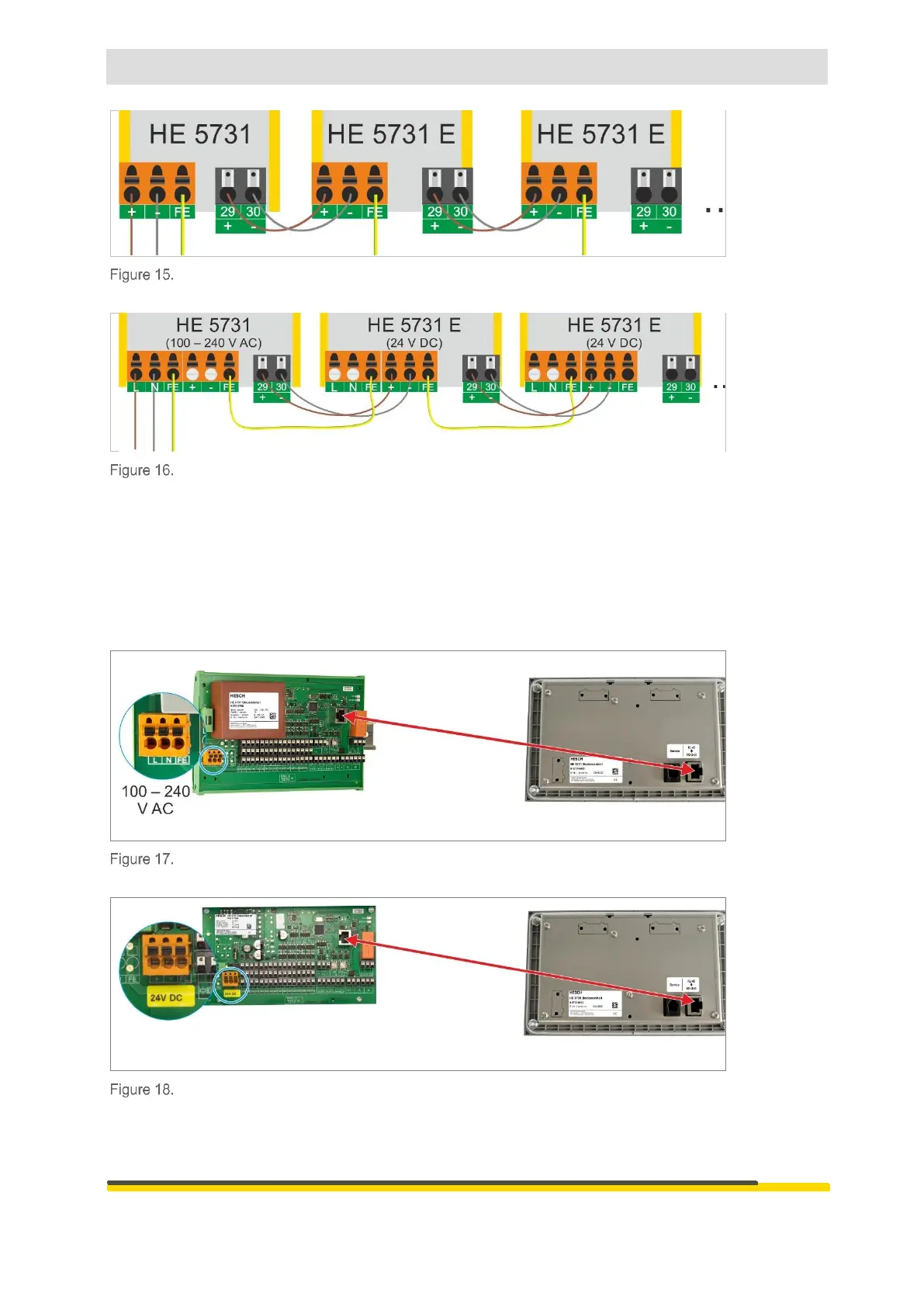

Electrical Commissioning
Connecting master device (24 V DC version) with extension unit (24 V DC)
Connecting master device (100…240 V AC version) with extension unit (24 V DC)
6.2.2. Panel mounting housing
The supply voltage is connected centrally at the control unit. The operating unit is con-
nected to the 24 V DC supply via a patch cable (CAT 5 or better). The patch cable must
not be longer than 100 metres. (Patch cable is not included in delivery).
Electrical commissioning of HE 5731 Modular (100…240 V AC)
Electrical commissioning of HE 5731 Modular (24 V DC)
Patch cable
(CAT 5 or higher)
max. 100 metres
Patch cable
(CAT 5 or higher)
max. 100 metres
▲Control unit
▲Operating unit
▲Control unit
▲Operating unit
