Drawer slides for wooden drawers
`Quadro
`Technical information
Adjustment possibilities - cabinet profile details
Advice
`Dimensions in millimeters (inch approximations as noted). Subject to technical modifications without notice.
Drawer adjustments: 1 mm (1/32”) (down)
3 mm (1/8”) (up)
9 mm (3/8”) (range in/out)
Trial recommended!
Adjustment influences minimum cabinet depth.
Detail A* Detail B*
Drawer adjustments: 1.5 mm (1/16”) (in)
2.5 mm (3/32”) (out)
4 mm (5/32”) (range in/out)
1
2
33
2
1

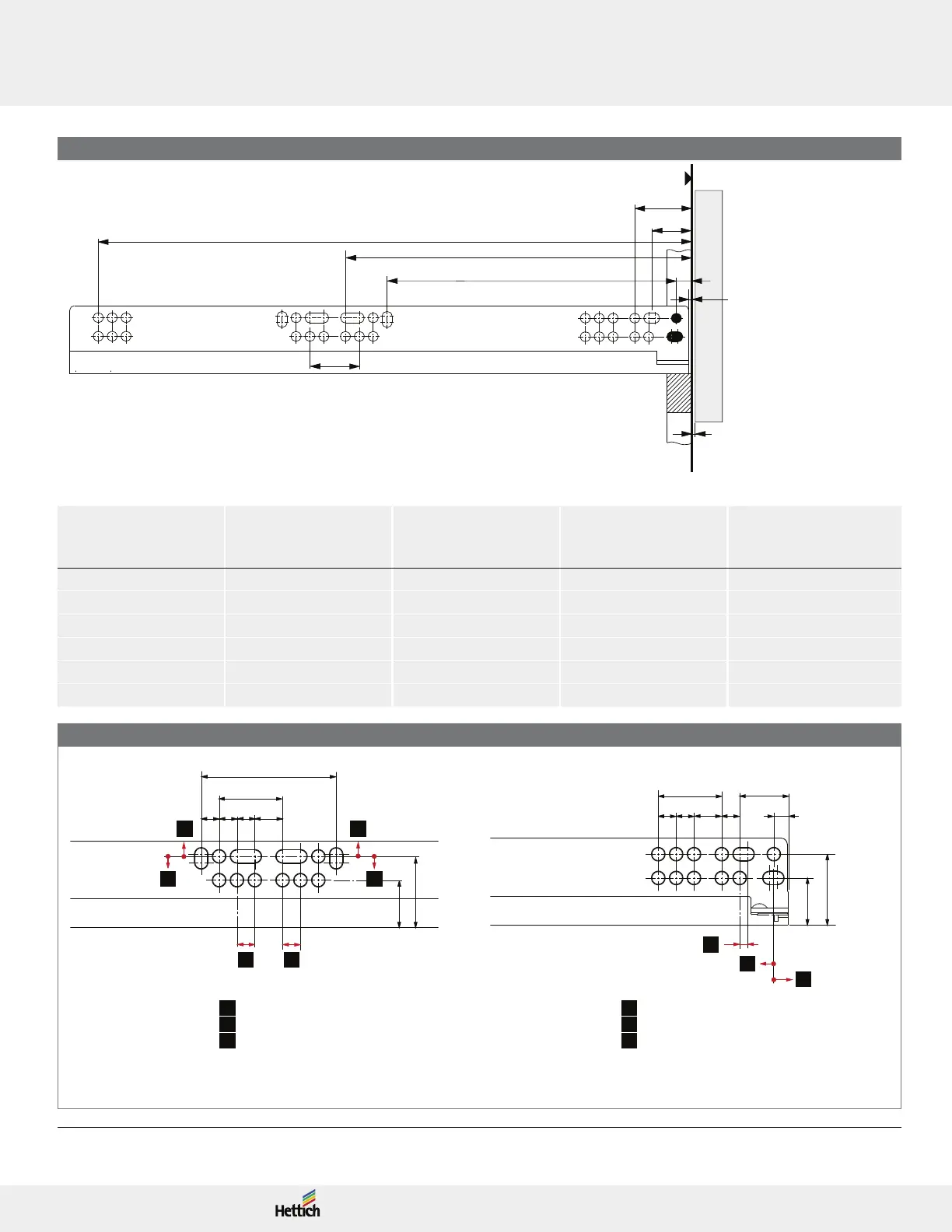

Mounting specifications – (Quadro V6 / Quadro 4D V6, face frame application)
Item A
mm (inch)
B
mm (inch )
C
mm (inch)
Minimum cabinet depth
(blocking or frameless cabinet)
mm (inch)
Quadro V6 9” 133 (5 1/4) 229 (9) 96 (3 25/32) 250 (9 7/8)
Quadro V6 12” 165 (6 1/2) 261 (10 1/4) 128 (5 1/32) 326 (12 7/8)
Quadro V6 15” 165 (6 1/2) 357 (14 1/16) 128 (5 1/32) 402 (15 7/8)
Quadro V6 18” 261 (10 1/4) 453 (17 13/16) 224 (8 13/16) 479 (18 7/8)
Quadro V6 21” 261 (10 1/4) 517 (20 3/8) 224 (8 13/16) 555 (21 7/8)
Quadro V6 24” 261 (10 1/4) 453 (17 13/16) 224 (8 13/16) 631 (24 7/8)
37 mm (1 7/16“)
10 mm (3/8“)
Setback 2 mm (3/32“)
A
B
32 mm
28 mm (1 3/32“)
Front gap 1.5 mm (1/16“)
C
Cabinet front edge

Hettich Quadro V6 Specifications

General

Load Capacity	30 kg
Drawer Extension	Full Extension
Material	Steel
Soft Close	Yes
Adjustability	Height
