Drawer slides for wooden drawers
`Quadro
`Technical information
Advice
`Dimensions in millimeters (inch approximations as noted). Subject to technical modifications without notice.

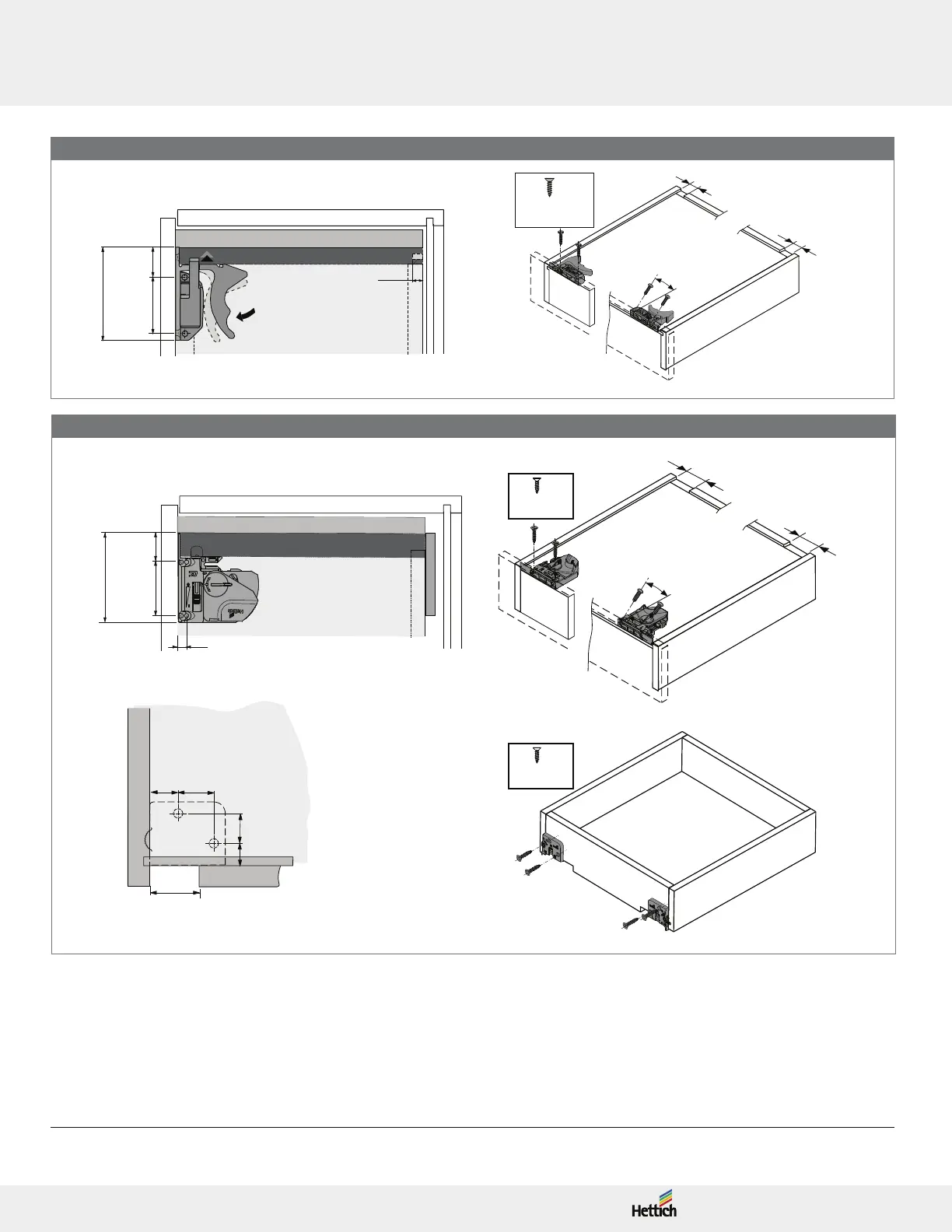

Catch for wooden drawers (Quadro V6 full extension)
10 mm
3/8“
80 mm
(3
3/16")
48 mm
(1
7/8")
26 mm
(1
1/32")
ø 3,5 x 20 mm
#6 x 3/4“
30 mm
(1
3/16")
30 mm
(1
3/16")
≤
30°
Catch and tilt adjuster for wooden drawers (Quadro 4D V6 full extension)
≤
30°
80 mm
(3
3/16")
26 mm
(1
1/32")
48 mm
(1
7/8")
7,5 mm
(5/16")
ø 3,5 x 20 mm
#6 x 3/4“
ø 4 x 12 mm
#6 x 1/2"
35 mm
(1
3/8")
35 mm
(1
3/8")
19 mm
(3/4")
25 mm
(1")
21 mm
(13/16")
15 mm
(19/32")
35 mm
(1
3/8")

Hettich Quadro V6 Specifications

General

Load Capacity	30 kg
Drawer Extension	Full Extension
Material	Steel
Soft Close	Yes
Adjustability	Height
