Unsupported Smart Array Controller cabling
configurations
NOTE: Using either of the Secondary I/O module drawers for Smart Array Controller cabling
is an unsupported configuration.
NOTE: Only one SAS port connection on each Primary I/O module is a supported
configuration. It is recommended to connect cables to SAS port 1 connectors.
NOTE: Cascading, directly connecting a cable from one Primary I/O module to the other
Primary I/O module, is an unsupported configuration.

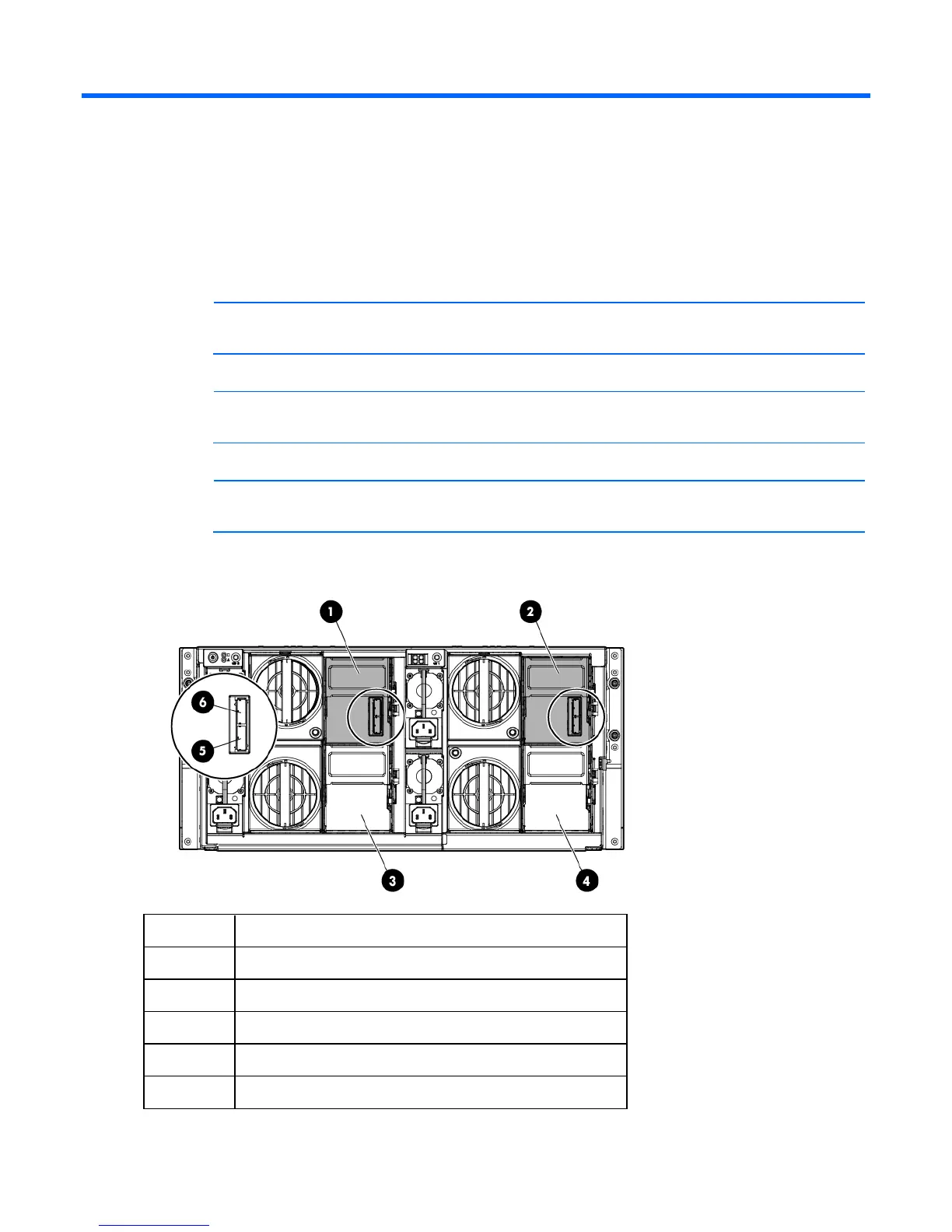

Item Description
1 Primary I/O module (MDS600 Drawer 2)
2 Primary I/O module (MDS600 Drawer 1)
3 Secondary I/O module (MDS600 Drawer 2)
4 Secondary I/O module (MDS600 Drawer 1)
5 SAS port 1 connector
