HEX Alton - Page 28

Assembly Guide
26
FK1

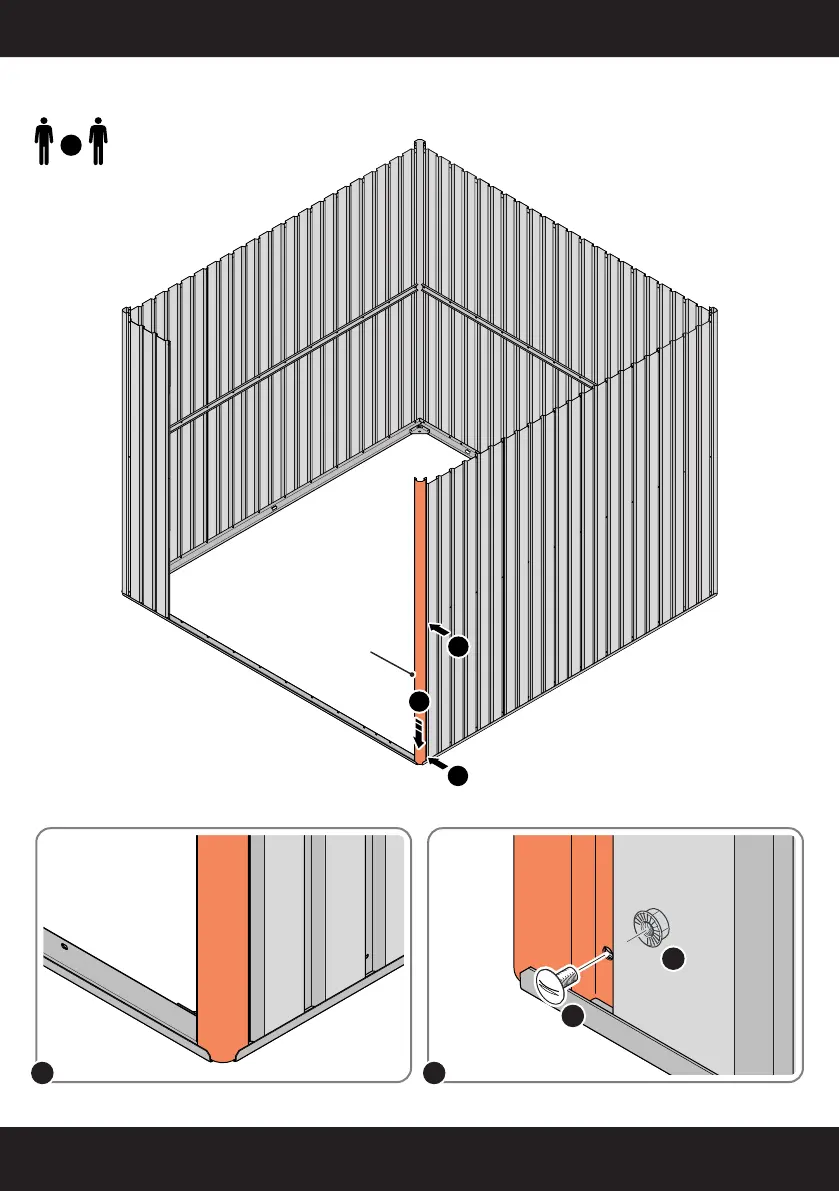

LOCATE CORNER POST 0205-14 AS SHOWN ABOVE.
IMPORTANT: DO NOT SECURE AT UPPER FIXING POINT AT THIS STAGE.
LOOSELY ATTACH CORNER POST AT x2 LOCATIONS INDICATED ONLY.
21A 21B
LOCATE AND LOOSELY ATTACH CORNER POST 0205-14.
x2
ASSEMBLY STAGE 21
FK5
0205-14
21A
21B
21B
