HEX Alton - Page 29

Assembly Guide
27
OUTSIDE
INSIDE
OUTSIDE
INSIDE
IMPORTANT: DO NOT SECURE ANY FIXING POINTS OTHER THAN THOSE INDICATED.
LOOSELY ATTACH WALL PANEL AT x2 LOCATIONS INDICATED ONLY.
FK1
22B

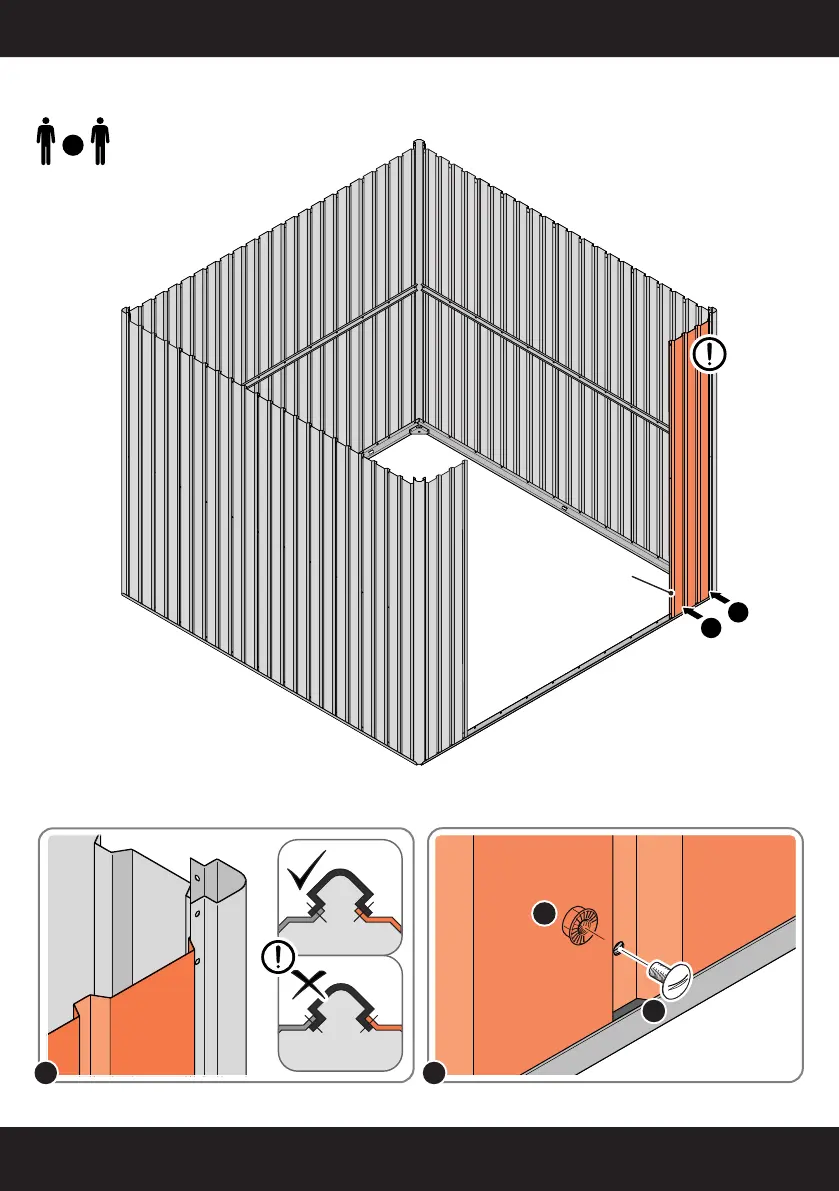

LOCATE WALL PANEL 0213-03 (1850 x 324mm) AS SHOWN ABOVE.
IMPORTANT: ENSURE PANEL IS IN THE CORRECT ORIENTATION.
LOCATE AND LOOSELY ATTACH WALL PANEL 0213-03 (1850 x 324mm).
x2
ASSEMBLY STAGE 22
FK5
22A
25A
22B
22B
0213-03
