HEX Alton - Door Installation and Hardware Fitting

Assembly Guide
28
FK1

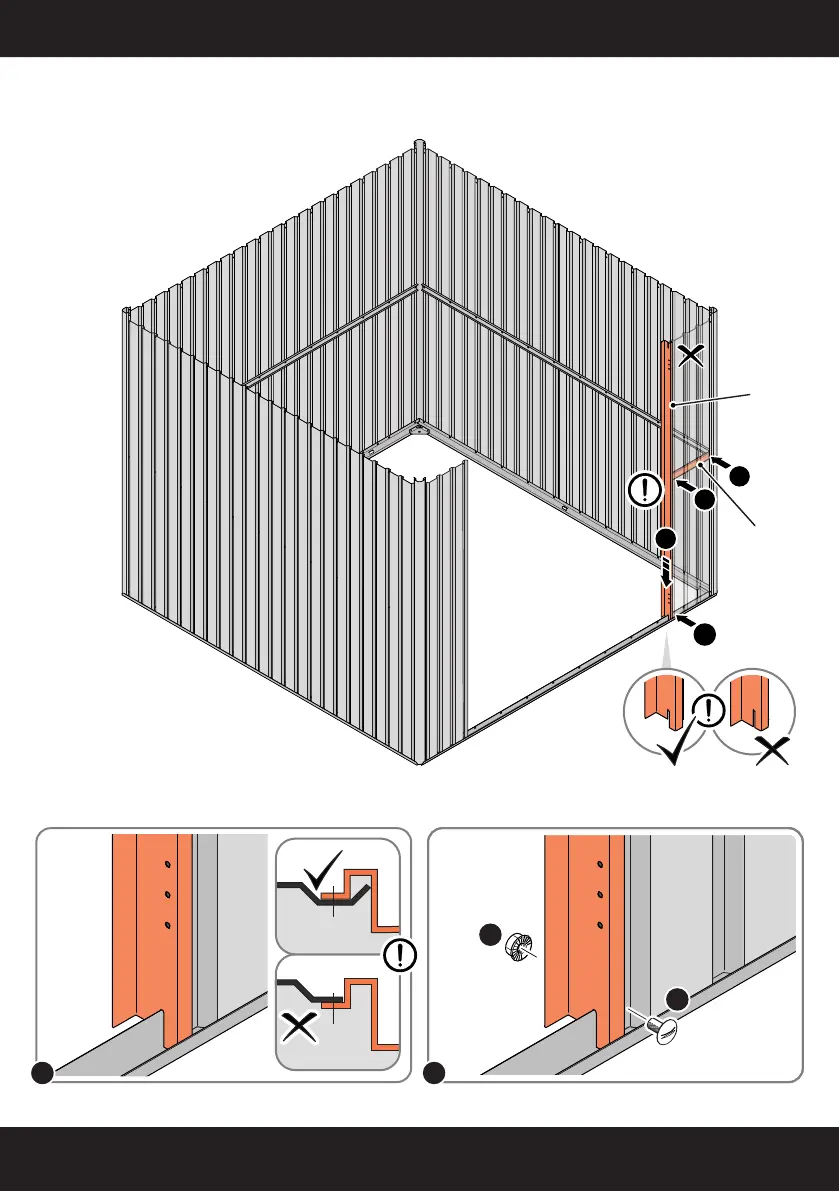

LOCATE RIGHT-HAND DOOR POST 0205-16 AS SHOWN ABOVE. SECURE DOOR POST AND CENTRE BRACE AT LOCATIONS INDICATED.
23B
IMPORTANT: DO NOT SECURE AT UPPER FIXING POINT AT THIS STAGE.IMPORTANT: ENSURE DOOR POST IS IN THE CORRECT ORIENTATION.
LOCATE AND LOOSELY ATTACH RIGHT-HAND DOOR POST 0205-16.
ASSEMBLY STAGE 23
FK5
INSIDE
OUTSIDE
OUTSIDE
INSIDE
23A
LOCATE AND LOOSELY ATTACH SHORT CENTRE BRACE 0213-04 ONTO WALL PANEL.
23A
0205-16
23B
23B
23B
0213-04
